Heat Pump Condensate Tray Freeze Protection: Silicone Heater Solutions for Reliable Winter Operation

During winter operation, air source heat pumps regularly enter defrost cycles to remove frost from the outdoor coil. The melted frost becomes condensate water, which is collected in the drain pan (condensate tray) beneath the unit.

When outdoor temperatures remain below freezing, this water may freeze before it can drain away. Ice accumulation can block drainage channels, overflow into surrounding components, and eventually interfere with normal system operation.

In colder climates, repeated freeze-thaw cycles can lead to increased maintenance requirements, reduced operational reliability, and unexpected system downtime.

Common freeze-related issues include:

• Ice blocking the drain outlet

• Water overflowing from the condensate tray

• Ice accumulation around the outdoor unit

• Reduced effectiveness of defrost cycles

• Increased winter maintenance costs

A properly designed condensate tray heater helps maintain a clear drainage path and supports reliable heat pump operation throughout the heating season.

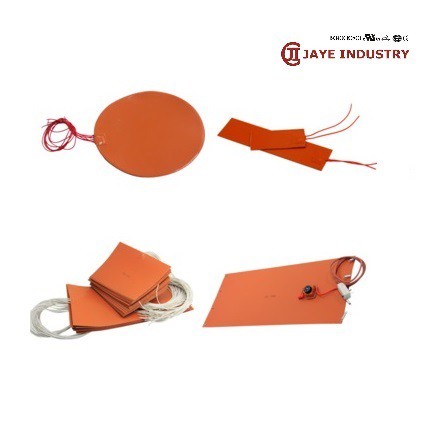

Unlike traditional tubular heaters or heating rods, silicone rubber heaters provide surface heating exactly where freeze protection is needed.

Their flexible construction allows them to conform to irregular drain pan shapes while delivering uniform heat distribution across the entire heating area.

Silicone Heater vs. Traditional Heating Solutions

For heat pump manufacturers, silicone heaters offer an efficient way to add freeze protection without significantly increasing equipment size or complexity.

Reliable Freeze Protection

By maintaining the condensate tray above freezing temperatures, the heater helps prevent ice formation and ensures uninterrupted drainage.

Energy-Efficient Operation

Instead of heating a large area, silicone heaters apply heat only where it is required. Typical freeze-protection systems often operate at relatively low power levels, depending on tray size and environmental conditions.

Easy Integration into OEM Equipment

The heater can be supplied in custom dimensions, voltages, and power ratings to match existing heat pump designs.

Long-Term Durability in Outdoor Conditions

Silicone rubber materials offer excellent resistance to moisture, UV exposure, temperature fluctuations, and the mildly acidic condensate commonly found in HVAC systems.

Different drain pan materials and equipment layouts require different installation methods.

For Metal Condensate Trays

Self-adhesive silicone heaters are commonly installed on the underside of the tray, providing efficient heat transfer while keeping the heater protected from direct water contact.

For Plastic Drain Pans

Lower watt-density designs are typically recommended to avoid excessive localized temperatures that could deform plastic components.

Integrated OEM Designs

For new equipment development, heaters can be incorporated directly into the tray assembly and connected to the unit's control system.

Temperature-Controlled Solutions

Systems may use:

• Integrated bimetal thermostats

• NTC temperature sensors

• RTD sensors

• External temperature controllers

• Heat pump main control boards

For maximum energy efficiency, many manufacturers integrate the heater into the heat pump's control logic rather than using continuous operation.

To recommend an appropriate heating solution, the following information is typically required:

Basic Application Information

• Condensate tray dimensions

• Tray material

• Installation location

• Minimum ambient temperature

• Indoor or outdoor application

Electrical Requirements

• Supply voltage

• Available power capacity

• Required heating performance

Control Requirements

• Thermostat control

• Sensor feedback

• Main controller integration

• Thermal protection requirements

Environmental Requirements

• Moisture exposure level

• UV exposure

• Required IP protection level

• Expected service life

Providing these details allows engineers to determine the appropriate heater size, power output, and control strategy for the application.

Depending on project requirements, silicone rubber heaters can be manufactured with:

• 12V, 24V, 48V, 120V, 220V, 230V, or 240V operation

• Custom dimensions and irregular shapes

• Adhesive backing

• Waterproof lead exits

• Integrated thermostats

• Thermal cut-offs

• NTC or RTD sensors

• Moisture-resistant construction

Available specifications should always be confirmed according to the actual operating conditions of the equipment.

For HVAC and heat pump manufacturers supplying global markets, compliance requirements are often an important consideration.

Depending on project requirements, silicone heater assemblies may be designed to support:

• CE compliance

• RoHS requirements

• UL-recognized components

• IP-rated protection solutions

• Thermal safety protection devices

Specific certifications and protection levels should be evaluated according to the target market and product design.

In addition to heat pump freeze protection, silicone rubber heaters are widely used in:

• HVAC condensate management systems

• Refrigeration drain pans

• Battery energy storage cabinets

• Outdoor electrical enclosures

• Water treatment equipment

• Industrial control cabinets

• Laboratory equipment

Their flexibility and custom design capability make them suitable for many anti-condensation and freeze-protection applications.

>Can the Silicone Heater Be Cut on Site?

No. Silicone heaters contain internal heating circuits designed for a specific shape and power distribution. Cutting the heater will damage the circuit and prevent normal operation.

Custom shapes and dimensions should be specified during the design stage.

>Will Condensate Water Damage the Heater?

No. Silicone rubber offers excellent resistance to moisture and the mild acidity commonly present in HVAC condensate.

When combined with sealed lead exits and appropriate installation methods, the heater provides reliable long-term performance in outdoor environments.

>Do I Need a Separate Temperature Controller?

Not necessarily.

Many applications use integrated thermostats that automatically switch ON and OFF within a predetermined temperature range.

For greater efficiency, the heater can also be connected directly to the heat pump's control system.

>Will the Heater Affect Heat Pump Efficiency?

A properly sized condensate tray heater generally has minimal impact on overall system efficiency while helping prevent freeze-related operational issues and maintenance events.

>What Is the Expected Service Life?

Service life depends on operating conditions, control strategy, installation quality, and environmental exposure.

When properly designed and operated within specification, silicone rubber heaters can provide reliable long-term freeze protection for heat pump systems.

Every heat pump platform has unique tray geometries, power requirements, and control strategies.

As a professional silicone heater manufacturer, Jaye Heater provides custom condensate tray heating solutions tailored to OEM and industrial applications, including custom dimensions, voltage options, integrated sensors, thermostatic control, and environmental protection features.

If you can provide tray drawings, operating temperature requirements, and electrical specifications, our engineering team can assist with heater selection and design recommendations.
