How to Properly Use and Maintain Water Heater Elements?

Electric water heater elements are essential components in residential, commercial, and industrial water heating systems. These heating tubes convert electrical energy into thermal energy through resistance heating, efficiently raising water temperature for various applications. Understanding proper usage protocols, maintenance requirements, and potential failure modes is crucial for ensuring safe operation, maximizing efficiency, and extending the operational lifespan of these critical components.

This guide provides comprehensive technical guidance on the correct installation, operation, and maintenance of water heater elements, with particular emphasis on the two primary factors that significantly impact performance and longevity: immersion level management and water quality considerations. By implementing the practices outlined in this document, users can achieve optimal heating performance while minimizing the risk of premature failure, safety hazards, and energy waste.

Proper installation and adherence to fundamental operating principles form the foundation for reliable water heater element performance. The following precautions must be observed throughout the element's service life:

2.1 Immersion Level Requirements

Absolute Requirement: The entire heating surface area of the element must remain fully submerged in water during operation

Verification Protocol: Before energizing the heating element, visually confirm that water level exceeds the topmost heating surface by at least 2-3 inches (5-7.5 cm)

Automatic Shut-off Systems: Install or verify the functionality of low-water cutoff devices or float switches that prevent operation when water levels drop below safe thresholds

2.2 Water Quality Specifications

Total Dissolved Solids (TDS): Monitor water hardness levels; water with TDS exceeding 500 ppm requires additional treatment or more frequent maintenance

pH Range: Maintain water pH between 6.5 and 8.5 to minimize corrosive effects

Impurity Control: Use sediment filters for water sources with high particulate content

2.3 Electrical Safety Measures

Grounding: Ensure proper grounding of the heating element and associated electrical connections

Circuit Protection: Install appropriately rated circuit breakers or fuses to prevent electrical overload

Insulation Integrity: Regularly inspect electrical insulation and connections for signs of degradation

2.4 Operational Monitoring

Temperature Control: Use thermostats with appropriate temperature limits (typically 140-160°F/60-71°C for residential applications)

Pressure Relief: Verify pressure relief valve functionality to prevent overpressure conditions

Regular Inspection: Conduct visual inspections of the heating element and surrounding components at least quarterly

Dry burning represents one of the most common and destructive failure modes for water heater elements. This condition occurs when the heating surface loses contact with water, leading to catastrophic temperature increases and component failure.

3.1 The Physics of Heat Transfer Failure

Water serves as the primary heat transfer medium, absorbing thermal energy from the element's surface through convection and conduction. When the heating surface becomes exposed to air, the heat transfer coefficient drops dramatically-air transfers heat approximately 25 times less efficiently than water. This thermal insulation effect causes the element's surface temperature to rise rapidly.

3.2 Temperature Escalation Mechanism

Without adequate cooling from water, the heating element's surface temperature can exceed 1,000°F (538°C) within seconds. This extreme temperature:

Causes rapid oxidation and degradation of the heating element's protective sheath material

Transfers heat inward to the resistance wire, potentially reaching temperatures that exceed the wire's melting point

Creates thermal stress that can crack or warp the element structure

3.3 Consequences of Dry Burning

Immediate Damage: The resistance wire may melt or break, rendering the element inoperable

Sheath Damage: The protective metal sheath can develop cracks, pinholes, or complete failure

Electrical Hazard: Compromised insulation can lead to electrical leakage or short circuits

Safety Risk: In severe cases, the element may rupture, potentially causing water damage or personal injury

3.4 Prevention Strategies

Automatic Protection: Install low-water cutoff devices that de-energize the element when water levels drop

Manual Verification: Always confirm water level before turning on the heating system

System Design: Ensure proper tank sizing and element positioning to prevent exposure during normal operation

Water composition significantly influences heating element performance, maintenance requirements, and service life. Hard water, characterized by high mineral content, presents particular challenges.

4.1 Scale Formation Process

When water containing dissolved calcium and magnesium carbonates is heated, these minerals precipitate out of solution and deposit on heating surfaces. This process accelerates as temperature increases, with deposition rates typically doubling for every 18°F (10°C) temperature rise above 140°F (60°C).

4.2 Scale Composition and Properties

The primary component of scale is calcium carbonate (CaCO₃), though magnesium compounds and other minerals may also contribute. Scale deposits:

Exhibit low thermal conductivity (approximately 1-2 W/m·K compared to 50-60 W/m·K for metal surfaces)

Act as an insulating layer that impedes heat transfer

Can reach thicknesses of several millimeters over time

4.3 Corrosive Effects of Scale

Beyond thermal insulation, scale deposits can accelerate corrosion through several mechanisms:

Under-deposit Corrosion: Trapped water beneath scale layers can become concentrated with corrosive ions

Differential Aeration Cells: Variations in oxygen concentration beneath scale deposits create localized corrosion cells

Chemical Attack: Scale can trap aggressive ions (chlorides, sulfates) that attack the protective oxide layer on metal surfaces

4.4 Scale-Related Failure Modes

Overheating: Insulating scale layers cause the element to operate at higher temperatures, potentially exceeding design limits

Corrosion Penetration: Localized corrosion can create pinholes in the protective sheath, leading to electrical leakage

Mechanical Failure: Thick scale deposits can cause thermal stress cracking or element warping

Efficiency Loss: Scale buildup reduces heat transfer efficiency, increasing energy consumption

4.5 Water Hardness Classification

Soft Water: 0-60 ppm (0-3.5 grains per gallon)

Moderately Hard: 61-120 ppm (3.5-7.0 gpg)

Hard: 121-180 ppm (7.0-10.5 gpg)

Very Hard: >180 ppm (>10.5 gpg)

The choice of heating element sheath material directly impacts resistance to scale-related corrosion, chemical attack, and overall durability.

5.1 Common Sheath Materials

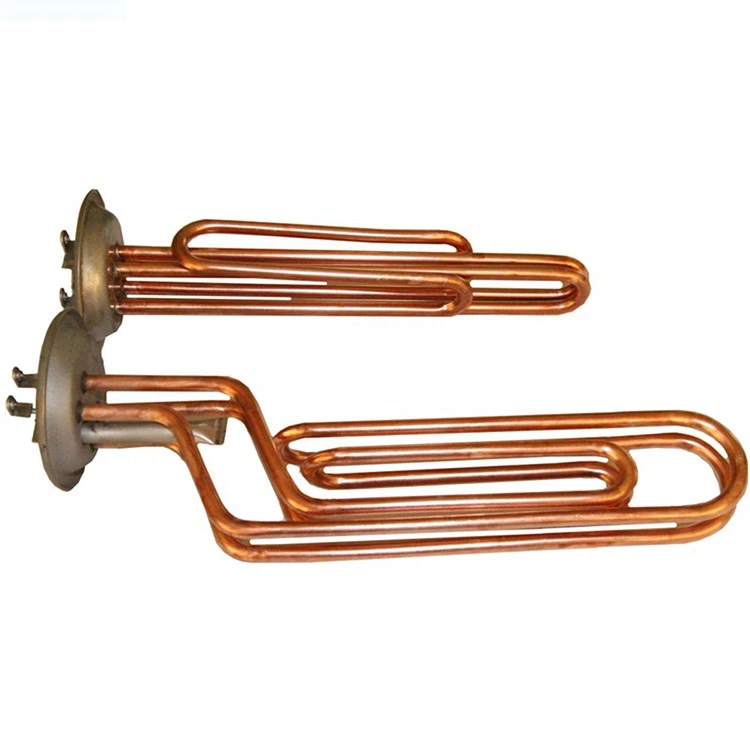

Copper: Good thermal conductivity but susceptible to corrosion in certain water conditions; typically used for lower-temperature applications

Stainless Steel (304/316): Offers good corrosion resistance; 316 grade provides better resistance to chlorides and sulfates

Incoloy 800/825: Nickel-chromium alloys with excellent high-temperature strength and corrosion resistance

Titanium: Superior corrosion resistance in chloride environments but higher cost

5.2 Material Selection Criteria

Water Chemistry: Consider pH, chloride content, oxygen levels, and other aggressive ions

Temperature Range: Higher temperatures require materials with better oxidation resistance

Cost Considerations: Balance initial cost against expected service life and maintenance requirements

Application Requirements: Commercial vs. residential, continuous vs. intermittent operation

5.3 Material Performance Comparison

5.4 Coating Technologies

Some heating elements feature specialized coatings (Teflon, ceramic) that reduce scale adhesion and improve corrosion resistance. These coatings can extend service life in challenging water conditions but may have temperature limitations.

Proactive maintenance is essential for maximizing heating element performance and preventing premature failure.

6.1 Descaling Procedures

Frequency: Descaling frequency depends on water hardness; typically every 6-12 months for hard water, 12-24 months for moderately hard water

Chemical Descaling: Use commercial descaling solutions or citric acid solutions following manufacturer instructions

Mechanical Cleaning: For accessible elements, gentle brushing can remove loose scale deposits

Safety Precautions: Always de-energize and isolate the heating element before cleaning

6.2 Inspection Schedule

Monthly: Visual check for leaks, unusual noises, or performance issues

Quarterly: Test safety devices (pressure relief valve, temperature limit switches)

Annually: Comprehensive inspection including element resistance measurement and visual examination

6.3 Performance Monitoring

Heating Time: Monitor time required to heat water; increasing times may indicate scale buildup

Energy Consumption: Rising energy bills without increased usage can signal efficiency loss

Water Temperature: Inconsistent temperature output may indicate element problems

6.4 Replacement Indicators

Visible Damage: Cracks, pitting, or significant corrosion on the element surface

Electrical Issues: Ground fault indications, circuit breaker tripping

Performance Decline: Inability to reach set temperature or excessive heating times

Age: Consider replacement after 5-10 years depending on water conditions

7.1 No Heat Output

Possible Causes: Burned-out element, faulty thermostat, tripped circuit breaker

Diagnosis: Check for voltage at element terminals, measure element resistance

Resolution: Replace element if resistance is infinite (open circuit)

7.2 Slow Heating

Possible Causes: Scale buildup, low voltage, undersized element

Diagnosis: Inspect for scale, check voltage at element, verify element wattage

Resolution: Descale element, check electrical connections, verify proper sizing

7.3 Leaking Element

Possible Causes: Corrosion pinholes, gasket failure, cracked flange

Diagnosis: Visual inspection, pressure test

Resolution: Replace element immediately; do not operate with leaks

7.4 Tripping Circuit Breaker

Possible Causes: Ground fault, short circuit, overload

Diagnosis: Measure insulation resistance, check for water intrusion

Resolution: Replace element if insulation resistance is low

8.1 Electrical Safety

Always disconnect power before servicing the heating element

Use lockout/tagout procedures for commercial installations

Verify power is off using a voltage tester before touching electrical connections

8.2 Thermal Safety

Heating elements and surrounding components can remain hot long after power is removed

Allow adequate cooling time before handling

Use appropriate personal protective equipment (insulated gloves, safety glasses)

8.3 Water System Safety

Relieve pressure before opening the water heater tank

Be aware of potential scalding from hot water

Ensure pressure relief valve is functional

8.4 Emergency Response

Electrical Shock: Immediately disconnect power, do not touch victim while energized, call emergency services

Water Leak: Shut off water supply and power, contain water if possible

Overheating: Shut off power, allow system to cool, investigate cause

9.1 Energy Efficiency Impact

Scale buildup can reduce heating efficiency by 15-30%, significantly increasing energy costs. Regular maintenance and proper water treatment can maintain optimal efficiency.

9.2 Lifecycle Cost Analysis

While higher-quality materials and water treatment systems have higher initial costs, they often provide better long-term value through extended service life and reduced energy consumption.

9.3 Environmental Impact

Water Waste: Frequent element replacement and maintenance can increase water consumption

Energy Waste: Inefficient heating increases carbon footprint

Material Disposal: Proper disposal of heating elements and scale treatment chemicals is important

To maximize the service life and performance of water heater elements, adhere to these fundamental practices:

• Maintain Proper Immersion: Never operate the heating element without complete water coverage
• Address Water Quality: Use water softeners or treatment systems in hard water areas
• Implement Regular Maintenance: Schedule descaling and inspections based on water conditions
• Select Appropriate Materials: Choose corrosion-resistant materials suited to your water chemistry
• Monitor Performance: Track heating times and energy consumption to detect issues early
• Prioritize Safety: Follow electrical and thermal safety protocols during all operations

By understanding the interaction between water quality, heat transfer principles, and material properties, users can significantly extend the operational life of water heater elements while ensuring safe, efficient operation.
