Introduction: The Hidden Safety Risk in Labs
In medical laboratories or blood banks, blood tubes often undergo external drying to remove residual moisture or condensation before labeling and analysis.
However, traditional heating solutions carry a hidden but serious risk: tube melting.
If the temperature control system fails or the heating element runs at full power continuously, plastic blood tubes can easily deform. Melted tubes not only ruin expensive analyzers but also compromise sample integrity and patient safety.
This is where PTC self-regulating heaters - like those manufactured by JAYE HEATER - provide a critical advantage.

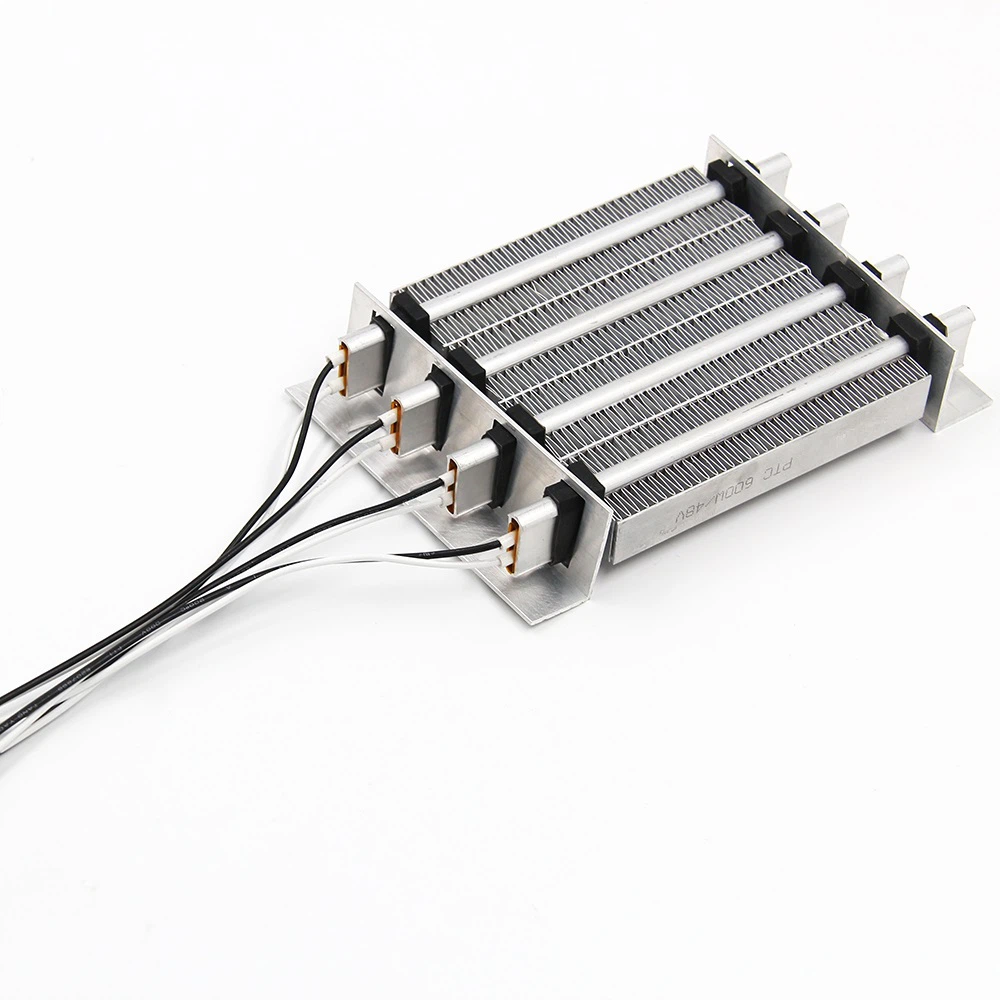

How Does a PTC Heater Self-Regulate?
PTC stands for Positive Temperature Coefficient. Unlike traditional metal heating elements (such as nickel-chromium wires), a PTC heating element is made of specialized ceramic materials whose resistance increases sharply as temperature rises.
Here's the self-regulating mechanism in action:
At low temperature → Low resistance → High current → Rapid heating
As temperature approaches the designed Curie point → Resistance increases → Current decreases
At the target temperature → Near-zero current → Heat output stops automatically
If cooling occurs → Resistance drops → Current resumes → Heating restarts
No external thermostats, no feedback controllers - the PTC element regulates itself physically.
Why This Prevents Blood Tube Melting During Drying
In blood tube drying applications (e.g., in washers, dryers, or storage cabinets), several factors make PTC heaters the safer choice:
| Risk Factor | Traditional Heating (Fixed Resistance) | PTC Self-Regulating Heater |
|---|---|---|
| Airflow blockage (tubes blocking vents) | Element overheats → Tube melting | Resistance increases → Power drops automatically → No overheating |
| Thermostat failure | Continuous full-power heating → Meltdown risk | Built-in self-limiting → Cannot exceed max temperature |
| Uneven tube loading | Hot spots develop → Local melting | Self-balancing across surface → Uniform temperature |
| Sensor drift | Requires external thermocouple/RTD | No external sensor needed for basic safety |
Key takeaway: A PTC heater cannot exceed its designed cutoff temperature - even if left running in still air or with blocked airflow. That means the plastic blood tube (typically PP, PS, or PET with melting points above 130–160°C) stays well within its safe temperature range.
Real-World Example: Drying Racks for Blood Collection Tubes
Imagine a drying rack holding 100 blood tubes after washing. A conventional heater at the bottom blows warm air upward. If a technician places a solid tray on top - blocking airflow - the heater's surface temperature can skyrocket.
Traditional nichrome heater: Surface temperature rises until something melts (tubes, racks, or wiring).
JAYE HEATER PTC unit: Temperature rises slightly above the Curie point, resistance jumps, and power drops to near zero - no melting, no fire risk.
After the obstruction is removed, the PTC element cools, resistance falls, and normal heating resumes - all automatically.
Why JAYE HEATER for Blood Tube Drying Applications?
As a specialized PTC manufacturer, JAYE HEATER provides:
- Custom Curie point temperatures tailored to your drying process (e.g., 80°C, 100°C, or 120°C limits)
- Low surface temperature designs specifically for medical plastics
- RoHS & safety compliance for laboratory equipment
- Long lifetime - no contact wear from mechanical thermostats
- Energy efficiency - only draws power when heat is needed
PTC = Inherent Safety
For medical drying applications where tube melting is unacceptable, PTC self-regulating technology offers inherent protection - not just software alarms or backup sensors.
By switching to JAYE HEATER PTC solutions, medical device manufacturers and lab equipment engineers can eliminate a major failure mode while simplifying system design.
Looking for a safe, self-regulating heating solution for tube drying or other medical applications?
Contact JAYE HEATER - we engineer PTC safety into every product.
