How to Choose the Right Sheath Material for Tubular Heating Elements?
The sheath material of a tubular heating element affects its corrosion resistance, operating temperature capability, durability, and suitability for different heating environments. Stainless steel is commonly used for general industrial heating, while nickel-based alloys such as Incoloy may be preferred for applications involving higher temperatures or more demanding operating conditions.
Choosing the right material requires considering the medium being heated, operating temperature, pressure, chemical exposure, and expected service life. The most expensive material is not always the best choice; the goal is to match the sheath material to the actual application.
What Materials Are Commonly Used for Tubular Heating Elements?

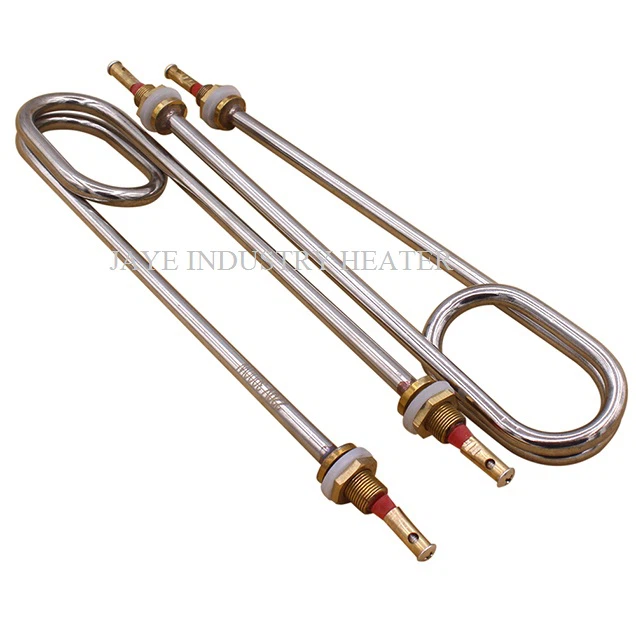

Tubular heating elements typically consist of a resistance wire surrounded by electrical insulation and enclosed in a metal sheath. The sheath protects the internal components and transfers heat to the surrounding medium.
Common sheath materials include stainless steel, Incoloy alloys, and other metals selected for specific operating conditions.
| Sheath Material | Main Characteristics | Typical Applications |
|---|---|---|
| Stainless Steel 304 | General corrosion resistance and broad industrial use | Air heating, ovens, and general-purpose equipment |
| Stainless Steel 316 | Improved resistance to many corrosive environments compared with 304 | Selected chemical, food-processing, and industrial applications |
| Incoloy Alloys | Suitable grades offer good high-temperature strength and oxidation resistance | Industrial furnaces, high-temperature air heating, and demanding process heating |
| Copper | High thermal conductivity, but limited suitability for some corrosive or high-temperature environments | Selected water-heating applications |
Material performance depends on the exact alloy grade, operating temperature, medium, and service conditions. For example, stainless steel 316 is not resistant to every chemical, and not every Incoloy grade has the same temperature capability.
How Do You Select a Sheath Material for Different Applications?
- For air heating: Stainless steel may be suitable for many standard HVAC systems, electric duct heaters, and industrial air-heating applications. Higher-temperature environments may require a different alloy.
- For water heating: The material must be compatible with water chemistry, including mineral content, chloride concentration, and other potential sources of corrosion or scale.
- For oil and chemical heating: The sheath material should be checked against the specific fluid composition and operating temperature. Chemical compatibility should not be assumed from the material name alone.
- For high-temperature applications: Consider oxidation resistance, mechanical strength, sheath temperature, and the thermal limits of the complete heating element.
Stainless Steel vs. Incoloy: Which Is Better?
Neither material is universally better. Stainless steel is often a practical choice for general industrial applications, while suitable Incoloy grades may offer advantages under certain high-temperature or corrosive conditions.
The selection should be based on the actual operating environment rather than temperature alone. Heat flux, surface temperature, chemical exposure, and expected service life can all affect material performance.
FAQ
1. Is stainless steel suitable for all tubular heating elements?
No. Stainless steel is suitable for many applications, but the correct grade depends on temperature, corrosion exposure, and the medium being heated.
2. When should Incoloy be considered?
Suitable Incoloy grades may be considered for high-temperature applications or environments where their oxidation resistance and mechanical properties provide an advantage.
3. Does sheath material affect heater life?
Yes. Corrosion, oxidation, overheating, and material incompatibility can shorten heater life. Correct material selection should be combined with appropriate watt density and operating conditions.
4. Can I choose a sheath material based only on the maximum temperature?
No. The heating medium, chemical exposure, heat-transfer conditions, and expected service life should also be considered.
