Introduction
PI (Polyimide) Adhesive Film Heaters are thin, flexible electric heating elements widely used for temperature maintenance, anti-condensation, anti-freezing, and thermal management in electrical equipment. Due to their excellent thermal stability, lightweight construction, and efficient heat transfer characteristics, PI film heaters have become a preferred heating solution for industrial control cabinets, communication equipment, battery systems, instrumentation, and outdoor electrical enclosures.

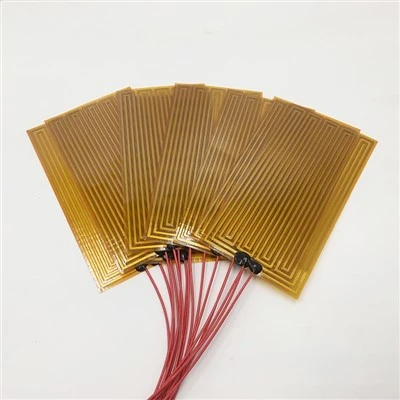

Structure of a PI Adhesive Film Heater
A typical PI adhesive heater consists of:
Polyimide Insulation Layer
High dielectric strength
Excellent temperature resistance
Flexible and lightweight
Resistance Heating Element
Etched foil or wire circuit
Customized power density and heating pattern
Uniform heat distribution
Pressure-Sensitive Adhesive Layer
Provides direct bonding to equipment surfaces
Minimizes thermal resistance
Improves heat transfer efficiency
Lead Wires and Connector
Supply electrical power
Can be customized for various installation requirements
Application in Electrical Equipment Heating
Anti-Condensation Protection
Electrical cabinets installed in outdoor or humid environments often experience condensation due to temperature fluctuations. Moisture accumulation can lead to:
- Insulation degradation
- Corrosion of electrical components
- Short circuits
- Equipment failure
PI film heaters maintain the internal temperature above the dew point, preventing moisture condensation and ensuring reliable equipment operation.
Anti-Freezing Protection
For equipment operating in cold climates, PI heaters prevent freezing of:
- Sensors
- Control instruments
- Valves
- Battery systems
- Communication devices
- Maintaining a minimum operating temperature improves system reliability and startup performance.
Temperature Stabilization
Sensitive electrical and electronic components often require stable operating temperatures. PI heaters help maintain a controlled thermal environment, reducing performance variations caused by low ambient temperatures.
Advantages of PI Adhesive Film Heaters
Ultra-Thin Design
Typical thickness ranges from 0.15 mm to 0.5 mm, allowing installation in compact spaces without affecting equipment dimensions.
Uniform Heating
The etched foil design ensures even heat distribution, eliminating hot spots and improving heating efficiency.
Fast Thermal Response
Low thermal mass enables rapid heating and precise temperature control.
Excellent Reliability
Polyimide material can withstand continuous operating temperatures up to 200°C and offers excellent electrical insulation properties.
Energy Efficiency
Direct surface bonding minimizes heat loss and maximizes heat transfer efficiency.
Flexible Customization
PI heaters can be customized in:
- Voltage (12V, 24V, 48V, 110V, 220V, etc.)
- Power
- Shape and dimensions
- Temperature sensors (NTC, RTD, Thermostat)
- Connector types
Conclusion
PI Adhesive Film Heaters provide a compact, reliable, and energy-efficient solution for electrical equipment heating. By converting electrical energy into uniform surface heat, they effectively prevent condensation, freezing, and temperature-related performance issues. Their thin profile, flexible installation, and customizable design make them ideal for modern electrical and electronic systems requiring precise thermal management.
