IBC tanks are widely used for storing and transporting liquids and semi-solid materials. However, some materials become highly viscous or difficult to discharge when exposed to low temperatures. Aluminum foil heaters provide a practical surface-heating solution that can help maintain the required material temperature while minimizing unnecessary energy consumption.
By combining a thin heating structure, good heat distribution, customized heating areas, and temperature control, aluminum foil heaters can improve the efficiency of IBC tank heating for a variety of industrial materials.
Why Is Efficient IBC Tank Heating Important?
Many materials stored in IBC tanks are sensitive to temperature changes. As temperature decreases, some liquids can become more viscous, while others may partially solidify.
This can make it more difficult to:
- Pump the material
- Discharge the IBC
- Transfer the material
- Maintain consistent processing conditions
- Prevent freezing or solidification
An efficient heating system should provide enough heat to maintain the required temperature without continuously applying excessive power.
1. Direct Surface Heating Improves Heat Transfer

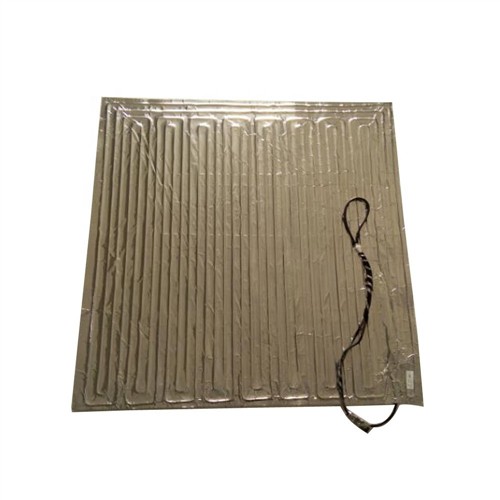

An aluminum foil heater is installed directly against the surface of the IBC tank.
When electrical current passes through the resistance heating element, heat is generated and distributed through the aluminum foil. The heat then transfers through the tank wall to the material inside.
The process can be simplified as:
Electrical energy → Heating element → Aluminum foil → IBC wall → Material
Because the heater is positioned close to the tank surface, it can provide targeted heat without requiring the heating element to be immersed directly in the material.
2. Aluminum Foil Helps Spread Heat
Aluminum has good thermal conductivity, allowing heat to spread across the heater surface.
This is useful for IBC heating because concentrated heat in a small area can create localized hot spots, while the rest of the material remains relatively cool.
A properly designed aluminum foil heater can distribute heat over a larger surface area, helping provide more consistent heating.
However, heat uniformity also depends on the heater's watt density, heating area, installation method, tank material, and insulation.
3. Customized Heating Areas Reduce Unnecessary Energy Use
Not every IBC application requires the entire container to be heated.
For example, when the main concern is material discharge, heating may be concentrated around the bottom section or outlet area.
An aluminum foil heater can be customized to provide heating exactly where it is needed.
This can help avoid heating areas that have little effect on the actual application.
Typical customized heating locations include:
- IBC bottom
- Lower sidewall
- Outlet area
- Valve area
- Specific sections of the container
Targeted heating can be particularly useful for high-viscosity materials.
4. Thin Construction Requires Less Installation Space
Aluminum foil heaters have a low-profile structure, making them suitable for applications where installation space is limited.
Compared with larger external heating systems, a thin surface heater can be integrated closely with the IBC container.
This can be advantageous when the heating system needs to:
- Take up minimal space
- Add little weight
- Fit around existing components
- Match a customized container structure
5. Temperature Control Prevents Overheating
Heating efficiency is not only about how quickly the material is heated. Temperature control is equally important.
A thermostat or temperature sensor can monitor the material or tank temperature and control the heater.
For example:
Temperature below set point → Heater ON
Temperature reaches set point → Heater OFF
Temperature falls again → Heater ON
This prevents the heater from operating continuously when heating is not required.
For more precise applications, a PT100 sensor and temperature controller can be used.
6. Insulation Helps Retain Heat
Even an efficient heating element can lose energy if the IBC tank is poorly insulated.
An insulation layer can be added around the heated area to reduce heat loss to the surrounding environment.
The combination of:
Aluminum Foil Heater + Insulation + Temperature Control
can help maintain the desired temperature with less frequent heater operation.
This is especially important when IBC tanks are stored or transported in cold environments.
7. Suitable for High-Viscosity Materials
One of the key applications of IBC heating is maintaining the flowability of viscous materials.
Examples include:
- Bitumen
- Oils
- Resins
- Adhesives
- Waxes
- Greases
As temperature increases, the viscosity of many materials decreases.
For example:
Temperature ↓ → Viscosity ↑ → Poor flowability
Temperature ↑ → Viscosity ↓ → Better flowability
By maintaining a suitable temperature, an aluminum foil heater can help make these materials easier to pump and discharge.
Aluminum Foil Heater vs. IBC Heating Jacket
Aluminum foil heaters and IBC heating jackets can both be used for IBC heating, but their designs serve different purposes.
| Feature | Aluminum Foil Heater | IBC Heating Jacket |
|---|---|---|
| Heating Method | Surface heating | External jacket heating |
| Heating Area | Customizable | Usually broad |
| Design | Thin and lightweight | Thicker |
| Targeted Heating | Excellent | Limited |
| Customization | High | Usually standardized |
| Insulation | Can be added separately | Often integrated |
| Installation | Surface-mounted | Wrapped around IBC |
| Best Application | Targeted/customized heating | General temperature maintenance |
An aluminum foil heater can be a good choice when the application requires customized heating areas, a thin structure, and targeted temperature maintenance.
How to Improve IBC Heating Efficiency Further?
Simply increasing heater power is not always the best way to improve heating performance.
A more effective approach is to optimize the entire heating system:
1. Select the Correct Heating Area
Heat the areas that have the greatest effect on material temperature and discharge.
2. Choose an Appropriate Watt Density
Avoid excessive power concentration that may create hot spots.
3. Add Suitable Insulation
Reduce heat loss from the container surface.
4. Use Temperature Control
Prevent unnecessary continuous heating.
5. Match the Heater to the Material
Different materials require different target temperatures and heating rates.
This approach can provide better efficiency than simply selecting a higher-power heater.
How to Select an Aluminum Foil Heater for an IBC Tank?
Before designing a customized heater, manufacturers should consider:
| Parameter | Information Required |
|---|---|
| IBC Capacity | 500 L / 1000 L / etc. |
| Material | Bitumen / oil / resin / adhesive |
| Initial Temperature | °C |
| Target Temperature | °C |
| Ambient Temperature | °C |
| Heating Time | Hours |
| Heating Area | Bottom / side / outlet |
| Voltage | V |
| Power | W |
| Container Material | Plastic / metal |
| Insulation | Type and thickness |
| Temperature Control | Thermostat / sensor / controller |
Aluminum foil heaters can improve IBC tank heating efficiency through direct surface heating, good heat distribution, customized heating areas, and precise temperature control. When combined with suitable insulation, they can help maintain the required temperature of viscous liquids while reducing unnecessary heat loss.
For applications involving bitumen, oils, resins, adhesives, waxes, and other temperature-sensitive materials, the heater should be designed according to the material properties and actual operating conditions.
Jaye Heater can customize aluminum foil heaters according to the IBC dimensions, heating area, voltage, wattage, target temperature, resistance, and temperature-control requirements, providing flexible heating solutions for industrial IBC applications.
