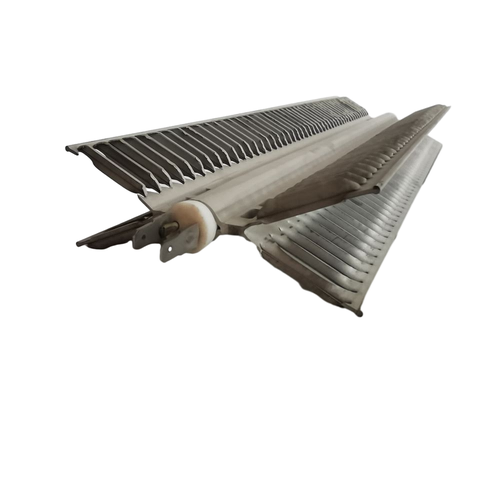

X-Type Aluminum Fin Heater

Aluminum is commonly used in heat transfer components because it offers a practical balance between thermal performance, weight and manufacturability.

For an air heating assembly, the material needs to transfer heat from the heating source to the surrounding fins while also allowing the structure to be formed into a complex profile.

Aluminum provides several advantages for this purpose.

Good Heat Transfer Performance

Once heat is transferred from the heating element to the aluminum structure, the material helps distribute that heat across the extended fin surface.

This allows more of the assembly to participate in heat exchange with the surrounding air.

Lightweight Construction

Compared with many other metals, aluminum provides a relatively lightweight solution.

This can be useful for equipment where the overall weight of the heating assembly needs to be controlled.

Suitable for Formed Fin Structures

X-type fin designs require the material to be formed into repeated and relatively precise shapes.

Aluminum can be processed into different fin profiles and dimensions according to the heater design.

Flexible for Custom Designs

The overall length, width, fin spacing and profile can be adjusted according to the available installation space and heating requirements.

This makes the X-type aluminum fin suitable for custom heating projects rather than only standard-size products.

One common application of this structure is the PTC air heater.

A PTC, or Positive Temperature Coefficient, heating element changes its electrical resistance as its temperature increases. This characteristic allows the heating behavior to be influenced by the temperature of the PTC material itself.

When combined with an aluminum fin structure, the PTC heating element can transfer heat to a larger surface area.

The aluminum fins then help exchange that heat with the moving air.

This type of construction is commonly used where compact size, efficient air heating and relatively fast heat transfer are required.

Depending on the application, the complete PTC heater assembly may include:

• PTC ceramic heating elements
• X-type aluminum fins
• Insulation components
• Electrodes or conductive plates
• Terminal connections
• Lead wires
• Protective frames or housings
• Temperature control or thermal protection components

The final structure depends on the customer's equipment design.

X-type aluminum fin structures can be used in a wide range of forced-air heating applications.

HVAC and Ventilation Equipment

Heating components can be installed in systems where air needs to be warmed before entering a room, chamber or process.

Air Curtains

Air curtains may require compact heating elements capable of transferring heat efficiently into a continuous airflow.

Heat Pumps

Electric heating components can be used as auxiliary or supplementary heating sources in certain heat pump systems.

Dehumidifiers

Some dehumidification equipment uses heating elements as part of the air treatment process.

Industrial Air Heating Equipment

Industrial machines often require controlled heating of circulating or forced air.

Depending on the design, X-type aluminum fin structures can be adapted for these applications.

Drying Equipment

Hot air is widely used in drying processes for materials, components and finished products.

A properly designed finned heating assembly can help transfer heat into the airflow before it reaches the drying area.

Automotive and Transportation Heating Systems

Compact electric air heating components may also be used in transportation equipment where space is limited and controlled air heating is required.

Battery and Electronic Equipment

In certain thermal management systems, air heating may be required to maintain suitable operating conditions in low-temperature environments.

The exact heater design should always be determined according to the electrical and thermal requirements of the system.
