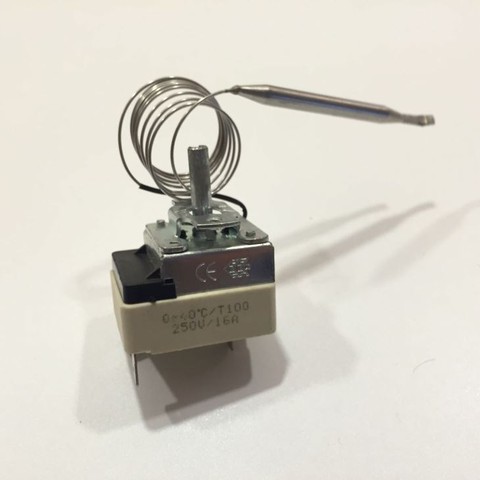

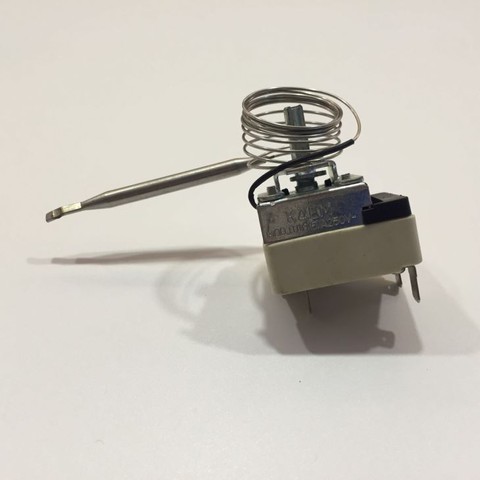

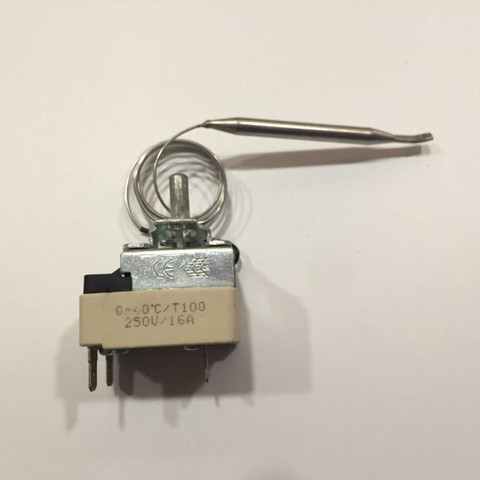

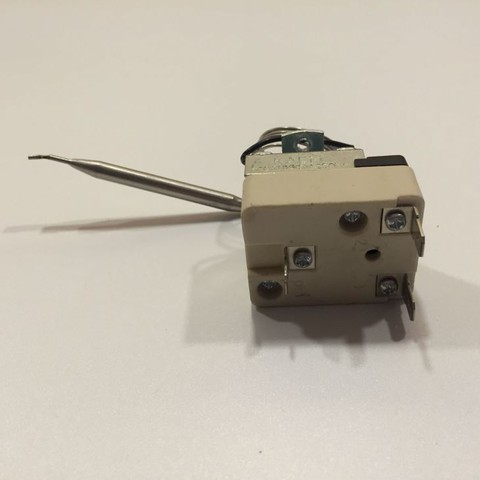

WY-T Type Capillary Thermostat

Type T Capillary thermostat is also one of the most popular capillary thermostats used in the house hold appliance. They are mainly applicable to electric water heater, water boiler, electric oven, warm air heater, washing machine, frier, kitchen equipment, etc.
Chat Now

Product Details

Type T Capillary thermostat is also one of the most popular capillary thermostats used in the house hold appliance. They are mainly applicable to electric water heater, water boiler, electric oven, warm air heater, washing machine, frier, kitchen equipment, etc.

Designed temperature:-30~350℃

On-off temperature difference:2~12℃

Service temperature control range:0~40℃ 30~85℃ 30~90℃ 30~110℃ 50~300℃ 50~320℃

Rated voltage and current:AC250V 16A

The centres of installing hole:28mm with M4 screw

Note: customized manufacture based on customer requests.


No.

Main Parameters of the WY-T type capillary thermostat

1

Model No.

WY-T type series

2

Temperature

-30~350℃

3

Capillary length

300mm~2000mm(stainless steel capillary tube and sensing bulb)

4

Rlated voltage/current/frequency

125/250VAC 16A

5

Electric strength

2000VAC/1 min/0.5mA

6

Insulation resistance

≥100MΩ

7

Contact resistance

≤50mΩ

8

Lifetime test

100,000 times

9

Function

Temperature control,Adjustable temperature

10

Application

Electric water heater, electric heater, electric boiler, washing machine, electric oven, deep fryer,air fryer



The WY series of capillary thermostats produced by jaye industry are made of stainless steel heat-sensitive temperature components as the main material. They are composed of high-temperature resistant stainless steel springs and thread rotation temperature adjustment systems. They can automatically control the temperature and heat on various heating appliances. And automatic protection of electrical appliances, energy saving, power saving, mainly used in washing machines, electric water heaters, thermostat electric hot pot, electric wok, electric iron, electric oil heater, electric oven and other household appliances.


Application-Thermostat
