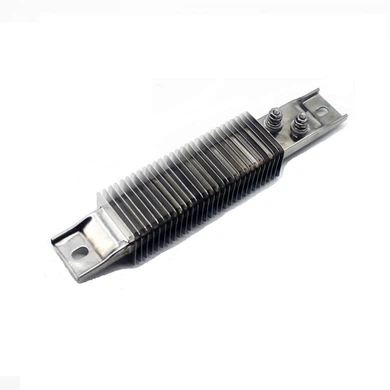

High Temperature Stainless Steel 304 Ceramic Fin Strip Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of high temperature stainless steel 304 ceramic fin strip heater in China, also supports custom service. Welcome to wholesale high quality high temperature stainless steel 304 ceramic fin strip heater at competitive price from our factory.
The finned strip heater's basic design consists of a helically wound resistance coil placed in a specially designed ceramic
insulator. The resistance coil is mechanically connected to the screw terminal for positive connection. Stainless steel rectangular tubing is used to house the heater assembly. All remaining voids are filled with high purity magnesium oxide to increase thermal conductivity and dielectric strength.
Stainless steel fins are mounted to the rectangular tubing. The fins have been specially designed to provide maximum surface contact for good heat dissipation into the finned cross sections, thus resulting in rapid heat transfer to the air.
Specification
| Product name | Customized ceramic insulated heating element strip heater finned strip heaters |
| Voltage | 110v, 220v, 230v, 240v, 380V, 480V, according to your requirement |
| Power | According to your requirement |
| Fin dimension: | 51*35mm |
| Tube sheath | Stainless steel |
| Insulation: | Ceramic |
Advantage
High-Temperature Capability
The combination of a Grade 304 stainless steel sheath, high-temperature resistance wire (e.g., Nichrome), and ceramic (MgO) insulation allows this heater to operate continuously at temperatures up to 750°C (1382°F) or even higher in some configurations.
Uniform Heat Distribution
The fins run the entire length of the heater, promoting consistent heat dissipation across the entire element. This prevents the formation of hot spots that can damage the heater or the product being heated.
Superior Mechanical Strength
The 304 stainless steel construction provides excellent resistance to physical damage, abrasion, and thermal expansion stresses. The fins add structural rigidity to the entire assembly.
Enhanced Safety
The high-purity magnesium oxide (MgO) powder and ceramic bead insulators provide exceptional dielectric strength, effectively isolating the live resistance wire from the metal sheath even at extreme temperatures..
Application
- Process Air Heating
- Drying Cabinets and Equipment
- Comfort Heating
- Shrink Tunnels
- Humidity Control
- Resistive Load Banks
How to order
If you are interested in mica band heater, please share information as below:
- Quantity
- size(Length*Width*Height)
- power
- voltage
- drawing/photos
In summary, this heater is not just a simple heating element; it is a high-performance engineering solution designed for efficiency, durability, and reliability in the most challenging industrial settings.
