Mechanical Time Control Switch For Electric Oven

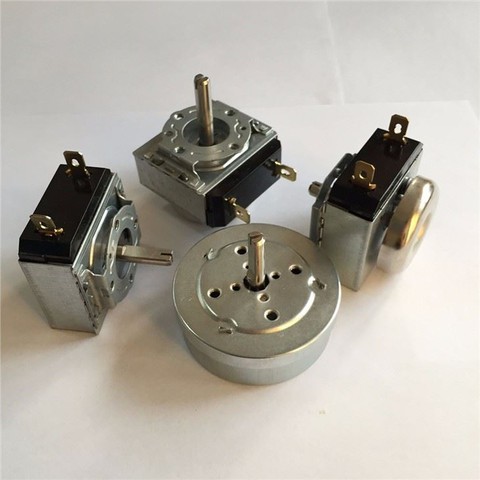

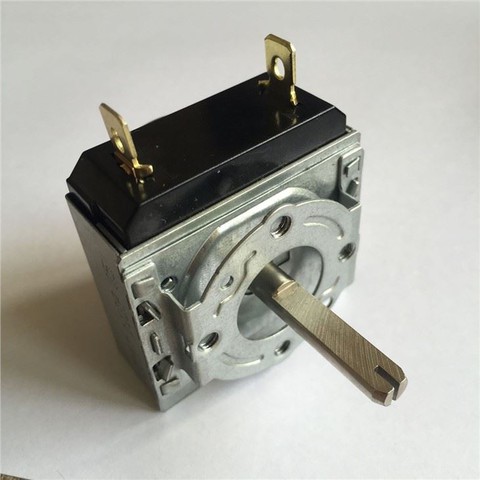

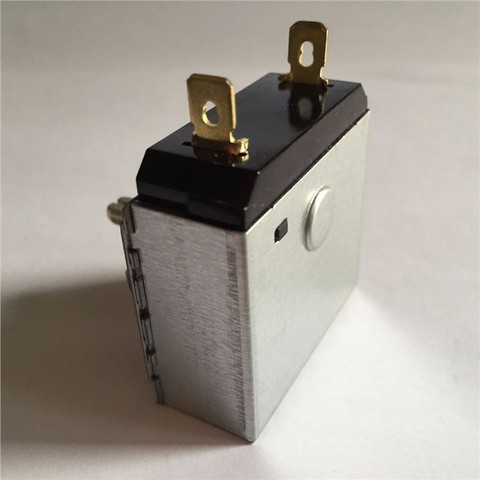

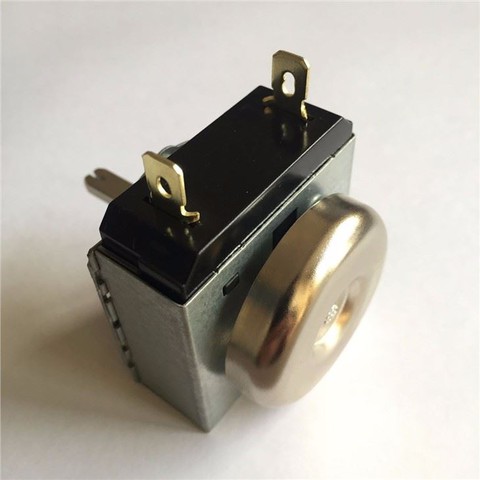

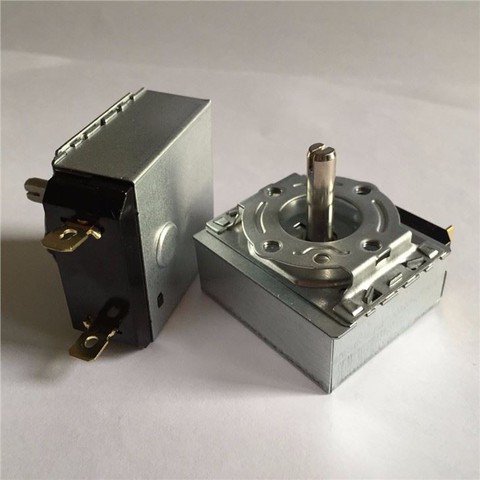

Jaye makes the mechanical time control switch for electric oven with different minutes, 5 minutes, 15 minutes, 30 minutes, 60 minutes, 90 minutes and 120 minutes. We make mainly two shapes, square shape and the round shape. For the square shape can be with ring bell or without the ring bell. We...
Chat Now

Product Details

Jaye makes the mechanical time control switch for electric oven with different minutes, 5 minutes, 15 minutes, 30 minutes, 60 minutes, 90 minutes and 120 minutes. We make mainly two shapes, square shape and the round shape. For the square shape can be with ring bell or without the ring bell. We make the time control switch with different spindle specifications they are not only suitable for electric ovens, but also for many small household appliances such as: air fryer, disinfection cabinets, electric fans, egg cookers, and hairdressing equipment, etc.



Specifications of the Mechanical Time Control Switch:

Time Setting Range

5 minutes, 15Minutes, 30Minutes, 60Minutes, 90minutes, 120 minutes.

Operating Temperature range

-10C--+150C

Capacity

125V 15A 250V 15A 250V 5A

Working Angle

270

Endurable Life

10000 cycles

Time Tolerance

+/-15% or less



Jaye highlight the quality control of our mechanical time switch, we have established an ISO9001 quality management system and passed relevant certifications. There are 30 professional quality inspectors who strictly control the purchase, process, and finished products, respectively, to control product quality and ensure that customers are provided with qualified products.



Order instruction:
When enquiry, please kindly provide us the below information:
1) Your detailed specification parameters; Like what is the minutes do you need. Or the shape and length of the shaft.
2) More pics from different angles;
3) Better with its technical drawing for our reference;
4) Your expected order quantity. Big quantity can be great helpful to get the best competative price.


Application-Timer

Hot Tags: mechanical time control switch for electric oven, China, manufacturers, suppliers, factory, customized, electric, high quality
