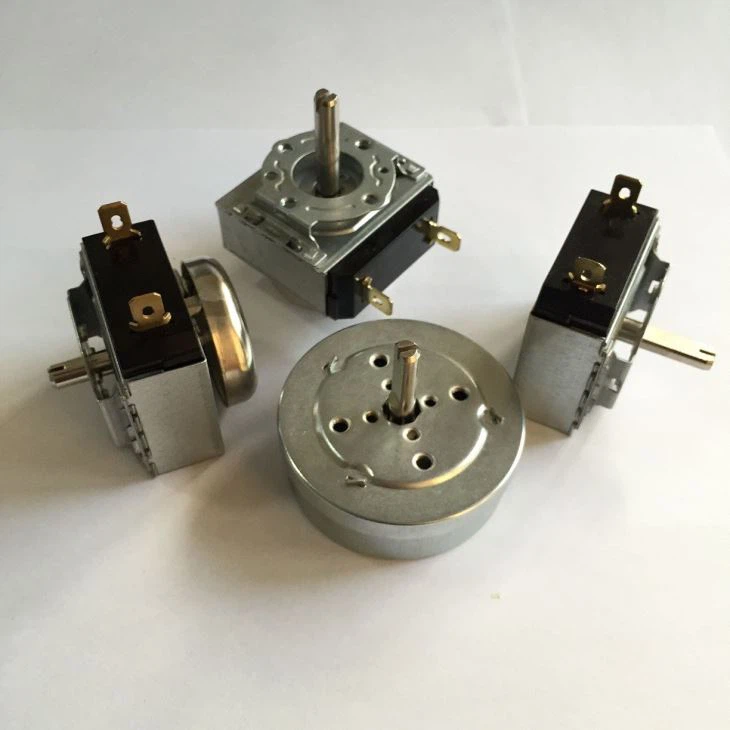

Always On Mechanical Oven Timer

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of always on mechanical oven timer in China, also supports custom service. Welcome to wholesale high quality always on mechanical oven timer at competitive price from our factory.

Mechanical Oven timer is a very easy-to-use gadget, which can help you to effectively timing the oven time. For example, when baking meat, you need to pay attention to turning it over when it's half baked. At this time, you only need to use the timer to set the time, so when the time is up, you can hear the voice of reminder, and you can give it in time The ingredients inside the oven are turned over. Don't worry about the unsuccessful production of your own food. It's very convenient.

Electric oven timer made by Jaye Industry has 5 minutes, 15 minutes, 30 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes. It is used for timing electric oven, heater, electric stew pot, health equipment and other products;

Main specifications  of Always on Mechanical Oven Timer:

1. Timing range: 5 \ ', 15 \', 30 \ ', 60 \', 75 \ ', 90 \', 120 \ ', 180 \'

2. Time difference: ± 5%

3. Rotation Angle: 270 degrees, 285 degrees, 315 degrees (with always on function), non-standard products can be custom-made.

4. Working temperature: - 10-125 ℃

5. Working angle: 270 ± 5 °

6. Operating torque: ≤ 4.0 kg f.cm;

7. Return torque: ≤ 4.0 kg f.cm;

8. Breaking torque: more than 12 kg f-cm;

9. Electrical parameters: 16A 250V / AC; 6. 250V

10. Installation dimension: Φ 28.6-m4 ⁄ Φ 24-m3

11. Lifetime:10,000cycles

12. Product certification: UL, VDE, ROHS certification

13. Package size: 200 pieces / box, gross weight: 18kg, net weight: 17kg, outer box size: 42.5x30x30.5cm
