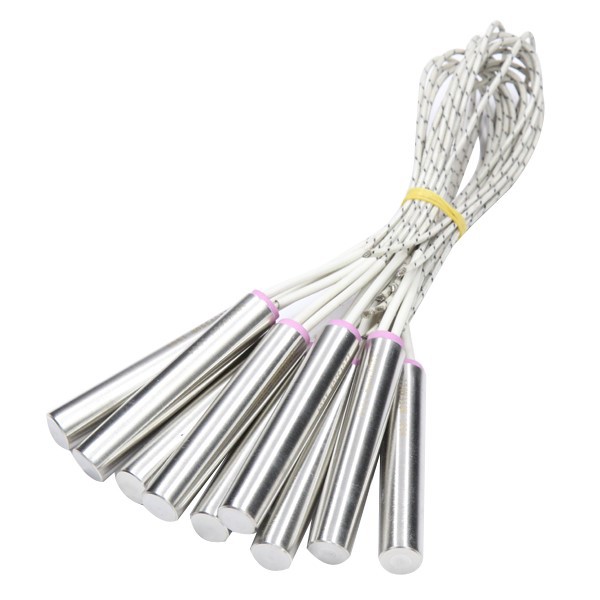

What are the common mistakes when installing cartridge heaters?
When installing cartridge heaters, there are several common mistakes that can affect performance or cause premature failure. Here are some of the most frequent issues:
1. Incorrect Bore Hole Size
Mistake: Installing the heater into a bore hole that is too large or too small can prevent proper contact between the heater and the surrounding material.
Solution: Always ensure that the bore hole size matches the heater's diameter with minimal tolerance (usually 0.1-0.2 mm clearance).
2. Improper Heater Insertion
Mistake: Forcing the heater into the bore hole or inserting it at an angle can cause physical damage or misalignment.
Solution: Gently insert the heater into the hole, ensuring it is straight and aligned with the hole to avoid damage to the element or the heater's insulation.
3. Lack of Proper Alignment
Mistake: Misaligning the heater or not ensuring that the heater is seated evenly in the bore can lead to inefficient heat transfer.
Solution: Ensure the heater is installed fully and evenly, with a tight fit, to promote good thermal conductivity.
4. Over-tightening or Under-tightening
Mistake: Over-tightening the heater can cause excessive mechanical stress, leading to cracked insulation or wiring. Under-tightening can lead to poor heat transfer and the heater not making full contact with the material.
Solution: Follow the manufacturer's recommendations for torque and tightening to avoid both over-tightening and under-tightening.
5. Not Cleaning the Bore Hole Properly
Mistake: Failing to clean the bore hole properly before installation can result in dirt, debris, or oil interfering with heat transfer.
Solution: Thoroughly clean the bore hole using compressed air, a brush, and solvents like isopropyl alcohol to ensure a clean and smooth surface for the heater.
6. Poor Electrical Connections
Mistake: Incorrectly wiring or loosening the electrical connections can lead to intermittent heating or even a complete failure of the heater.
Solution: Ensure all electrical connections are secure, correctly wired, and insulated as needed. Double-check wiring for continuity.
