In battery thermal management systems (BTMS), silicone rubber heating pads are increasingly becoming a high-performance, reliable, and highly customizable alternative to traditional Positive Temperature Coefficient (PTC) heaters.
Here is a detailed comparison of the two solutions, along with the core advantages and implementation methods of silicone heating pads.
Silicone Heating Pads vs. Traditional PTC Heaters (Comparison in BTMS Context)

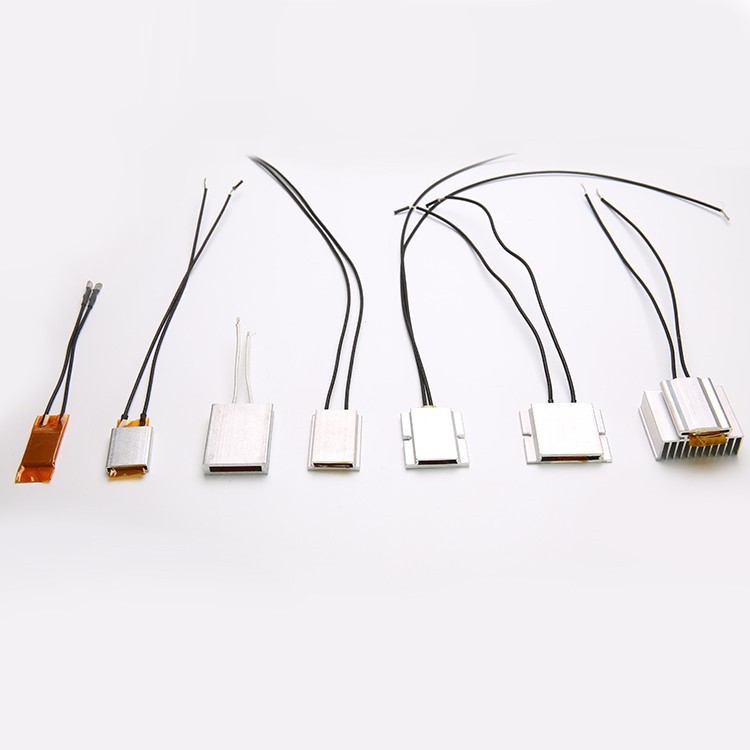

| Feature | Traditional PTC Heaters | Silicone Heating Pads (as the Alternative) |
|---|---|---|
| Form Factor & Structure | Typically rigid, block-like with fixed shapes. | Flexible, ultra-thin, fully customizable. Can be thinner than 1mm, cut to any shape, and bent to conform to curves. |
| Heating Uniformity | Heat is concentrated; relies on air or metal for conduction, which can create thermal gradients. | Surface-area heating with excellent temperature uniformity. Enables precise thermal control across the entire heated area. |
| Response Time | Has higher thermal mass, leading to slower thermal response and inertia. | Low thermal mass enables rapid thermal response. Heats up quickly to meet low-temperature startup demands. |
| Insulation & Safety | Good insulation but often requires additional insulating layers or components. | The silicone encapsulation is an excellent insulator (withstands kV-level dielectric strength), is waterproof, and offers a more integrated, reliable structure. |
| Energy Efficiency & Heat Loss | Some heat is dissipated into the surrounding air. | Direct conductive heating transfers heat efficiently to the battery cells, resulting in higher thermal efficiency and lower relative energy consumption. |
| Design & Integration | Relatively fixed shapes and installation methods offer lower design flexibility. | Highly customizable. Can be designed for zone heating based on BMS requirements (e.g., independent temperature control for different module areas). Integration of sensors (like NTCs) is more straightforward. |
| Cost & Maintenance | Mature technology with cost advantages at high volumes. Replacement can be complex if damaged. | Higher initial cost due to customization, but easier to install and maintain. Damaged sections can be replaced locally. |
Typical Application Modes of Silicone Heating Pads in BTMS
Bottom Heating Mode:
Pads are attached to the inside of the bottom cold plate or pack housing. They preheat the battery uniformly from the bottom up by heating the coolant or through direct conduction.
Side-Contact Heating Mode:
Pads are directly attached to the large surfaces of cells or module side plates, providing the most direct and efficient heat transfer. This is a direct replacement for traditional PTC ceramic discs.
Integrated Heating Module:
Silicone heating pads can be pre-assembled with thermal interface materials, insulation films, and temperature sensors into a standardized module, simplifying battery pack assembly.
Zoned Intelligent Heating:
Based on feedback from temperature sensors within the pack, the BMS can control individual silicone heating pads or zones independently. This allows for precise, targeted heating of colder areas, achieving optimal thermal balance.
Silicone heating pads are not merely a functional substitute for PTC heaters; they offer a superior solution in terms of safety, energy efficiency, design freedom, and thermal management precision. They are particularly well-suited for:
High-energy-density battery packs sensitive to space and weight.
Premium electric vehicles requiring fast low-temperature charging and optimal cold-weather performance.
Battery modules requiring non-standard shapes or complex curved surface heating.
Applications with stringent requirements for thermal uniformity and battery lifespan consistency.
We can provide end-to-end solutions-from selection and thermal design simulation to fully customized pad shapes, circuit layouts (e.g., for zone heating), and integrated sensor solutions-based on your battery pack's 3D structure, thermal simulation analysis, and BMS control strategy. We ensure optimal heating efficiency, safety, and reliability for your specific project.
Feel free to contact us to discuss your specific project requirements in detail.
