How to Select and Apply Heating Elements in 3D Printers?

3D printing technology relies heavily on precise thermal management to achieve successful layer-by-layer fabrication. The heating elements in these systems are responsible for maintaining specific temperature ranges critical for material extrusion, bed adhesion, and dimensional stability. Unlike conventional heating applications, 3D printers demand rapid thermal response, accurate temperature control, and compact form factors to fit within the constrained spaces of print heads and heated beds.

The thermal requirements vary significantly between different components of a 3D printer. The hot end, which melts the filament, typically operates between 180°C and 300°C depending on the material, while heated beds usually maintain temperatures between 50°C and 120°C to prevent warping and ensure proper first-layer adhesion. These distinct thermal zones require specialized heating solutions optimized for their specific operational parameters, response times, and physical constraints.

Understanding the characteristics, advantages, and limitations of each heating element type is essential for selecting the appropriate technology for a given application, whether for DIY printer builds, industrial-grade systems, or specialized material processing.

Cartridge heaters represent the most widely adopted solution for hot end heating in consumer and professional-grade 3D printers. These cylindrical heating elements are engineered for direct insertion into the aluminum or copper heater blocks that surround the nozzle assembly. Their compact design and high power density make them ideal for applications requiring rapid heating and precise temperature control within a confined space.

Construction and Materials

A typical cartridge heater consists of a stainless steel outer sheath that provides mechanical protection and electrical insulation. Inside, a ceramic core houses a coiled resistance wire, usually made of nickel-chromium (NiCr) or iron-chromium-aluminum (FeCrAl) alloys. The space between the heating element and the sheath is filled with magnesium oxide (MgO) powder, which serves as both an electrical insulator and thermal conductor. This construction ensures efficient heat transfer to the heater block while maintaining electrical safety.

Electrical Specifications

Cartridge heaters for 3D printers are available in standard diameters of 6mm and 8mm, with lengths ranging from 20mm to 40mm. Voltage ratings typically include 12V and 24V DC configurations, with power ratings commonly between 30W and 60W. The choice between 12V and 24V systems depends on the printer's power supply design-24V systems allow for higher power delivery with lower current, reducing voltage drop in wiring and enabling faster heating times.

Performance Characteristics

These heaters exhibit excellent thermal response times, typically reaching operating temperature within 1-2 minutes when properly installed. Their cylindrical shape ensures uniform heat distribution around the nozzle, minimizing thermal gradients that could affect print quality. However, they require external temperature sensors (usually thermistors or thermocouples) and PID control algorithms to maintain stable temperatures, as they lack inherent temperature regulation.

Application Considerations

When selecting a cartridge heater, key factors include the target temperature range, required heating rate, and compatibility with the heater block material. For high-temperature materials like polycarbonate or nylon, higher-wattage heaters (40W-60W) are preferred to maintain temperature stability during rapid extrusion. Proper installation is critical-insufficient thermal contact between the heater and block can lead to overheating and premature failure.

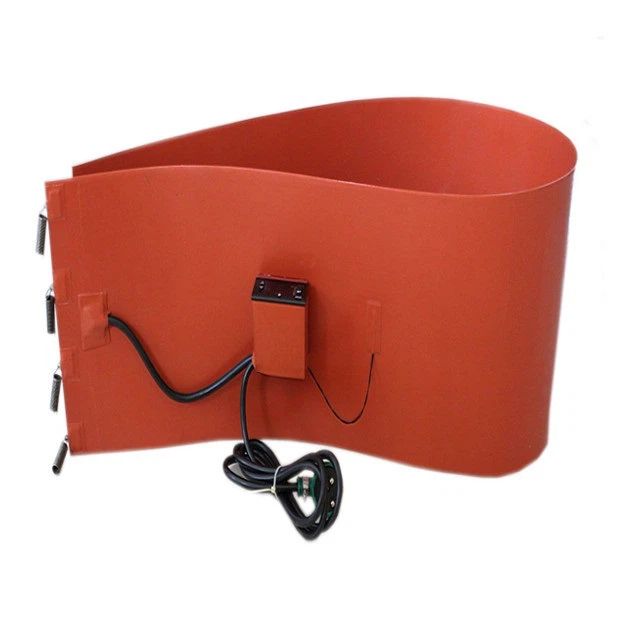

Silicone rubber heaters have become the standard for heated bed applications in most modern 3D printers due to their flexibility, durability, and excellent thermal characteristics. These heaters consist of a thin, flexible silicone rubber sheet with embedded heating elements, providing uniform heat distribution across the entire print surface.

Construction and Materials

The heating element in silicone heaters is typically a nickel-chromium (NiCr) resistance wire or an etched foil pattern encapsulated between layers of silicone rubber. The silicone material offers excellent thermal conductivity, electrical insulation, and resistance to moisture, chemicals, and mechanical stress. The outer surfaces are often reinforced with fiberglass or other materials to enhance durability and prevent tearing.

Electrical Specifications

Silicone heaters for 3D printer beds are available in various sizes to match common bed dimensions (typically 200mm x 200mm to 400mm x 400mm). Voltage ratings include 12V, 24V, and occasionally 110V/220V AC for industrial applications. Power ratings range from 100W to 500W depending on bed size and desired heating performance. Higher power ratings enable faster bed heating and better temperature maintenance in open-frame printers.

Performance Characteristics

These heaters provide excellent heat distribution uniformity, typically achieving temperature variations of less than 5°C across the bed surface when properly installed. Their flexibility allows them to conform to slightly uneven surfaces, though they require a flat, rigid backing plate (usually aluminum or glass) for optimal performance. Thermal response is slower than cartridge heaters due to the larger thermal mass, with heating times ranging from 2-5 minutes to reach 60°C.

Application Considerations

When selecting a silicone heater, ensure the voltage rating matches the printer's power supply system. For large beds (300mm+), consider using multiple heating zones or higher-power heaters to maintain temperature uniformity. Installation requires careful attention to avoid air gaps between the heater and bed surface, as trapped air can create hot spots and reduce efficiency. Thermal insulation beneath the bed is recommended to minimize heat loss and improve energy efficiency.

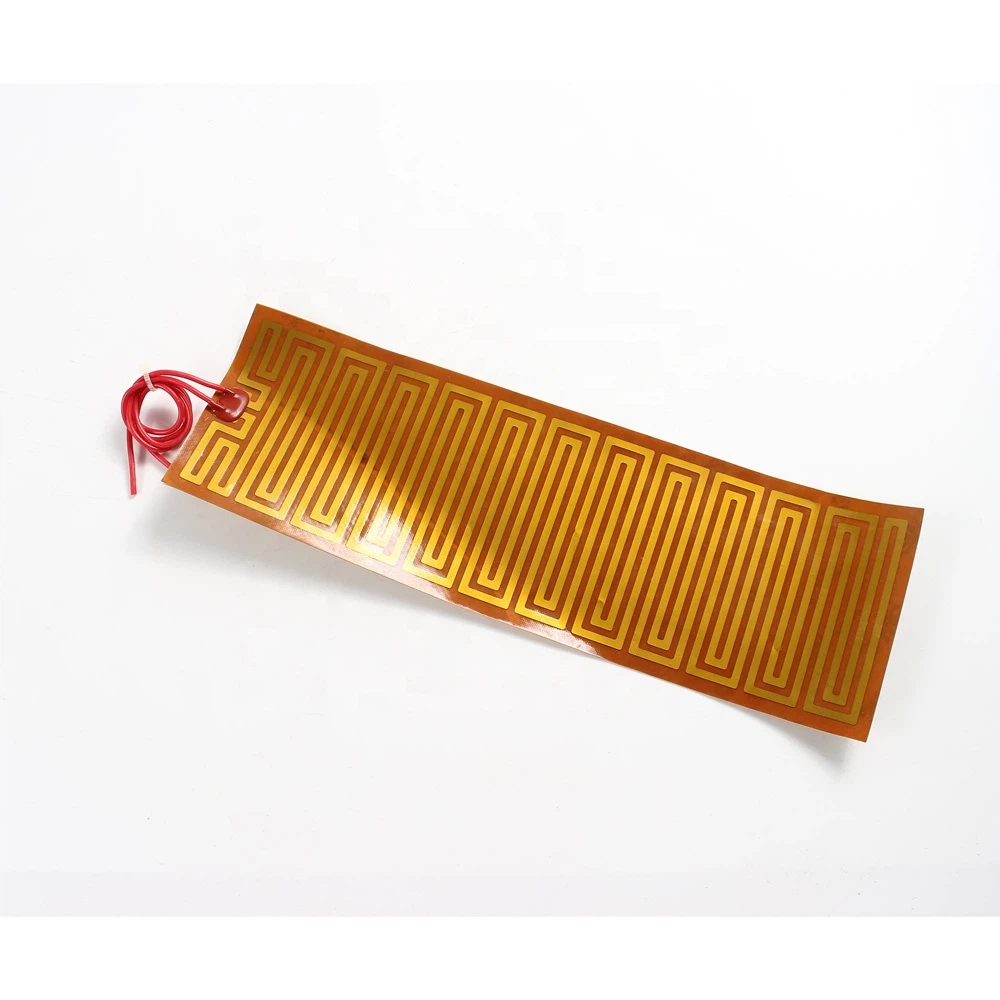

Kapton heaters, also known as polyimide heaters, offer an alternative to silicone heaters for bed heating applications, particularly in space-constrained or weight-sensitive designs. These ultra-thin heaters utilize Kapton polyimide film as the substrate and insulating material, providing exceptional thermal and mechanical properties in a minimal form factor.

Construction and Materials

Kapton heaters consist of an etched foil heating element (usually copper or nickel alloy) laminated between layers of Kapton polyimide film. The Kapton material provides excellent thermal stability (up to 400°C continuous use), chemical resistance, and electrical insulation properties. The entire assembly is typically less than 0.2mm thick, making it one of the thinnest heating solutions available.

Electrical Specifications

Similar to silicone heaters, Kapton heaters are available in various sizes and power ratings. Common voltage ratings include 12V and 24V DC, with power densities typically ranging from 0.5W/cm² to 1.5W/cm². The etched foil design allows for custom heating patterns and multiple heating zones within a single unit, enabling precise temperature control across different bed regions.

Performance Characteristics

Kapton heaters offer rapid thermal response due to their low thermal mass and direct contact with the heated surface. They can achieve temperature uniformity within 3-5°C across the bed when properly installed. The thin profile minimizes heat loss to the environment and allows for more compact printer designs. However, they are more susceptible to physical damage (punctures, tears) compared to silicone heaters and require careful handling during installation.

Application Considerations

Kapton heaters are ideal for applications where space and weight are critical constraints, such as delta printers or portable 3D printers. Their thin profile makes them suitable for direct mounting on glass or aluminum print surfaces without significantly increasing bed thickness. However, they require a perfectly flat and smooth mounting surface, as any imperfections can create air gaps and hot spots. Protective layers or coatings may be necessary in high-wear environments.

Positive Temperature Coefficient (PTC) heaters represent a specialized category of heating elements that offer inherent temperature self-regulation, making them suitable for certain 3D printing applications where safety and simplicity are priorities.

Working Principle

PTC materials exhibit a unique property: their electrical resistance increases significantly as temperature rises. When power is applied, the heater initially draws high current and heats rapidly. As the temperature approaches the material's Curie point (the temperature at which resistance sharply increases), the current decreases dramatically, effectively limiting further temperature rise. This self-regulating behavior eliminates the need for external temperature control circuits in some applications.

Construction and Materials

PTC heaters for 3D printing typically use ceramic PTC elements or polymer-based PTC materials. Ceramic PTC elements consist of barium titanate-based ceramics with added dopants to achieve specific temperature characteristics. These are often encapsulated in aluminum housings or integrated into heating cartridges. Polymer PTC heaters use conductive polymer composites that exhibit PTC behavior at lower temperatures.

Electrical Specifications

PTC heaters are available in various form factors, including cartridge-style heaters for hot ends and flat heaters for bed applications. Voltage ratings typically match standard printer voltages (12V or 24V), with power ratings adjusted to the specific application. The self-regulating nature means the actual power consumption decreases as the target temperature is approached.

Performance Characteristics

The primary advantage of PTC heaters is their inherent safety-they cannot overheat beyond their designed temperature limit, reducing the risk of thermal runaway. They also simplify the control system, as no PID tuning or temperature feedback is required for basic operation. However, they have slower response times compared to traditional resistance heaters and may not maintain temperature as precisely under varying load conditions.

Application Considerations

PTC heaters are best suited for applications where precise temperature control is not critical, such as heated beds for PLA printing or auxiliary heating elements. They are less common in hot end applications due to the need for precise temperature control for different materials. When using PTC heaters, ensure the self-regulating temperature matches the application requirements, as they cannot be adjusted without changing the heating element.

While cartridge, silicone, Kapton, and PTC heaters dominate the current 3D printing market, several alternative and emerging technologies offer unique advantages for specific applications.

Ceramic Heaters

Ceramic heating elements use ceramic materials with embedded resistance wires, offering higher temperature capabilities (up to 800°C) and excellent thermal stability. These are primarily used in industrial-grade 3D printers for high-temperature materials like PEEK or ULTEM. They provide faster heating rates and better temperature uniformity than traditional cartridge heaters but are more expensive and require specialized control systems.

Induction Heating

Induction heating technology uses electromagnetic fields to generate heat directly in conductive materials. While not yet common in consumer 3D printers, it offers potential advantages for rapid heating and precise temperature control. Research is ongoing into induction-heated nozzles and beds, which could eliminate the need for physical heating elements and improve energy efficiency.

Thick Film Heaters

Thick film heaters use screen-printed resistive pastes on ceramic or metal substrates, creating extremely thin and efficient heating elements. These offer excellent temperature uniformity and rapid response times, making them suitable for both hot end and bed applications. They are more expensive than traditional solutions but provide superior performance in space-constrained designs.

Carbon Fiber Heaters

Carbon fiber heating elements use carbon fiber mats or fabrics as the resistive element, offering flexibility, rapid heating, and excellent durability. These are emerging as alternatives to silicone heaters for bed applications, particularly in large-format printers where weight reduction is important.

Selecting the appropriate heating element requires careful consideration of multiple technical and operational factors. The following criteria should guide the selection process for both hot end and bed heating applications.

Temperature Requirements

Hot End: Determine the maximum operating temperature based on the materials to be printed. Standard PLA/ABS requires 200-250°C, while engineering materials may require 300-400°C

Heated Bed: Typically 50-120°C, depending on material and bed size. Larger beds may require higher power to maintain temperature

Power and Voltage Compatibility

Match the heater's voltage rating to the printer's power supply (12V or 24V DC)

Ensure the power supply can deliver sufficient current for the selected heater(s)

Consider power density requirements-higher power enables faster heating but requires better thermal management

Physical Constraints

Hot End: Available space in the heater block, mounting method, and thermal mass considerations

Bed: Bed dimensions, thickness limitations, and mounting surface characteristics

Response Time Requirements

Hot ends require rapid heating (1-2 minutes to operating temperature) to minimize wait times

Beds can tolerate slower heating but should reach temperature within 5-10 minutes for practical use

Control System Capabilities

Traditional resistance heaters require PID temperature control with feedback sensors

PTC heaters simplify control but offer less precise temperature regulation

Consider the complexity of the control circuit and available microcontroller resources

Cost and Availability

Cartridge heaters are inexpensive and widely available

Silicone and Kapton heaters vary in cost based on size and quality

Specialized heaters (ceramic, PTC) may have higher costs and longer lead times

Reliability and Lifespan

Consider the expected operating hours and maintenance requirements

Higher-quality heaters with better insulation and construction typically offer longer service life

Proper installation is critical for optimal performance, safety, and longevity of heating elements in 3D printers. Follow these guidelines for different heater types.

Cartridge Heater Installation

Preparation: Ensure the heater block is clean and free of debris. The mounting hole should be clean and properly sized for the heater diameter

Thermal Interface: Apply a small amount of high-temperature thermal paste to the heater surface to improve heat transfer

Insertion: Gently insert the heater into the block, ensuring it is fully seated and centered

Securing: Use set screws or retaining clips to secure the heater, but avoid overtightening which can damage the sheath

Wiring: Connect the power leads to the designated terminals, ensuring proper polarity and secure connections

Insulation: Install thermal insulation around the heater block to minimize heat loss and improve efficiency

Silicone/Kapton Heater Installation

Surface Preparation: Clean the bed surface thoroughly with isopropyl alcohol to remove oils and contaminants

Adhesive Application: If the heater has adhesive backing, remove the protective film and carefully position it on the bed

Pressure Application: Apply even pressure across the entire surface to ensure good contact. Use a roller or similar tool to remove air bubbles

Alternative Mounting: For non-adhesive heaters, use high-temperature adhesive or mechanical clamps to secure the heater

Wiring: Route power cables away from moving parts and secure them to prevent strain on connections

Insulation: Install thermal insulation beneath the bed to improve heating efficiency

General Electrical Considerations

Use appropriately sized wires for the current load-typically 18-20 AWG for hot end heaters, 14-16 AWG for bed heaters

Install fuses or circuit breakers rated for the maximum current of the heating element

Ensure all connections are secure and properly insulated to prevent short circuits

Use high-temperature rated wiring for connections near hot components

Post-Installation Verification

Measure insulation resistance between heater terminals and ground (should be >1 MΩ)

Perform a cold resistance measurement to verify the heater is within specifications

Test the heater at low power initially to check for proper operation before full power application

Achieving and maintaining stable temperatures is essential for print quality and material consistency. Several techniques can optimize heating performance.

PID Tuning for Resistance Heaters

PID (Proportional-Integral-Derivative) control is essential for maintaining stable temperatures with cartridge and other resistance heaters. The tuning process involves:

Setting initial PID values based on heater specifications or manufacturer recommendations

Running a PID autotune cycle, which typically involves heating the system to the target temperature and allowing the controller to learn the thermal characteristics

Testing the tuned parameters by monitoring temperature stability during printing

Fine-tuning if necessary to reduce temperature fluctuations

Temperature Sensor Placement

Hot End: Place the thermistor or thermocouple as close to the nozzle as possible without interfering with filament path

Heated Bed: Position sensors in areas that represent the average bed temperature, avoiding edges or corners

Use thermal compound to ensure good thermal contact between sensor and heated surface

Thermal Insulation

Insulate the hot end heater block to reduce heat loss and improve temperature stability

Add insulation beneath the heated bed to minimize energy consumption and improve heating uniformity

Use high-temperature insulation materials (ceramic fiber, silicone foam) rated for the operating temperatures

Power Management

For large beds, consider using multiple heating zones with separate temperature sensors to improve uniformity

Implement power management features such as bed temperature reduction after the first few layers to save energy

Use MOSFETs or solid-state relays rated for the maximum current to ensure reliable switching

Performance Monitoring

Monitor temperature graphs during printing to identify fluctuations or drift

Measure actual power consumption to verify heater efficiency

Periodically check temperature calibration using a calibrated thermometer

Regular maintenance and prompt troubleshooting can prevent print failures and extend heater lifespan.

Routine Maintenance Tasks

Monthly: Inspect heaters for physical damage, discoloration, or signs of overheating

Quarterly: Check electrical connections for tightness and signs of corrosion

Annually: Measure insulation resistance and verify temperature calibration

Common Issues and Solutions

Heater Not Heating: Check power supply voltage, fuses, and wiring connections. Test heater continuity with a multimeter

Insufficient Heating: Verify voltage at heater terminals. Check for poor thermal contact or damaged insulation

Temperature Fluctuations: Re-tune PID parameters. Check sensor placement and connection

Thermal Runaway: Verify safety features are enabled in firmware. Check for failed temperature sensors

Heater Failure: Replace if continuity test fails or insulation resistance is low

Preventive Measures

Avoid thermal cycling by minimizing frequent heating and cooling cycles

Use proper thermal management to prevent overheating

Follow manufacturer's recommended operating parameters

Keep heaters clean and free of debris

Heating elements in 3D printers operate at high temperatures and present electrical and fire hazards. Adherence to safety standards is essential.

Electrical Safety

Ensure proper grounding of all metal components

Use fuses or circuit breakers rated for the maximum current

Install thermal fuses or thermal cutoff devices as secondary protection

Follow local electrical codes and regulations

Thermal Safety

Implement firmware-based thermal runaway protection

Use enclosures or guards to prevent accidental contact with hot surfaces

Install smoke detectors or thermal monitoring systems in the printing area

Provide adequate ventilation to dissipate heat

Fire Safety

Keep flammable materials away from the printer

Have a Class C fire extinguisher available

Consider using fire detection and suppression systems for unattended printing

Compliance Standards

Look for heaters with relevant certifications (UL, CE, RoHS)

Ensure the overall printer design meets safety standards for consumer electronics

Follow manufacturer's installation and operating instructions

The evolution of 3D printing heating technology continues to address challenges in speed, efficiency, and material capabilities.

Higher Temperature Capabilities

As high-performance materials become more accessible, demand for heaters capable of 400°C+ operation is increasing. Ceramic and specialized alloy heaters are being developed to meet these requirements while maintaining reliability.

Improved Energy Efficiency

New heating element designs focus on reducing thermal mass and improving heat transfer efficiency. Thick film and induction heating technologies show promise for faster heating with lower energy consumption.

Integrated Smart Heating

Heaters with built-in temperature sensors and communication capabilities are emerging, simplifying installation and improving control accuracy. These "smart heaters" can provide real-time diagnostics and predictive maintenance data.

Multi-Material Compatibility

Future heating systems may incorporate multiple heating zones or adaptive heating elements to handle different materials without manual changes. This could enable seamless material switching during printing.

Sustainability Considerations

Development of more durable, longer-lasting heaters reduces electronic waste. Additionally, energy-efficient designs contribute to lower overall power consumption in 3D printing operations.

As 3D printing technology advances, heating elements will continue to evolve to meet the demands of faster printing speeds, new materials, and improved reliability. Staying informed about these developments can help users make better decisions when upgrading or building 3D printing systems.
