Introduction
Cartridge heaters are among the most versatile and widely used heating elements in industrial applications. From plastic injection molding and packaging machines to laboratory equipment and medical devices, they provide precise, localized heat in compact spaces.
However, choosing the right cartridge heater can be confusing. This guide explains the key factors to consider, helping you select a heater that matches your equipment and process requirements.
What Is a Cartridge Heater?
A cartridge heater is a cylindrical electrical heating element designed to be inserted into a hole or cavity in equipment. The heater contains a resistance wire inside a metal sheath, with magnesium oxide (MgO) insulation filling the space between the wire and sheath.
This design provides efficient heat transfer, electrical insulation, and durability, making cartridge heaters ideal for applications where precise and reliable heating is required.
Key Specifications to Consider
When selecting a cartridge heater, several specifications should guide your choice:
- Voltage and Wattage: Ensure compatibility with your power supply and required heating capacity.
- Operating Temperature: Match the heater material to the maximum temperature your process requires.
- Size (Diameter and Length): The heater should fit snugly in the equipment bore for efficient heat transfer.
Paying attention to these basic specs avoids underperformance or early failure.
Common Materials and Their Applications
The sheath material determines the heater's durability and corrosion resistance:
- Stainless Steel (304, 316): Common choice, resistant to oxidation, suitable for general industrial use.
- Incoloy: Excellent for high-temperature applications up to 850°C, ideal for extrusion and die-casting.
- Copper: Offers fast heat transfer but is typically limited to lower temperatures; often used in laboratory settings.
Selecting the correct material ensures long life and safety in your application.
Watt Density and Its Importance
- Watt density is the amount of power per unit area of the heater. It directly affects performance and lifespan:
- High Watt Density: Heats faster but may require tight control to avoid burnout.
- Low Watt Density: Slower heating, more uniform, and longer-lasting.
Choosing the right watt density depends on your process speed, material, and temperature requirements.
Length, Diameter, and Sheath Selection
Cartridge heaters come in various diameters, typically 3mm to 32mm, and lengths from 20mm to over 200mm.
The heater should fit the bore without excessive gap, ensuring maximum heat transfer.
Larger diameters can handle higher wattage and temperatures.
Special coatings (like PTFE or nickel plating) provide corrosion protection in harsh environments.

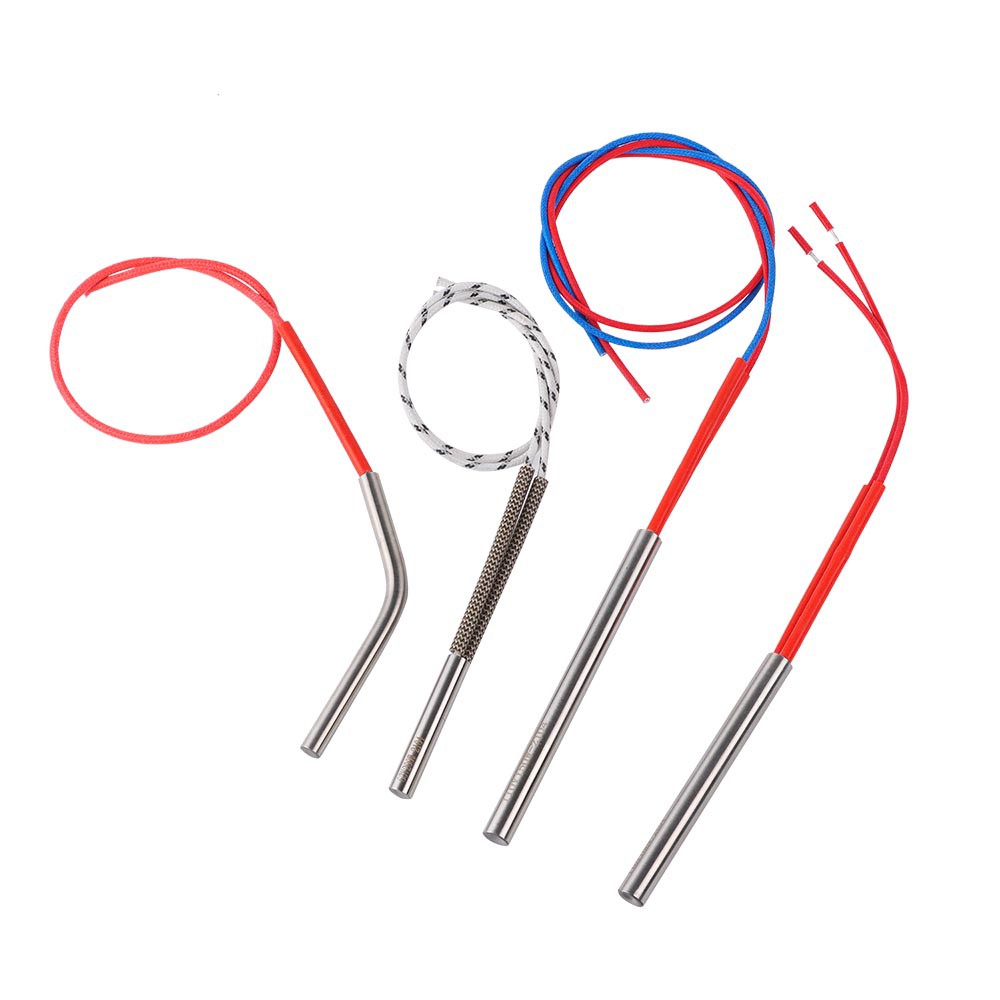

Lead Wires and Terminations
Cartridge heaters can come with different lead wire types:
Standard Leads: Flexible, for general industrial use.
High-Temperature Leads: With ceramic or fiberglass insulation for temperatures above 400°C.
Custom Terminations: Right-angle leads, connectors, or screw terminals for tight spaces.
Choosing the right lead ensures safe and reliable operation.
Applications of Cartridge Heaters
Cartridge heaters are widely used in:
- Plastic Industry: Injection molding, blow molding, extrusion machines.
- Packaging Machines: Sealing bars and heat presses.
- Medical Equipment: Laboratory incubators, sterilizers.
- Food Industry: Warmers and processing machines.
- Industrial Processes: Die-casting, heating tanks, and valves.
They are ideal where compact, localized, and controllable heat is needed.
Conclusion
Choosing the right cartridge heater requires attention to voltage, wattage, operating temperature, material, size, watt density, and lead type. Understanding these factors ensures efficient heating, long service life, and reliable operation.
If you are unsure which cartridge heater is suitable, consulting a reputable heater manufacturer can save costs and prevent downtime. At Jaye Heater, we offer customized cartridge heaters, fast prototypes, and expert advice to help you get the right solution for your application.
