1. Core Definition & Fundamental Principle
An Insulation Jacket is, at its core, a removable, system-level insulating enclosure. Its primary and essential function is to create a thermal barrier, minimizing heat transfer between equipment and the environment (whether preventing heat loss or gain). Think of it as a "professional overcoat" for industrial assets. This "coat" can be upgraded into an "electric heated coat" by integrating heating elements (like wire or blankets), combining active heating with superior insulation. Therefore, its design philosophy revolves around thermal isolation, protection, and maintainability.
A Silicone Rubber Heater, in contrast, is an independent, flexible, flat-plate electrical heating element. Its core function is to convert electricity into heat efficiently and uniformly. It possesses minimal inherent insulating properties; it is more akin to a "precision electric blanket." Its design goal is to transfer heat quickly and evenly to the surface it contacts. Thus, its technical focus is on heating uniformity, control accuracy, reliability, and durability.
2. Structural & Morphological Comparison
Physically, the two are distinctly different.

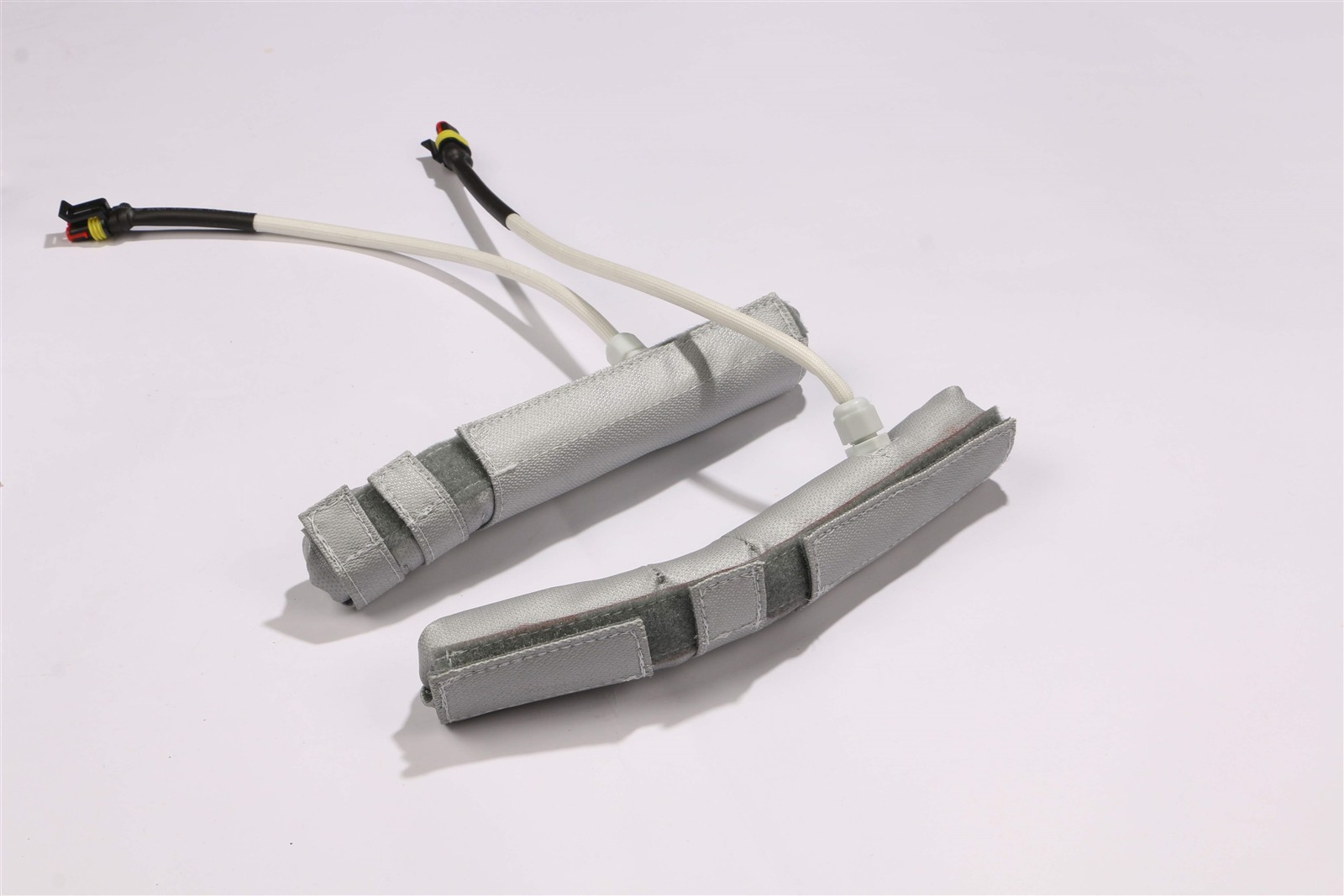

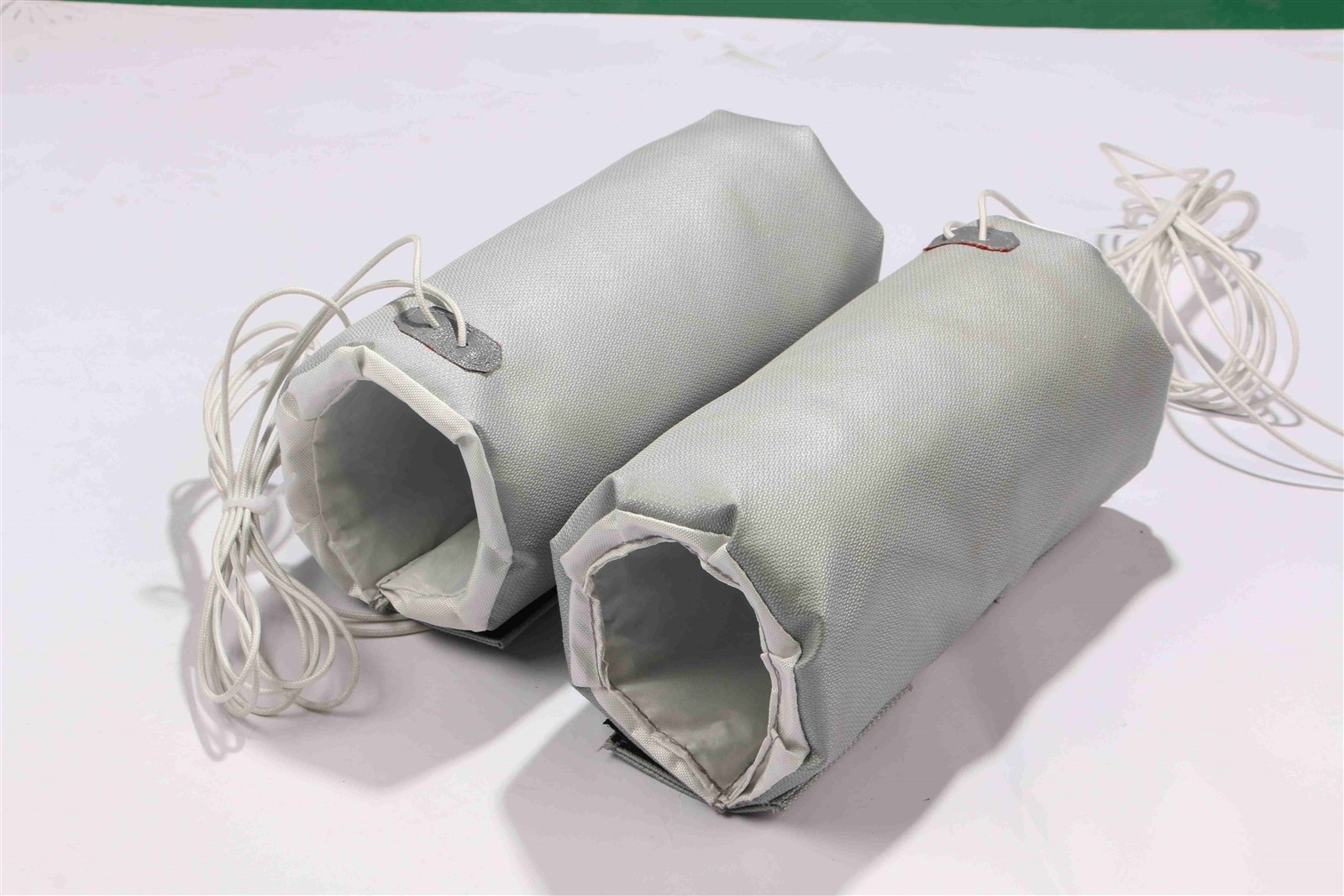

An Insulation Jacket is a multi-layer composite system. It typically consists of: 1) an outer layer for environmental protection (e.g., silicone-coated fiberglass); 2) a core insulation layer (e.g., ceramic fiber, aerogel felt); 3) an inner heat-reflective layer (e.g., aluminum foil); and 4) a quick-fastening system (hook-and-loop, straps). If heated, a heating layer is embedded. Its form is fully custom-made in 3D, tailored precisely to the complex contours of valves, pumps, pipes, or reactors for complete encapsulation.

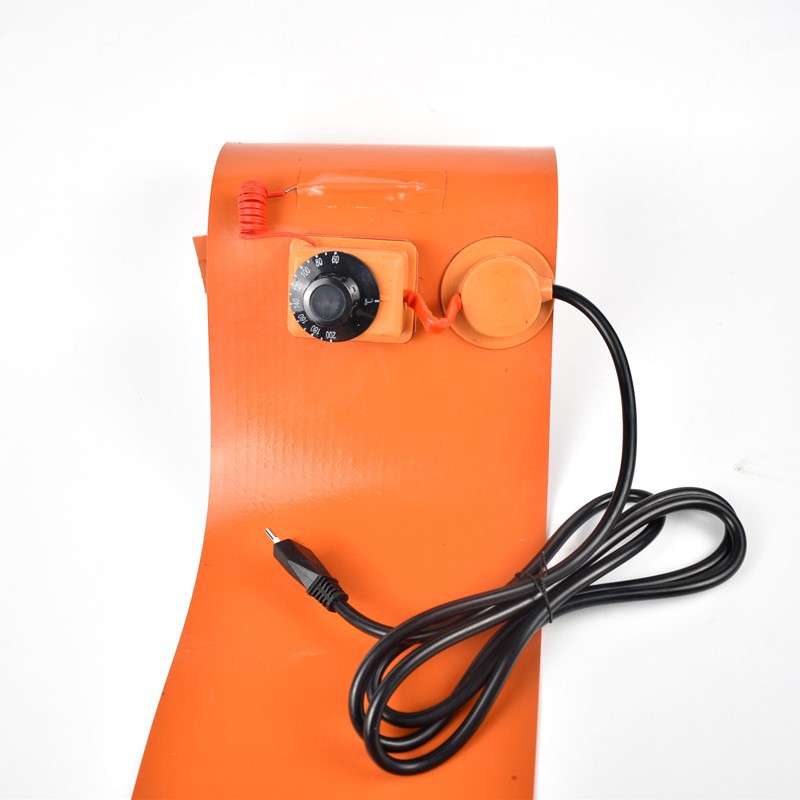

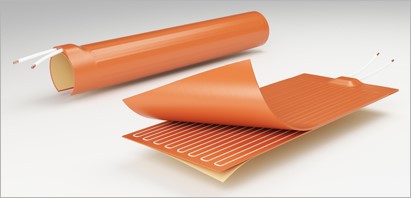

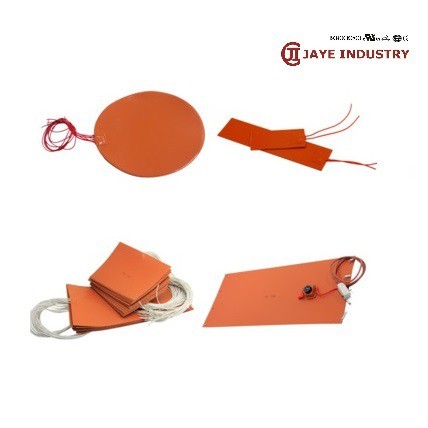

A Silicone Rubber Heater features a "sandwich" laminate structure: a precisely patterned metal heating circuit (etched foil or wire) is fully encapsulated between two layers of flexible, insulating silicone rubber. Its form is typically a 2-dimensional sheet or pad, made in rectangles, circles, or shapes to conform to simple curves. Its design is more standardized or semi-custom, centered on the layout of the heating circuit.
3. Core Advantages & Typical Applications
Their divergent strengths define their respective fields of use.
The primary advantages of an Insulation Jacket are:
- Superior Energy Efficiency: Excellent thermal resistance can reduce heat loss by 60-90%.
- Fundamental Safety: Reduces surface temperatures to safe-touch levels (often below 45°C), preventing burn hazards.
- Unmatched Maintenance Access: Allows for rapid installation and removal, facilitating inspection, cleaning, and servicing with minimal downtime.
- Perfect for Complex Geometries: Provides complete thermal insulation for any irregularly shaped equipment.
Therefore, typical applications for Insulation Jackets include: Steam lines and valves requiring personnel protection; chemical reactors or storage tanks needing process temperature maintenance or condensation prevention; equipment in food/pharmaceutical industries requiring frequent sanitation; and any complex component where traditional insulation is impractical.
The primary advantages of a Silicone Rubber Heater are:
- Excellent Heating Uniformity: Provides a consistent thermal profile across its surface due to its patterned circuit.
- Thin, Flexible, and Fast-Responding: Its minimal thickness and conformity allow for tight contact and rapid heat transfer.
- Good Environmental Resistance: Silicone material offers inherent resistance to moisture, many chemicals, and aging.
- Easy Integration & Control: Easily connected to controllers for precise temperature management.
Therefore, typical applications for Silicone Rubber Heaters include: Flat surfaces requiring even heat (medical analyzers, semiconductor chucks); freeze protection for outdoor equipment (camera housings, radomes); heat sources in commercial devices (espresso machine groups, 3D printer beds); and as embedded heating elements in aerospace assemblies.
In summary:
The choice is not about which is better, but about understanding their essence: The Insulation Jacket is the expert in temperature isolation and protection, while the Silicone Rubber Heater is the specialist in precise, uniform heat generation. Clarifying the primary need in your project-"retaining" versus "adding" heat-will lead to the most economical, efficient, and reliable technical selection.
