U Shape Finned Heaters

U shape finned air tubular heater are suitable for increased heat transfer surface area and where higher wattage is required. Electric U Shape Finned Tubular Heater is one of the traditional superior products of Jaye industry.
Chat Now

Product Details

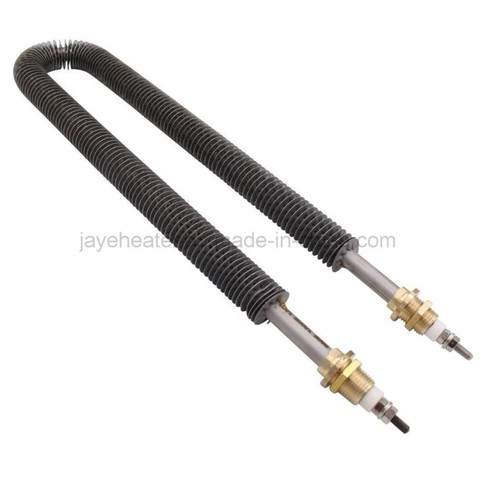

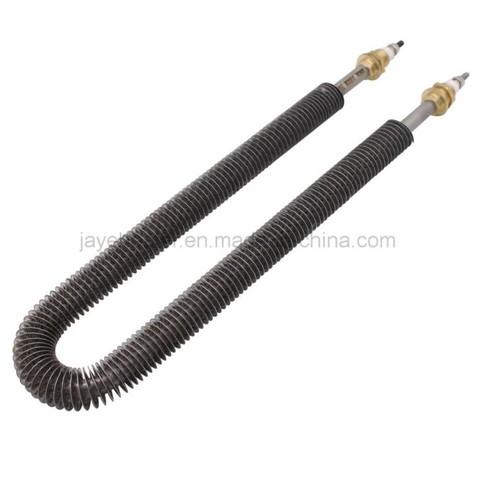

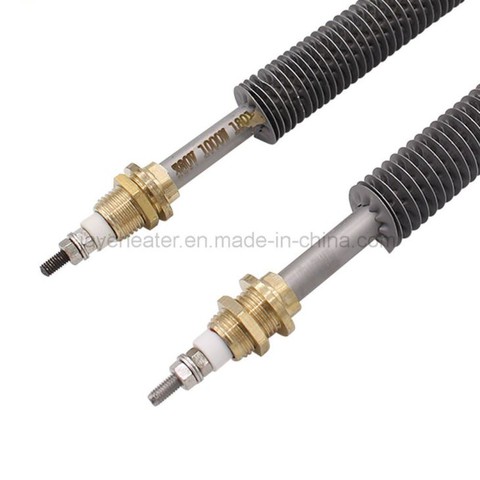

U Shape Finned Tubular Heater


U shape finned air tubular heater are suitable for increased heat transfer surface area and where higher wattage is required. Electric U Shape Finned Tubular Heater is one of the traditional superior products of Jaye industry. We use world-class high grade raw materials and high standard production processes (such as: sub-vacuum technology; superconducting technology) to ensure its quality. Finned Tubular Heater has a wide range of applications. It is commonly used in air, water, oil, acid and alkaline liquids, can be effectively proper for different kinds of environments, such as: air separation equipment, metallurgy, high temperature channel, medical equipment, environmental protection equipment, sewage treatment systems, heating systems, etc.

According to user requirements, a reasonable design is made by Jaye industry for easy installation. Products are widely used in machinery manufacturing, automotive, textile, food, home appliances and other industries, especially in the air curtain wind curtain industry.

image003image001


Power

Length L

Fin zone A

Fittings

500

200

170

M18*1.5

1000

450

420

M18*1.5

1500

700

670

M18*1.5

2000

950

920

M18*1.5

2500

1200

1170

M18*1.5

3000

1500

1470

M18*1.5




Material Recommend:

1. 201 Stainless steel

Conventional material Low price .It is suitable for most working environments. Temperature is less than 300°C.

2. 304 Stainless steel

Conventional material Moderate price The quality is better than 201 and can be used in a slightly corrosive environment. It can withstand 450 ° C.

3. 316 Stainless steel

High-quality material. The quality is better than 304. It can be used in the corrosive environment. Cost-effective Wide scope of application.



Applications of Tubular Heater :

* Plastic packaging

* Small mould heating

* Analysis instruments

* The industry

* Semiconductor eelectric welding

* Water and Oil Heating Appliances.


To order, please specify:



1. Size of the U shape Finned Heater need, Drawing be better if have.

2. Power,voltage

3. Working temperature.

4. Material requirement.

5. Screw size and tube diameter.

6. Quantity.
