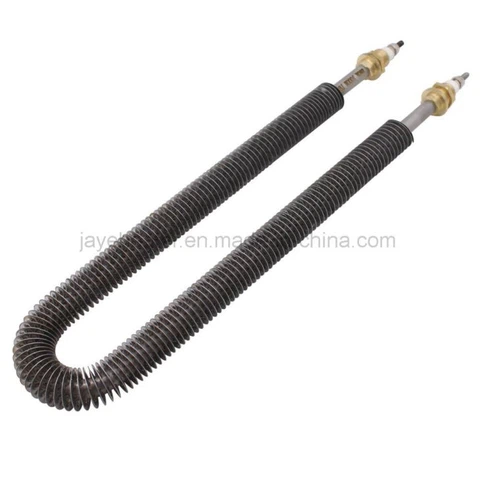

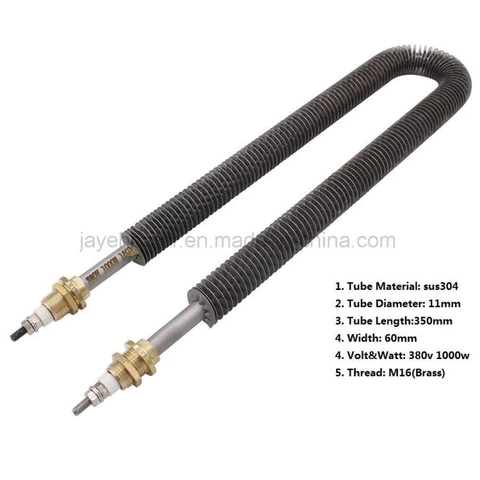

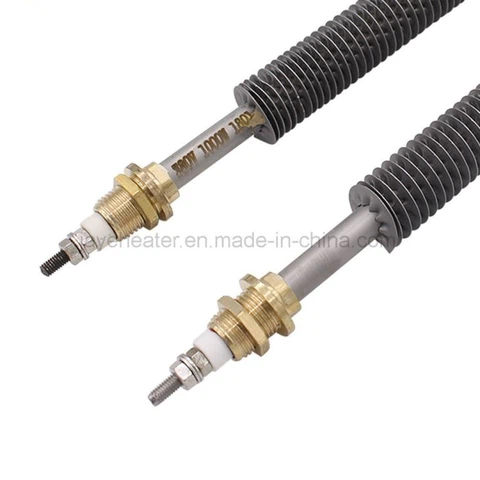

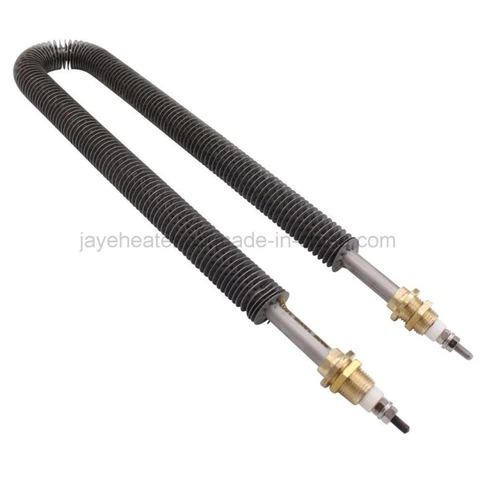

Stainless Steel Tubular Finned Strip Heater

Air condition finned strip (tubular) heater made by Jaye industry is constructed like basic tubular elements with the addition of continuous spiral fins, 4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit faster heat transfer to air, resulting in lower surface element temperatures.
Chat Now

Product Details

Air condition finned strip (tubular) heater made by Jaye industry is constructed like basic tubular elements with the addition of continuous spiral fins, 4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit faster heat transfer to air, resulting in lower surface element temperatures.



Finned Air Heater Technical Parameters

Sheath   material

SUS304.321.316,Incoloy800.840

Heat   intensity

Not   exceeding 30Wcm2 (advisable)

Tolerance   of length

+/-1.5%

Tolerance   of diameter

-0.01   a -0.06 m/m

Escape   of current (when cold)

<=0.1mA   a 242 v

Insulation   (when cold)

5   Min Ohmios 500 Watts minimum

Dielectric   strength

1500v.   1/seg

Tolerance   of cut of connexion

+/-15   mlm

Power   tolerance (w)

5   % - 10 %

Wattage   tolerance

+5   percent, -10 percent

 APP

Applications for Electric Strip Heater:

* Forced air heating for dryers, ovens, ducts
* Still air heating for ovens, comfort heating
* Incubators
* Ink drying
* Load bank resistors



Main Features:

Mild Steel sheath are suitable for operating temperature 500C;
2. Stainless steel sheath are suitable for operating temperature 700C;
3. Premium grade magnesium oxide insulation;
4. High temperature nickel chromium resistance wire;
5. Full brazed wound fin;
6. Standard and custom options available.

7.Virtually a limitless array of custom bend formation options, to include adapting heater element around space parameters – to maintain maximized efficient heating.
