Square Finned Heating Tube

​Finned type heating tube is mainly working in a dry burning operating environment, which divided into two finned shape. Compared with the normal heating element, due to the fins, it enlarges the radiating area and decreases the heat loss.
Chat Now

Product Details

Finned type heating tube is mainly working in a dry burning operating environment, which divided into two finned shape. Compared with the normal heating element, due to the fins, it enlarges the radiating area and decreases the heat loss.

 0

Specifications:

1. Sheath Material: stainless 304/316/321, Incoloy800/840

2. Heating Wire Material: FeCrAl/NiCr

3. Voltage: 24V-660V

4. Power: 50-15KW, customized

5. Tube Dia.:8mm~30mm or customized



The first type is winding fins, the second is square fins. What is the difference between them?

The square fin electric heating tube is better than the winding fin electric heating tube with good heat dissipation. Therefore, the making cost of square fin is more higher than winding type fin.

The above is the difference between them. Most of customers use the winding fins because of its low cost and simple production. But if you have the requirements for the elaborate heating devices, it is better than use the square finned heating tube.



Precautions for Square Fin Electric Heating Tube:

The distance between fin and fin should be about 5mm, we suggest that the length of the tube should not exceed 800mm, otherwise it will be more time-consuming to make and the cost will be higher. It is recommended to use stainless steel 304 material for the square fins when heating humid air, which is not easy to rust.

 Fin size

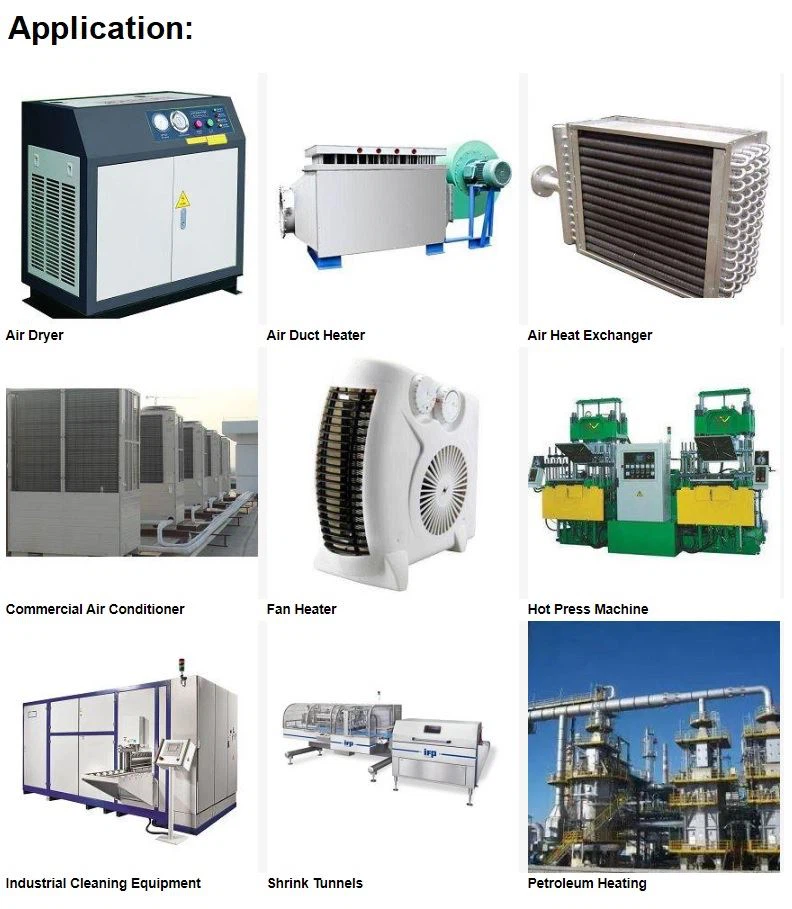

Application-Finned heater

Packing & Delivery

Quality-Finned Heater
