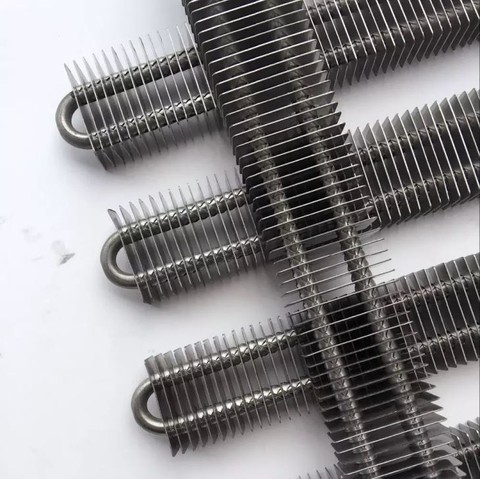

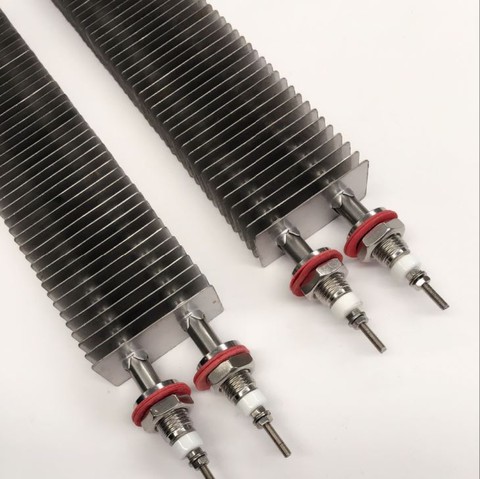

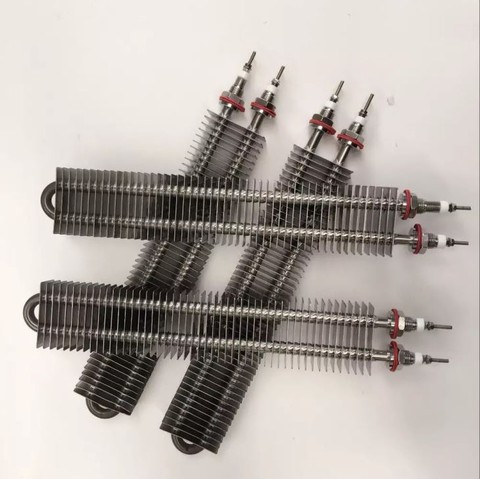

Rectangle Form Finned Heater

Rectangle fins are wound around tubular heater to increase the heating surface and improve the heating transfer capacity, We call this type of Finned tubular heater as rectangle form Finned heater.Rectangle Form Finned Heater are widely used in machinery manufacturing, automotive, textile, food, home appliances and other industries, especially in the air curtain wind curtain industry.
Chat Now

Product Details

Rectangle Form Finned Heater


Rectangle fins are wound around tubular heater to increase the heating surface and improve the heating transfer capacity, We call this type of Finned tubular heater as rectangle form Finned heater. The advantadge of the rectangle form finned heater compared with the ordinary tubular heater is that the heat loss of the tubular heater is reduced, and the utility model has the advantages of rapid temperature rise, uniform heat generation, good heat dissipation performance, high thermal efficiency, long service life, and can run at lower surface temperatures for the same watt densities when placed in identical air streams.

Rectangle Form Finned Heater are widely used in machinery manufacturing, automotive, textile, food, home appliances and other industries, especially in the air curtain wind curtain industry.

image001(001)


Technical Parameter



Tube diameter type (mm):Φ8.5, Φ10, Φ11,Φ12

Rectangle Fin dimension: 25*50mm or 40*80mm or as request.

Sheath material: Chrome nickel steel

Dist between fins : 5 -6 mm

According to user requirements, all the ractangle Form finned Heater can be made by Jaye industry!






Technical Data:

Surface loading: Upto 40 - 60 w/in2

Voltage: 110V- 480V

Surface temperature: 600oc maximum

Available diameters: 8mm, 11mm


Application:

•Radiant Heating

•Ovens

•Dryers

•Sealing

•Convection — Air and Gas

•Shrink Tunnels

•Dies and Manifolds

•Immersion Heating


To order, please specify:




1. Size of the Finned Heater need, Drawing be better if have.

2. Power,voltage

3. Working temperature.

4. Material requirement.

5. Screw size and tube diameter.

6. Quantity.
