Stainless Steel Base Thick Film Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of stainless steel base thick film heater in China, also supports custom service. Welcome to wholesale high quality stainless steel base thick film heater at competitive price from our factory.
Introduction
A stainless steel base thick film heater is a new type of heating device made of thick film screen printing process, printing insulating medium, heating resistance, conductor, glass protective glaze and other materials on stainless steel substrate, and sintering at high temperature
| max. temp. | 550°C |
| power density | up to 11.6W/cm2 |
| voltage range | up to 240V depending on the heater size |
| max.length | 610mm |
| min.length | 57mm |
Characteristic
A stainless steel base thick film heater from inside to outside, it is mainly composed of stainless steel pipe base material, internal insulating medium layer, resistance heating layer and external insulating medium layer. Water flows through the stainless steel pipe. The thickness of the internal insulating medium layer is about 100 microns. Due to the short heat conduction distance from the resistance heating layer to the stainless steel base, the thermal resistance is very small and the thermal response speed is fast. The application advantage is that the thick film heating tube can be heated 360 degrees as a whole, and the overall heating is relatively uniform, so the heating efficiency will not be reduced due to a large number of bubbles on the surface of the heater. Because the heat can be transmitted in time, the surface temperature of the whole heating pipe is not high and will not cause open fire. Good safety and long service life.
Advantages
High power density
Small size
No power attenuation
Fast thermal response
Not easy to scale
The heat conversion rate is more than 95%
Scope of Application

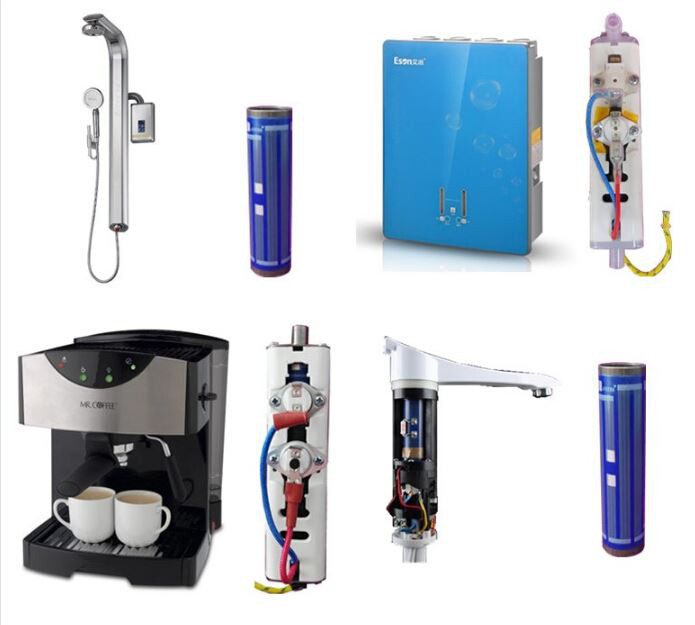

Stainless steel base thick film heaters are widely used in household electric kettle, electric coffee pot, electric water heater, electric hair board, electric iron, humidifier, etc
