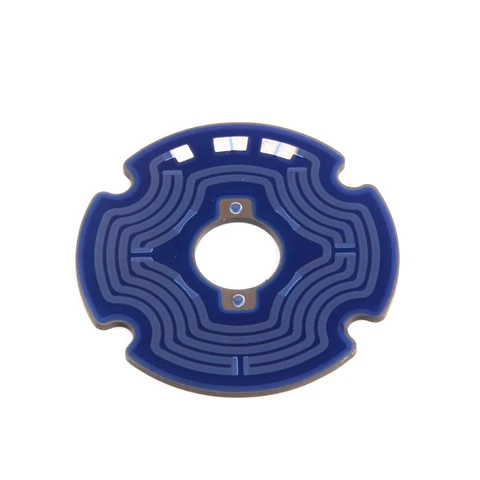

Thick Film Stainless Steel Based Heater

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of thick film stainless steel based heater in China, also supports custom service. Welcome to wholesale high quality thick film stainless steel based heater at competitive price from our factory.

Jaye's thick film stainless steel based heater is a new type of heating device made by using thick film screen printing process, printing insulation medium, heating resistance, conductor, glass protective glaze and other materials on the stainless steel substrate, sintering through high temperature, the heating speed can achieve 250 ℃ per second, more than twice as fast as the traditional heater. It is widely used in household electric kettle, electric coffee pot, electric water heater, electric hair board, electric iron, humidifier, etc.

Product Features:

-Adopting thick film technology, with mature technology, safe and reliable.

-New non-metallic material, suitable for bonding on stainless steel plate, easy to install the product, reliable, stable, lead-free and non-toxic performance.

-Strong insulation effect, up to 3750V resistance, the design standard is 1500V, to ensure the safety of electricity.

-The bimetal burst type temperature controller with patented technology is stable in control and has a life span of more than 100,000 times.

-Special plating material makes the heating plate with strong corrosion resistance, easy to clean and other advantages or grinding and polishing, so that the steel plate boiling water surface beautiful and generous.

-Flexible design, direct use of stainless steel plate, the shape and size can be determined according to different designs, power requirements can reach more than 3000W.

-Heating temperature rise quickly, low heat capacity, small temperature fluctuations, burning 1 cup of 250ML water only takes 20 seconds, the temperature rise time is much lower than the traditional heater. For DC3.5V with a travel hairpin to reach 180 ℃ more than twice as fast as the traditional PTC, and the battery life time is twice as long as the PTC.

-Efficient energy saving, can reach 70~99%, heating time is lower than the traditional heater 60 seconds, and the thermal efficiency can reach 99%. Especially for the low voltage 24V or less dry battery use travel hairpin, low voltage toy heater, low voltage humidification heating apparatus and other products use the effect is particularly significant, not only heating fast, and long service life, than the same PTC or heating wire heater use time more than double.
