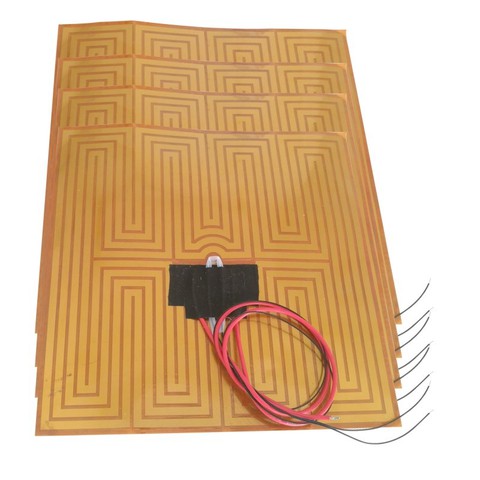

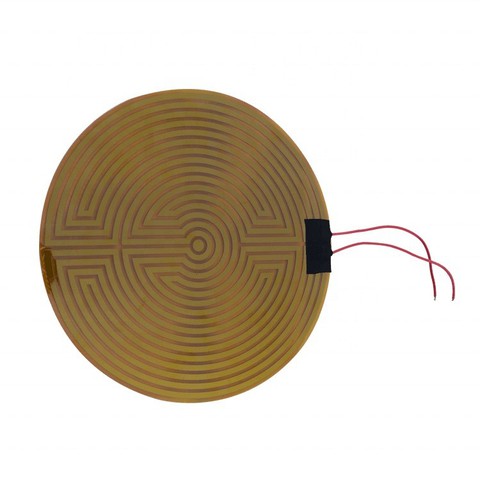

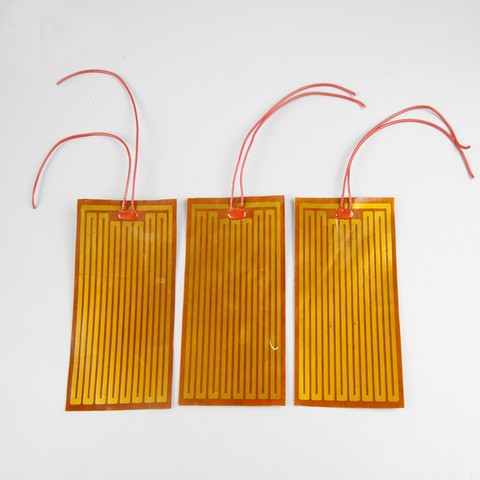

High Thermal Kapton Foil Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of high thermal kapton foil heater in China, also supports custom service. Welcome to wholesale high quality high thermal kapton foil heater at competitive price from our factory.
Polyimide heater is a thin, translucent material, has excellent dielectric strength. In the narrow space or require lighter, heater exposed to vacuum, oil or chemicals application environment, polyimide heaters are ideal. Compared with silicone heating film, PET film or ceramic electric heating film, polyimide is more compact.
Specification
| Product name | Polyimide Heating Film |
| Working Temperature | ≤150 ºC |
| Thickness | 0.127-0.254mm |
| Width Range | 10mm-500mm |
| Termination Stype | standard type or plug terminal, ceramic block terminal and lead wire terminal. |
| Max Size | 400x350mm(hot-press) 400x2000mm(cold-stick) |
Advantage
High-Temperature Resistance
It has an exceptional glass transition temperature (Tg) typically above 360°C and can withstand continuous use at temperatures ranging from -269°C to over 400°C without melting.
High Tensile Strength and Modulus
It exhibits great resistance to tearing and stretching, providing structural integrity in thin layers.
Low-Temperature Performance
It remains flexible and does not become brittle even at cryogenic temperatures, making it suitable for space applications.
Radiation Resistance
It offers good resistance to alpha, beta, and gamma radiation, which is crucial for aerospace and nuclear applications.
Application
- Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
- Stabilize optoelectronic components
- Test or simulate integrated circuits
- Enable cold weather operation of outdoor electronics such as laptop, ATM, LCD's
- Protect aircraft electronic and mechanical devices in cold weather / area.
How to order
If you are interested in mica band heater, please share information as below:
- Quantity
- size(length *width)
- power
- voltage
- drawing/photos
