U-Shaped Quartz Infrared Heating Lamp

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of u-shaped quartz infrared heating lamp in China, also supports custom service. Welcome to wholesale high quality u-shaped quartz infrared heating lamp at competitive price from our factory.

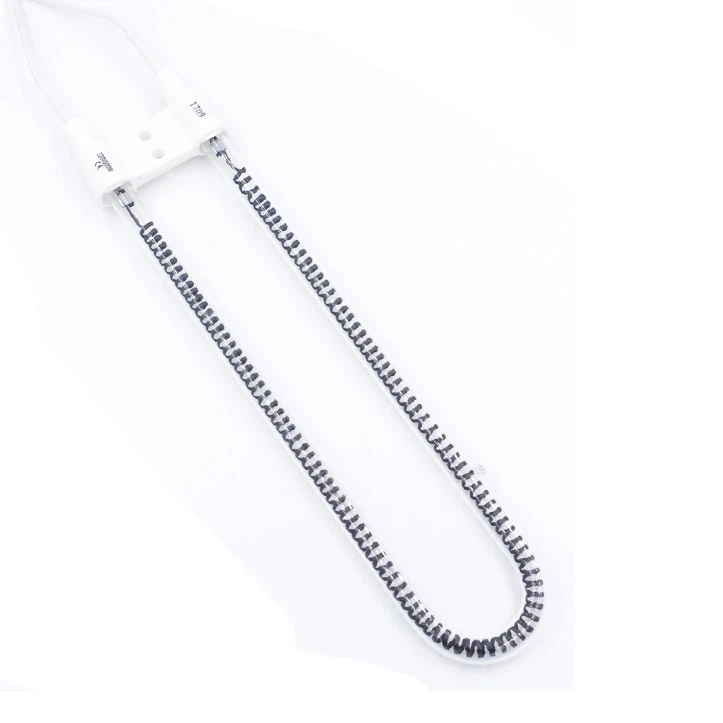

A U-shaped quartz infrared heating tube is an electric radiant heater made with a quartz tube formed into a U-shaped configuration.

The heating element is positioned inside the quartz tube. When electrical power is applied, the internal element generates heat and emits infrared radiation. The quartz material allows infrared energy to pass through and radiate toward the target surface.

The U-shaped design makes it possible to place two parallel heating sections within the same installation area.

This can be useful when:

• Installation space is limited
• A longer effective heating length is required
• Both electrical terminals need to be located on the same side
• The heater needs to follow a specific equipment layout
• A compact radiant heating arrangement is required

The final construction can vary depending on the heating technology and application requirements.

The working principle of a quartz infrared heating tube is based on the conversion of electrical energy into thermal energy and infrared radiation.

When the heater is energized, the internal heating element begins to generate heat. As the temperature of the heating element increases, infrared energy is emitted.

The quartz tube serves as the outer heating structure and allows the infrared radiation to reach the target area.

Instead of relying entirely on convection to heat the surrounding air, infrared radiation can transfer energy directly to the surface of an object.

The basic heating process can be described as:

Electrical Energy → Heating Element → Thermal Energy → Infrared Radiation → Heated Object

The actual heating performance depends on several factors, including the heater power, heating element type, distance from the target, material being heated and operating environment.

The U-shaped configuration is one of the main features of this type of heating tube.

In many machines, the available installation length is limited. A straight quartz heating tube may require more space than the equipment can provide.

By bending the tube into a U-shape, the heating path can be arranged more compactly.

1. More Heating Length in a Compact Space

The U-shaped structure allows two heating sections to run parallel to each other.

This makes it possible to achieve a longer effective heating path without requiring the same overall installation length as a straight tube.

For compact machines, this can be an important design advantage.

2. Both Terminals Can Be Positioned on One Side

Another practical feature of the U-shaped design is that both electrical connection points can be located at the same end.

This can simplify wiring and installation, especially in equipment where access is available from only one side.

The actual terminal structure can be customized according to the customer's equipment.

3. Suitable for Custom Equipment Layouts

Not all heating equipment uses a standard rectangular installation space.

Some machines require the heater to follow a specific mechanical structure or fit around other components.

A U-shaped quartz heating tube can provide more flexibility than a standard straight heating tube in these situations.

U-shaped quartz infrared heating tubes can be used in equipment where radiant heat needs to be delivered efficiently within a limited installation space.

Typical applications include:

Plastic Processing Equipment

Infrared heating can be used for heating, softening or processing plastic materials.

Depending on the equipment, the heating tube can be installed above, below or around the target material.

Thermoforming Equipment

In thermoforming applications, plastic sheets need to be heated before forming.

Quartz infrared heating tubes can be arranged in heating zones to provide radiant energy to the material.

Printing and Coating Equipment

Infrared heating is commonly used in processes involving drying or curing inks, coatings and surface treatments.

The heater configuration can be designed according to the width and layout of the equipment.

Food Processing Equipment

Certain food processing and warming equipment may use infrared heating for surface heating or controlled thermal processing.

The material and construction requirements should be evaluated according to the specific application.

Industrial Drying Equipment

Infrared heating can be used to remove moisture or accelerate the drying process for different materials.

Laboratory and Testing Equipment

Compact infrared heating elements may also be used in testing equipment or specialized heating systems.

Custom Industrial Machinery

For OEM equipment manufacturers, the U-shaped structure can be developed according to the available installation space and required heating area.

The main difference between a U-shaped tube and a straight tube is not simply the appearance.

The shape can affect installation, heating coverage and electrical connection layout.

To evaluate a custom U-shaped quartz infrared heating tube, the following information is helpful:

1. Product drawing or reference photo

2. Overall dimensions

3. Tube diameter

4. Heating length

5. Voltage

6. Power

7. Application

8. Quantity

Based on the available information, the heater structure can be evaluated and customized for your equipment.

Send us your drawing or specifications to discuss a custom quartz infrared heating solution.
