PTC Single-Ended Cartridge Heater

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of ptc single-ended cartridge heater in China, also supports custom service. Welcome to wholesale high quality ptc single-ended cartridge heater at competitive price from our factory.

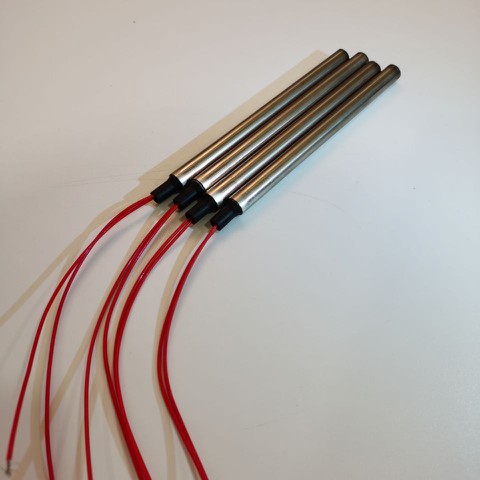

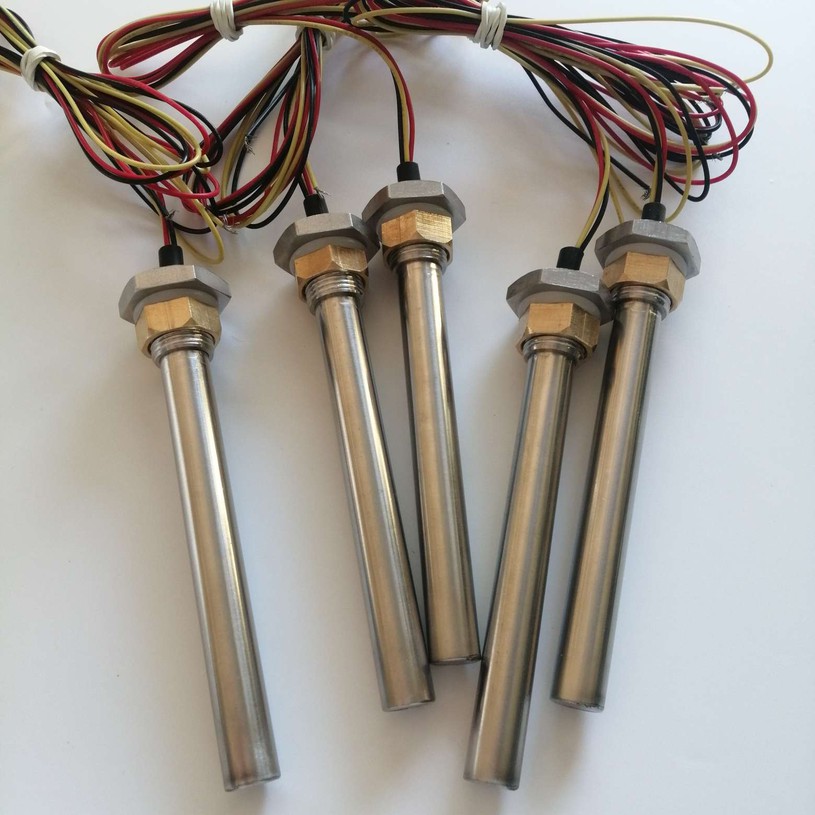

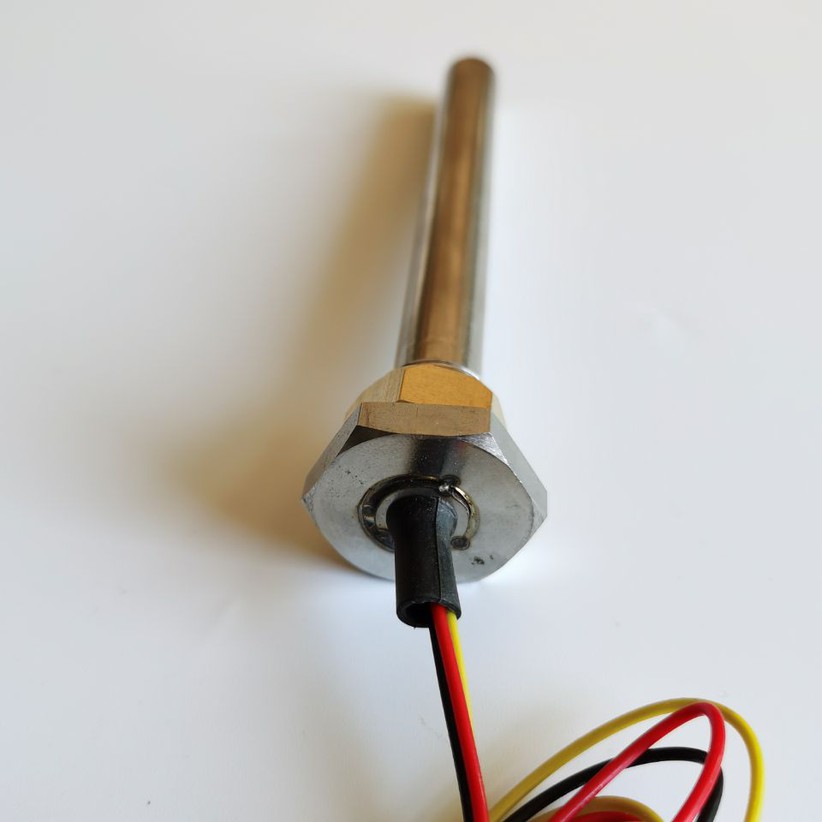

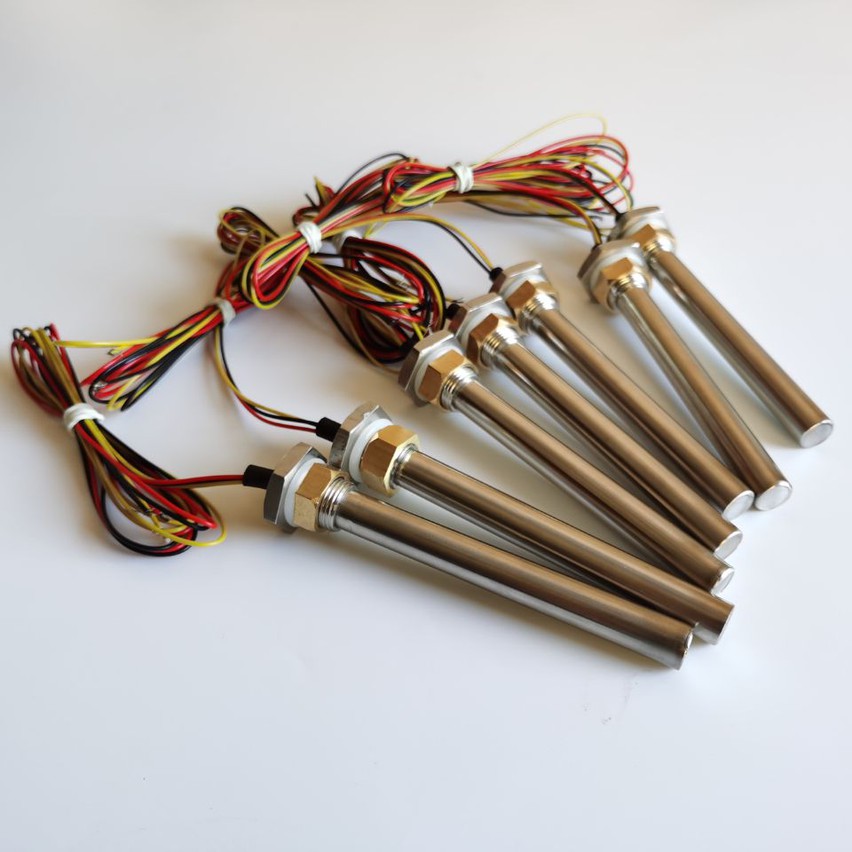

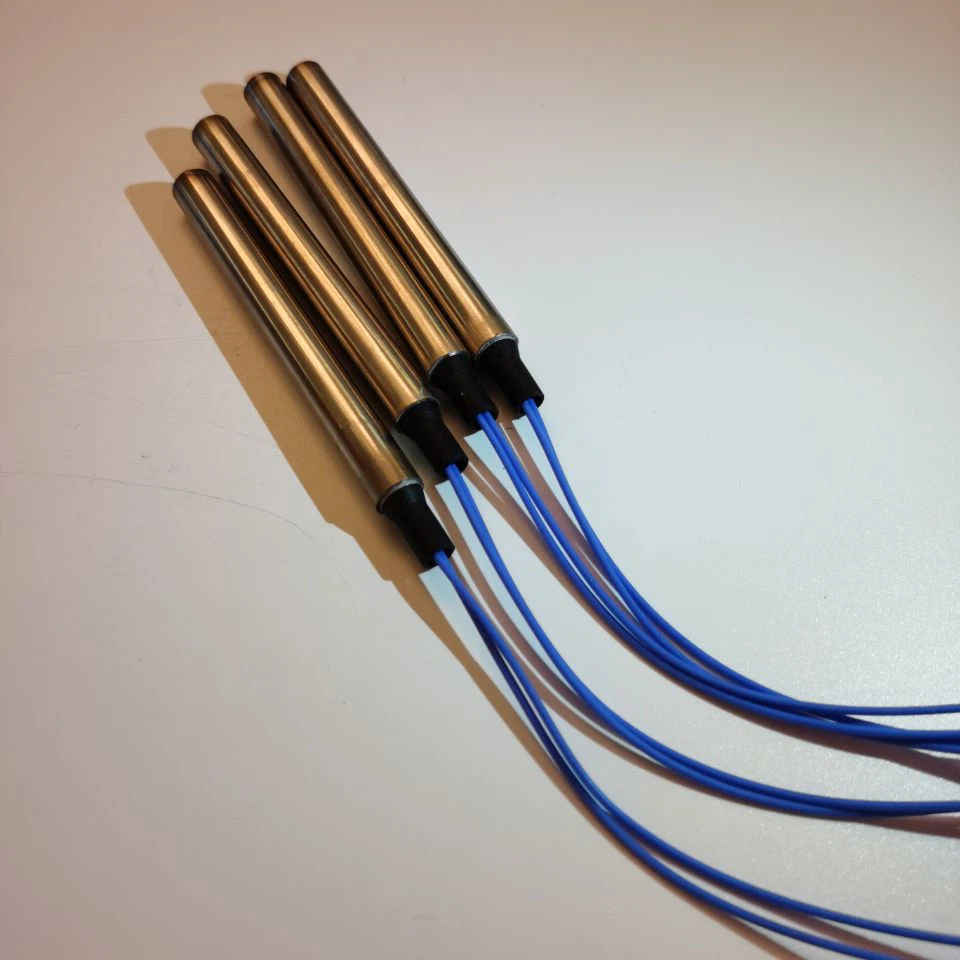

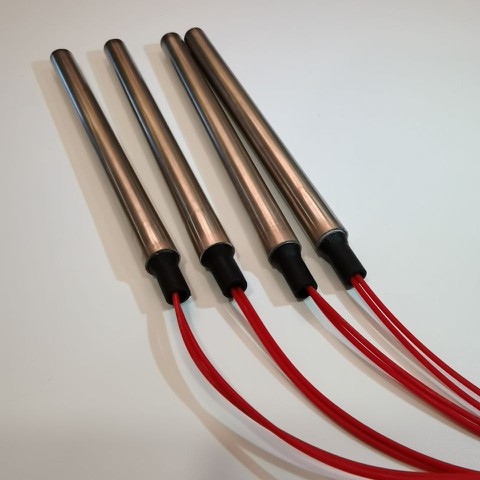

A PTC cartridge heater is a tubular electric heater that uses a Positive Temperature Coefficient heating element as the internal heat source.

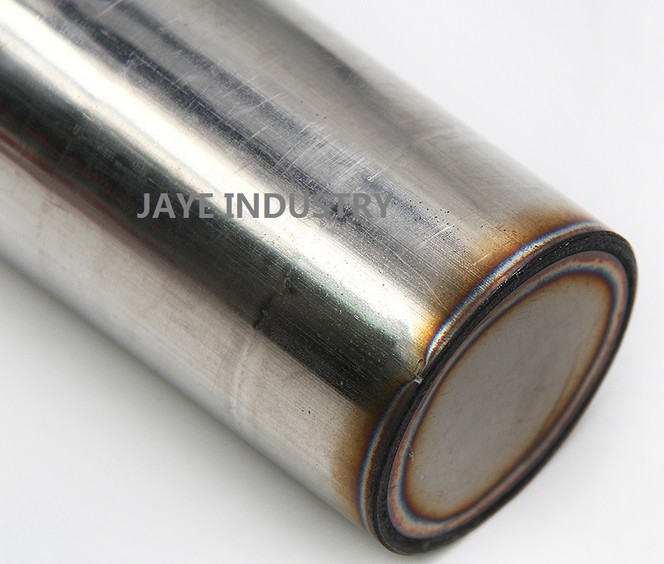

The outside of the heater is usually a metal tube, while the internal PTC element generates heat after electrical power is applied.

The leads are located at one end of the tube, which is why this type of product is also commonly described as a single-ended PTC heater.

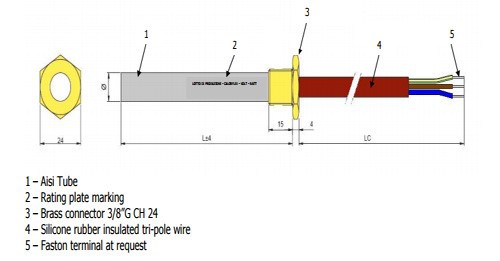

Its basic structure can include:

• Metal outer tube
• PTC heating element
• Internal insulation materials
• Electrical connection components
• Single-ended lead wires
• End sealing or protective components

The exact internal construction can vary according to the required diameter, length, voltage, power and application.

The heating process begins when electrical power is supplied to the PTC element.

At lower temperatures, the PTC material allows current to pass and generates heat. As its temperature rises, the electrical resistance of the material increases.

This characteristic can reduce the current flow as the PTC element approaches its designed operating temperature range.

The heating process can be described simply:

Electrical Power → PTC Heating Element → Metal Tube → Heated Surface

The metal tube transfers heat from the internal heating element to the surrounding object, air or mounting surface.

Unlike a conventional resistance-wire heater, the PTC element has a temperature-dependent resistance characteristic. However, the actual operating temperature of the complete heater can still be affected by heat dissipation, installation conditions and the surrounding environment.

The main feature of a PTC heating element is its positive temperature coefficient characteristic.

As the temperature of the PTC material increases, its electrical resistance also increases.

This means the electrical behavior of the heating element changes with temperature.

In a suitable application, this characteristic can provide a more stable heating response compared with a conventional resistance heating element operating under the same conditions.

The advantages of a PTC heating structure may include:

• Temperature-dependent resistance
• Compact heater design
• Rapid heating response
• Simple electrical connection
• Suitable for customized heating systems
• Single-ended installation

The actual performance will depend on the complete heater design rather than the PTC element alone.

PTC cartridge heaters can be used in a range of applications where compact electric heating is required.

Typical applications may include:

• Metal heating blocks
• Small heating chambers
• Laboratory equipment
• Industrial machinery
• Temperature maintenance systems
• Electronic equipment
• Compact heating devices
• Customized OEM equipment

The final application should determine the heater dimensions, voltage, power and operating temperature.

To evaluate a custom PTC cartridge heater, customers can provide:

• Product drawing or reference photo
• Required diameter
• Overall length
• Heating length
• Installation hole dimensions
• Voltage
• Required heating performance
• Application
• Operating temperature
• Required quantity

If a drawing is available, it is usually the best starting point for evaluating the heater structure.

How quickly does a PTC cartridge heater heat up?

The heating time depends on the heater size, voltage, heating capacity, installation method and the material being heated.

A heater installed inside a metal block will have different heating behavior from the same heater operating in open air.

What is the maximum operating temperature?

The maximum operating temperature depends on the PTC material, heater construction and application conditions.

Customers should provide the required operating temperature before the heater design is confirmed.

Can the lead wires be customized?

Yes. The lead wire length, wire type and connection method can be customized according to the installation requirements.

Can both AC and DC voltage be used?

This depends on the specific PTC heating element and electrical design.

Customers should provide the required power supply, such as AC or DC voltage, before production.

For customized applications, providing a drawing, dimensions and electrical requirements is the best starting point for developing a suitable PTC cartridge heater.
