Mica Flat Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of mica flat heater in China, also supports custom service. Welcome to wholesale high quality mica flat heater at competitive price from our factory.
Mica Flat Heater

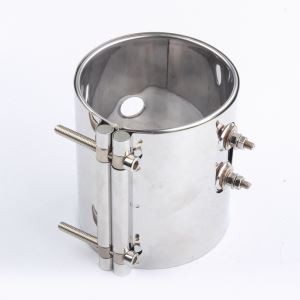

It was made of stainless steel sheet, mica sheet, resistance wire/ strip , stainless steel sheet standard thickness is 0.3mm to 0.5mm, and in the middle , resistance wire/ strip wrap around the mica sheet, and add 1-2 pieces mica sheet again each side for insulation. They can be made to be many different kinds of shape as your requirement. Our mica band heater can be made to be 110V 220V 380V also can be made to be DC voltage.
Specification:
1. Power Tolerance: +5% to -10%
2. Resistance: -5% to +10%
3. Insulation Resistance (Cold): ≥20 MΩ
4. Sheath Material: Stainless Steel cover ,High Temperature Plate
5. Connection Method:
(1）Metal box
(2）Screw post terminals
(3）High Temperature Plug
(4）High temperature cable
(5）Ceramic block
6. Nominal Wall Thickness:
(1）Premium Heat : ½"
(2）Power Saver : ½" + 5/8" (Outer Insulation)
(3）Power Saver PLUS :½" + 1.5" ( Outer Insulation)
(4）Heating Elements (coil): NiCr 80:20
7. Lead Wire Terminals:
(1）Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat shrink sleeving
(2）Plain lead wire: straight lead exit/ exiting both sides of the gap/ used 3.mostly with nozzle heaters/ 180° from gap
(3）PTFE insulated wire
(4）Fiberglass insulation wire
Key Features:
» Top quality mica of various thicknesses
» Maximum sheath temperature: 1200°F
» External metallic sheath includes a special alloy
» Broad range of construction designs, clamping mechanisms, and electrical terminal types
Application:
» Injection molding
» Blow-molding
» Plastic extrusion
» Container, pipe, or tank heating
» Process applications
