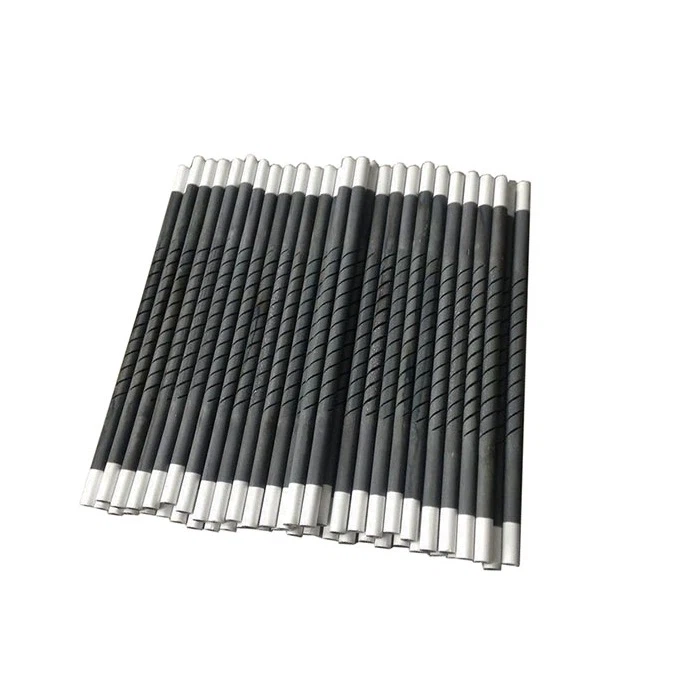

Silicon Carbide Rods For Furnace Kiln
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of silicon carbide rods for furnace kiln in China, also supports custom service. Welcome to wholesale high quality silicon carbide rods for furnace kiln at competitive price from our factory.
Product Overview
Silicon Carbide Rods for Furnace Kiln are non-metallic electric heating elements designed for high-temperature applications. They are available in various shapes, including equal-diameter, U-shaped, racket-shaped, and door-shaped designs.
Made from high-purity green silicon carbide, they offer high-temperature resistance, good oxidation and corrosion resistance, and stable performance over long-term use. They are also easy to install and replace.
With advanced cold-end processing technology, our SiC heating elements provide a better hot-to-cold resistance ratio, helping reduce heat loss and extend service life.
They are commonly used in high-temperature furnaces for ceramics, glass, metallurgy, powder metallurgy, magnetic materials, and other industrial processes.
Products Parameters
| Parameter | Specification |
|---|---|
| Material | Silicon Carbide (SiC) |
| Shape | Straight, U-shaped, W-shaped, Racket-shaped, Door-shaped, etc. |
| Diameter | 10 / 11 /12mm and support customized |
| Operating Temperature | Up to 1600°C |
| Voltage / Power | Customized according to application requirements |
Applications of Silicon Carbide Heating Elements
| Application | Typical Uses |
|---|---|
| Ceramic Industry | Ceramic firing, sintering and kiln heating |
| Glass Industry | Glass melting, annealing and feeder furnaces |
| Metallurgy & Metal Processing | Heat treatment, annealing and metal processing |
| Powder Metallurgy | Sintering of metal powders and magnetic materials |
| Electronics & Semiconductor | High-temperature processing and sintering |
| Laboratory & Research | Laboratory and high-temperature test furnaces |
Key Advantages
| Key Feature | Description |
|---|---|
| Multiple Element Shapes | Available in straight, U-shaped, W-shaped, racket-shaped, door-shaped and other configurations. |
| Customized Dimensions | Diameter, overall length, hot zone and cold end can be made to suit different furnace layouts. |
| Flexible Electrical Specifications | Resistance, voltage and power can be matched to the heating system requirements. |
| Easy Element Replacement | The self-supporting design makes installation and replacement relatively straightforward. |
| Flexible Installation | Suitable for both horizontal and vertical furnace arrangements. |
| Various Cold-End Options | Cold-end length and connection configurations can be adjusted according to installation requirements. |
FAQ
1. What is a silicon carbide heating element used for?
It is mainly used in high-temperature furnaces and kilns for ceramics, glass, metallurgy, powder metallurgy and other industrial heating applications.
2. What operating temperature can a SiC heating element reach?
SiC heating elements can operate at high temperatures of up to around 1600°C, depending on the element design and furnace conditions.
3. Can silicon carbide heating elements be customized?
Yes. Diameter, length, hot zone, cold end and electrical resistance can be customized according to the furnace and heating requirements.
