Polyimide Kapton Heater Tape
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of polyimide kapton heater tape in China, also supports custom service. Welcome to wholesale high quality polyimide kapton heater tape at competitive price from our factory.
Polyimide Kapton Heater Tape is a clear, amber-colored polyimide film that comes in a variety of shapes, sizes, and wattages. Etched Foil Silicone heaters share a similar manufacturing procedure for flexible heating film. It is a flexible heating element that works well at high temperatures and has good dielectric properties. It can be used in temperatures anywhere from -185 degrees Celsius to 180 degrees Celsius.
Flexible heating film for a 36V, 24V, and 12V 3D printer can be made to your specifications. Due to its lightness and thinness (about 0.1 millimeters), it is frequently utilized in 3D printers.
The backing surface is pressure-sensitive adhesive (PSA), but special adhesives or mounting holes can be made to meet the needs of the customer.
Specifications of Polyimide Kapton Heater Tape
| Sizes | Custom,consult Jaye Heater for your application requirements |
| Standard Thickness | 007" (0.18-0.2mm) |
| Maximum Watt Density | 50 W/in² (depending on application, consult Jaye for higher densities) |
| Standard Dimensional Tolerances | Less than 12" ± .062, Greater than 12" ± .125 |
| Maximum Operating Temperature | 450F (232℃) |
| Minimum Operating Temperature | -319F (-195℃) |
| Wattage Tolerance | ±5%~±10% |
| Dielectric Strength | 1000 VAC |
| Voltage | 3.7-220V |
| Power | Designed according to environment |
Polyimide Kapton Heater Tape Design Advantages:
In addition to being lightweight, polyimide kapton heater tapes also provide the following advantages:
- Precise heat distribution and zoning with intricate etched foil heating elements.
- Ultra-thin profile at a typical 0.007” (0.18mm) value that promotes efficient heat transfer to parts.
- Very low outgassing for applications that do not tolerate contamination.
- High solvent and chemical resistivity.
- Ideal for extreme temperature environments such as vacuum and space applications.
- Semi-Transparent film allows easy visual inspection of parts and internal structures

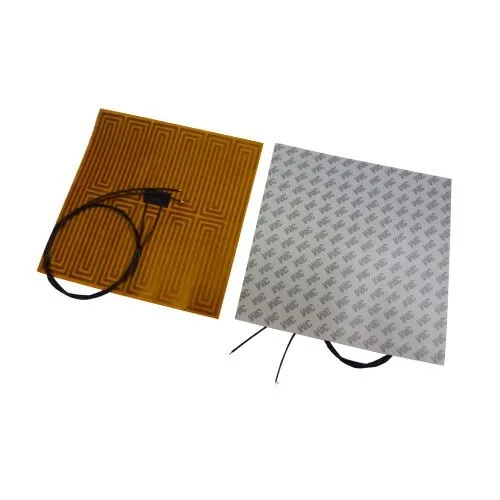

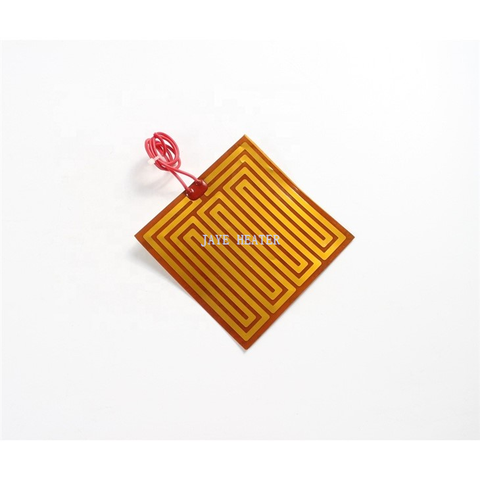

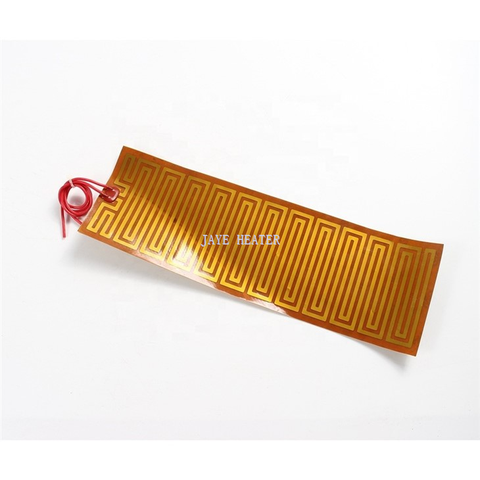

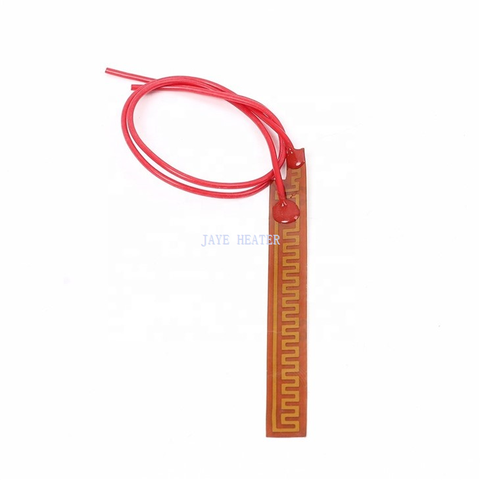

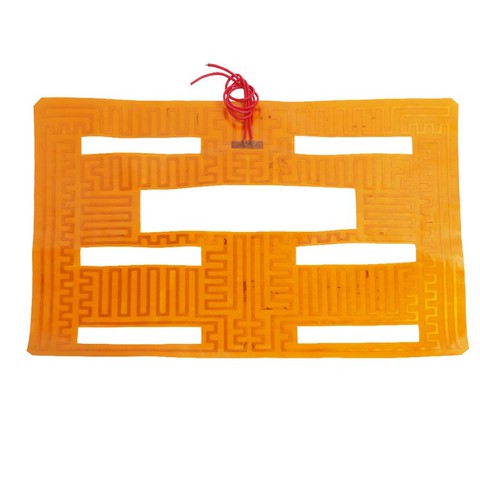

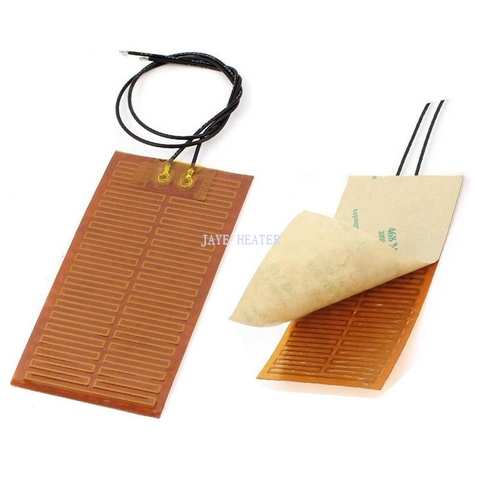

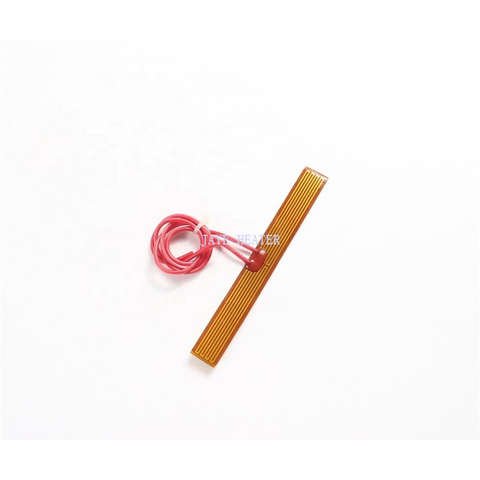

Detailed images
Applications of Polyimide Kapton Heater Tape
- Medical diagnostic instruments and analyzers
- Maintain warmth of satellite components
- Protect aircraft electronic and mechanical devices against cold at high altitudes
- Stabilize optoelectronic components
- Test or simulate integrated circuits
- Maintain constant temperature in analytic test equipment heating output to improve processing yields and productivity
