KFC Deep Fryer Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of kfc deep fryer heater in China, also supports custom service. Welcome to wholesale high quality kfc deep fryer heater at competitive price from our factory.

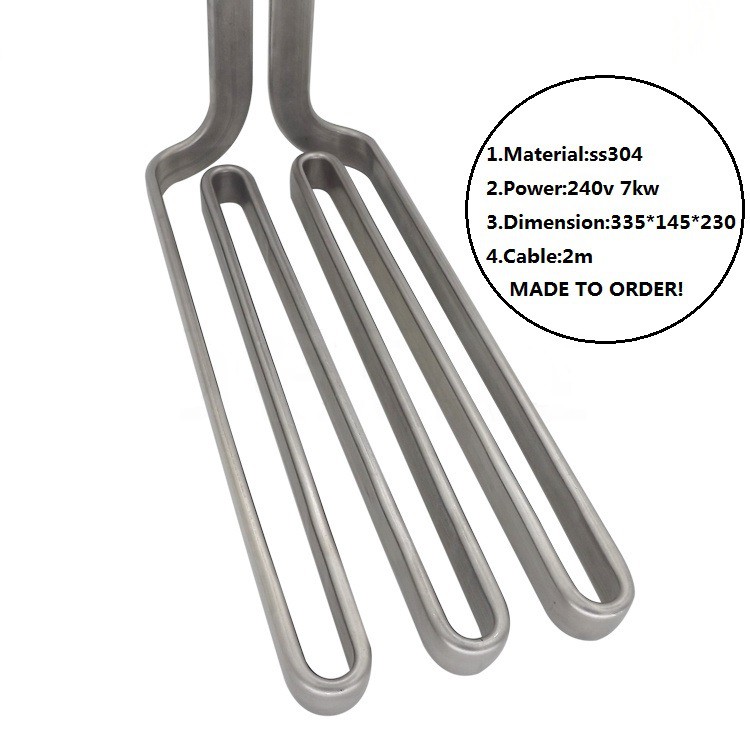

KFC Deep Fryer Heater is typically manufactured as a custom-shaped tubular heating element, allowing the heating tube to be designed according to the fryer tank, installation space, power requirement, and mounting structure.
It is suitable for commercial foodservice equipment and demanding continuous-heating applications where stable temperature control and reliable operation are required.
Specification
| Product name | Deep Fryer Heating Element |
| Voltage | Customized, typically 110–240V AC |
| Power | Customized according to fryer capacity |
| Tube Material | Stainless Steel / Incoloy |
| Heating Wire | Nickel-Chromium (NiCr) Resistance Wire |
| Mounting | Flange / threaded fixing / customized mounting |
Note: The actual voltage, wattage, dimensions, tube diameter, material, terminal configuration and mounting structure are customized according to the customer's fryer model and technical drawing.
Commercial fryer heating elements are available in different shapes and power ratings. For example, commercial fryer elements on the market can range from approximately 1 kW to several kW, depending on fryer size and design.
Basic Structure
Nickel-Chromium Resistance Wire
The resistance wire generates heat when electrical current passes through it.
Metal Sheath
The heating wire and insulation are enclosed inside a metal tube. Stainless steel is commonly used for fryer heating elements because of its durability and resistance to the operating environment.
Magnesium Oxide (MgO) Insulation
High-purity magnesium oxide surrounds the resistance wire and provides electrical insulation while allowing efficient heat transfer.
Formed Heating Tube
The tubular heater can be bent into different shapes to match the geometry of the fryer tank and maximize the effective heating area.
Application
• Commercial Deep Fryers
• Fast-Food Restaurant Fryers
• Restaurant and Hotel Kitchen Equipment
• French Fryers
• Chicken Fryers
• Food Processing Equipment
• Commercial Catering Equipment
• Industrial Frying Equipment
• OEM Fryer Equipment
• Replacement Heating Elements for Fryers
They can be used for frying French fries, chicken, fish, seafood, onion rings, donuts and other fried foods.

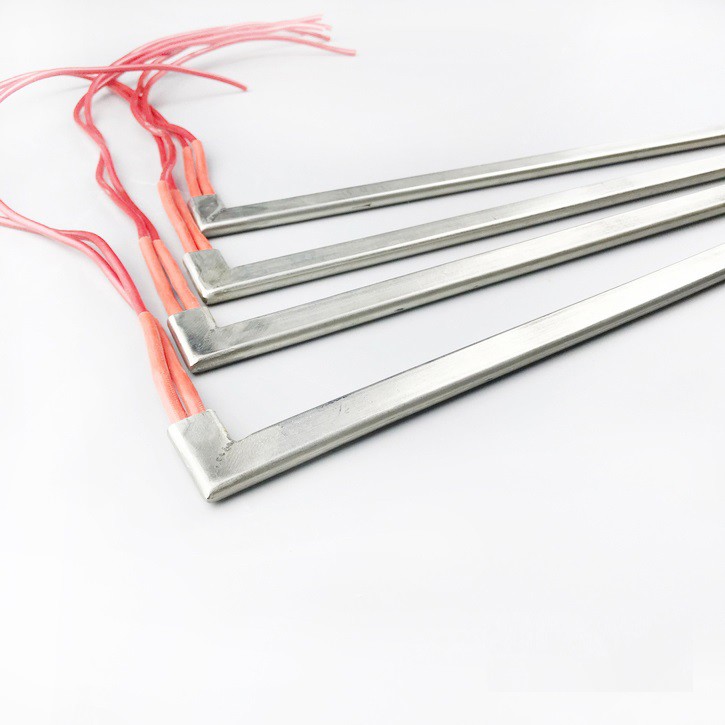

For high-volume commercial kitchens, reliable heating elements are especially important because the fryer may need to recover oil temperature quickly after food is added. Flat and tubular heater designs can be engineered to improve heat transfer and suit different fryer configurations.
Frequently Asked Questions
Q1: Is the deep fryer heater a standard product?
A: Most commercial fryer heating elements are application-specific. Jaye Heater mainly provides customized heating elements based on the customer's drawing, sample, fryer model or technical requirements.
Q2: What information is required for a quotation?
A: Please provide the following information whenever available:
• Voltage
• Power
• Quantity
• Overall dimensions
• Tube diameter
• Material requirement
• Heater shape or drawing
• Terminal type and position
• Mounting method
• Fryer model or application
A drawing or clear product photo with dimensions is highly recommended.
Q3: Can you manufacture the heater according to our existing sample?
A: Yes. We can use an existing sample as a reference for dimensions, shape, terminals and mounting structure and develop a customized heating element accordingly.
Q4: What materials are available for the heating tube?
A: Stainless steel grades such as SS304, SS316 and SS321 can be considered depending on the application. Other materials, such as Incoloy, may also be available according to the operating conditions and engineering requirements.
Q5: Can the heater work directly in cooking oil?
A: Yes. Deep fryer heating elements can be designed for direct immersion heating of cooking oil. The heater design, sheath material, surface loading and temperature control must be selected according to the fryer application.
Q6: Can you provide temperature control?
A: Yes. The fryer heating system can be designed with a thermostat or temperature controller. A separate high-limit temperature protection device can also be used as an additional safety measure.
Q7: Can you provide replacement heaters for existing fryer equipment?
A: Yes. For replacement projects, customers can provide the original heater, part number, drawing or clear photos with dimensions. We can evaluate the structure and develop a suitable replacement solution.
Q8: Can you customize the heater for OEM production?
A: Yes. OEM customization is one of our main capabilities. We can manufacture heating elements according to customer drawings, samples and technical specifications for different fryer equipment.
Q9: What is the typical lead time?
A: Lead time depends on the heater design, quantity, tooling requirements and production schedule. After receiving the complete technical information and quantity, we can provide a specific quotation and estimated lead time.
Q10: What is the most important information when selecting a fryer heater?
A: The key parameters include voltage, power, heater dimensions, shape, tube diameter, mounting structure, terminal configuration and fryer capacity. Correct matching of these parameters is important for proper installation and reliable heating performance.
