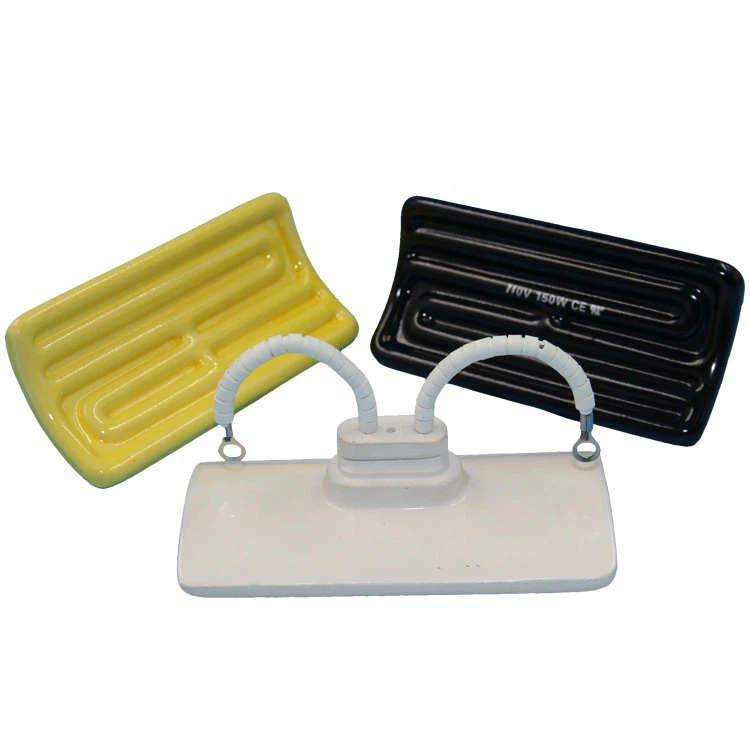

Ceramic Infrared Heaters For Vacuum Dryers

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of ceramic infrared heaters for vacuum dryers in China, also supports custom service. Welcome to wholesale high quality ceramic infrared heaters for vacuum dryers at competitive price from our factory.

Ceramic infrared heaters are an efficient non-contact heating solution for vacuum drying applications. They convert electrical energy into infrared radiation, which transfers heat directly to the material being dried. When combined with a vacuum environment, infrared heating can accelerate moisture evaporation while reducing the temperature required for drying.

What Is a Ceramic Infrared Heater for Vacuum Drying?

A ceramic infrared heater consists of a resistive heating element embedded inside a ceramic body. When electrical current passes through the resistance wire, the ceramic element heats up and emits infrared radiation. The infrared energy travels directly to the material or product without requiring hot air as the main heat-transfer medium.

For vacuum dryers, this heating method is particularly useful because the vacuum system reduces the boiling point and partial pressure of moisture, while the infrared heater supplies thermal energy directly to the product.

Why Use Ceramic Infrared Heaters in Vacuum Dryers?

Faster Drying

Infrared radiation supplies heat directly to the product, while vacuum lowers the pressure needed for moisture evaporation. This combination can shorten drying time compared with processes that rely only on conventional hot-air heating.

Lower Drying Temperature

Because moisture can evaporate at a lower temperature under vacuum, heat-sensitive materials may be dried under gentler thermal conditions. This can be beneficial for plastics, food materials, pharmaceutical materials, chemicals, and other temperature-sensitive products.

Uniform Heating

A properly designed array of ceramic infrared heaters can provide a relatively uniform radiation pattern over the drying area. Uniform heating helps reduce local overheating and uneven moisture removal. Jaye Heater specifically describes ceramic infrared heaters as providing consistent and even heating for forming applications.

Non-Contact Heating

The heater does not need to physically contact the product. Infrared energy can be transferred across the chamber space, which is useful for products that should not be mechanically contacted during drying.

Energy Efficiency

Because infrared radiation transfers energy directly to the target rather than first heating a large volume of air, unnecessary heat loss can be reduced. In an infrared-plus-vacuum system, infrared provides the thermal energy while vacuum assists moisture removal.

Specification Table of Ceramic Infrared Heaters for Vacuum Dryers

Suitable Applications

Ceramic infrared heaters can be considered for vacuum drying of materials where controlled, non-contact heating is desirable. Potential applications include:

1. Plastic and polymer materials
2. Food and agricultural products
3. Chemical materials
4. Pharmaceutical materials
5. Composite materials
6. Coatings and adhesives
7. Electronic components
8. Moisture-sensitive industrial materials
