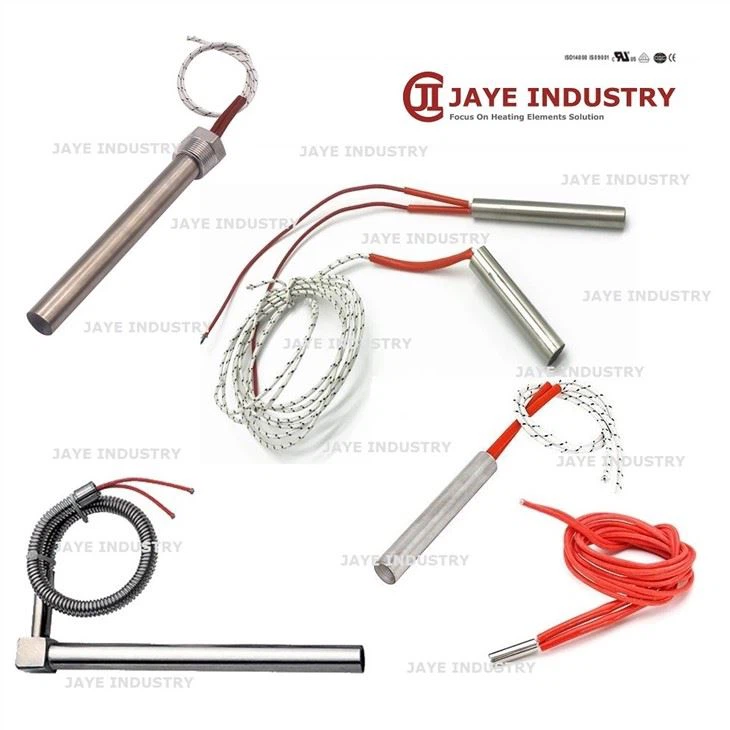

Resistance Rod Cartridge Heating Element
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of resistance rod cartridge heating element in China, also supports custom service. Welcome to wholesale high quality resistance rod cartridge heating element at competitive price from our factory.
A resistance rod cartridge heating element is a type of heating element used in a variety of industrial heating applications. Jaye heater Technology custom design the resistance rod cartridge heating element to meet your specific heating requirements of a particular application, including size, shape, and power output. This makes it a flexible and cost-effective solution for a wide range of industrial heating needs.
Specification of Resistance Rod Cartridge Heating Element

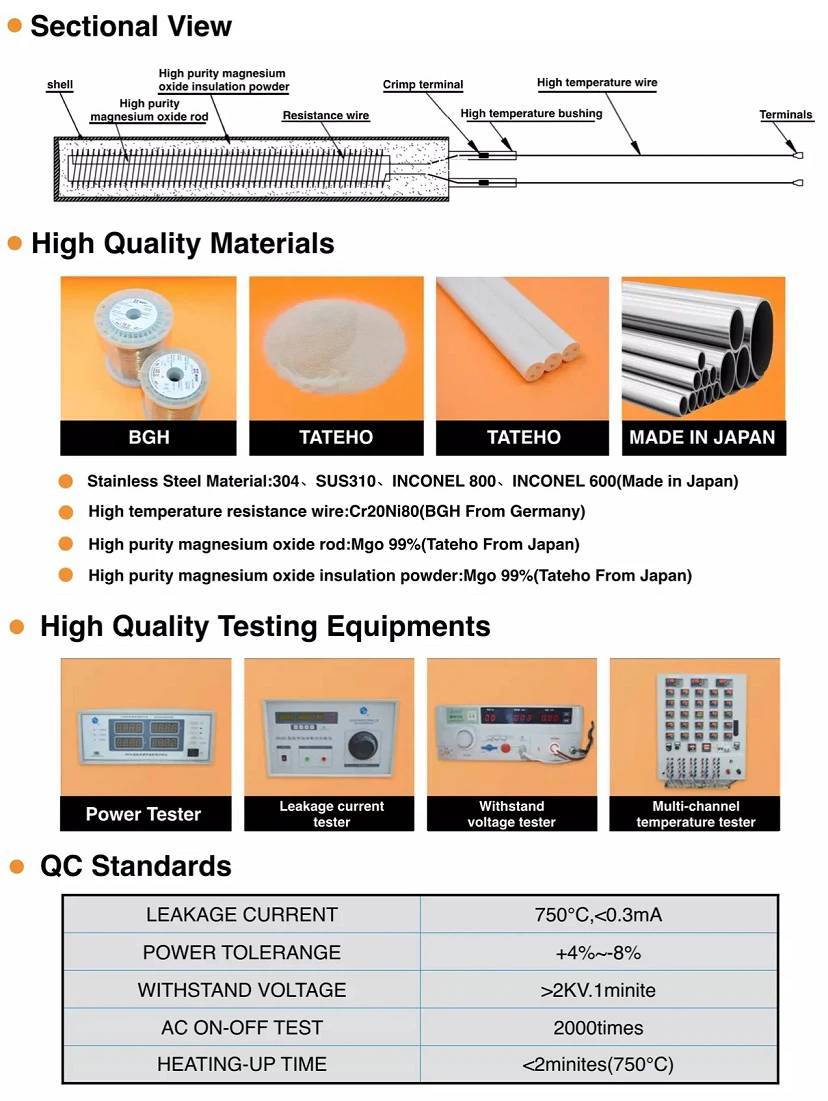

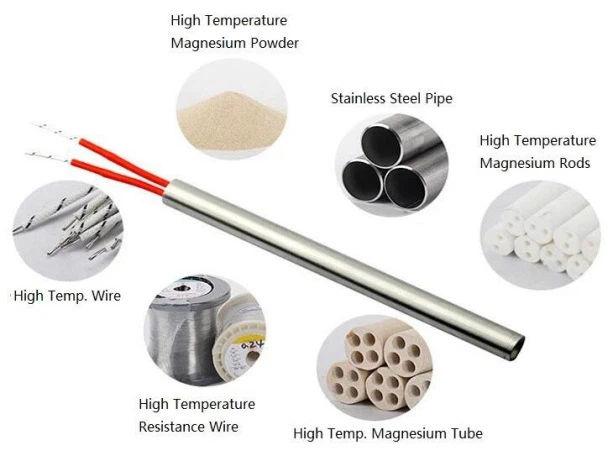

Resistance rod cartridge heating element is a piece of heating element, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080), high temperature leads and seamless stainless steel sheath(SS304, 321, 316, Incoloy800, 840).
| Tube diameter: | Φ3mm-Φ25mm |
| Tube Material: | SS304/SS316/SS321/NICOLOY800 etc |
| Insulation Material: | High purity MgO Power |
| Resistance Wire element: | Ni-Cr or FeCr |
| Lead Wire Connectiom Choice: | External or Internal |
| Lead Wire Length: | 250mm Fiberglass Standard ( Other Options: Teflon or Silicone) |
Feature of Resistance Rod Cartridge Heating Element
High heating efficiency: Resistance rod cartridge heating elements are designed to provide high levels of heating efficiency and can quickly heat up the surrounding environment.
Compact design: The compact design of the resistance rod cartridge heating element makes it easy to install in tight spaces.
Customizable: These heating elements can be designed to meet specific heating requirements, including size, shape, and power output.
Durable: Resistance rod cartridge heating elements are built to withstand high temperatures and have a long lifespan.
Even heat distribution: The metal sheath of the heating element acts as a heat sink, ensuring that heat is distributed evenly throughout the surrounding environment.
Easy to replace: If a resistance rod cartridge heating element fails, it can be easily replaced without the need to replace the entire heating system.
Versatile: Resistance rod cartridge heating elements can be used in a wide range of industrial heating applications, including plastics processing, food processing, and packaging.
Cost-effective: The customizability and durability of resistance rod cartridge heating elements make them a cost-effective heating solution for many industrial applications.
Precautions of Resistance Rod Cartridge Heating Element:
Dry burning is strictly prohibited (such as dry burning, the surface temperature should be temperature controlled).
In order to effectively reduce the internal temperature of the resistance rod cartridge heater, the gap between the heating rod and the aperture (≤10 wires) should be minimized when embedding the heating rod, and its coaxiality should be ensured
Before installation, clean up the processing residue in the mounting hole, such as engine oil, which will be carbonized after heating, which will affect the ability of heat transfer.
Before maintenance, the power supply should be cut off, and the heating tube temperature should be reduced to normal temperature.
If exposed to the air for a long time, the insulation value may decrease due to moisture absorption. Dry it in an oven before use (120°C, 2 hours)
Jaye heater technology custom makes durable and cost-effective Resistance Rod Cartridge Heating Elements with high quality control standard, if you have any requirements, you can just contact with us by Email: info@jaye-heater.com
