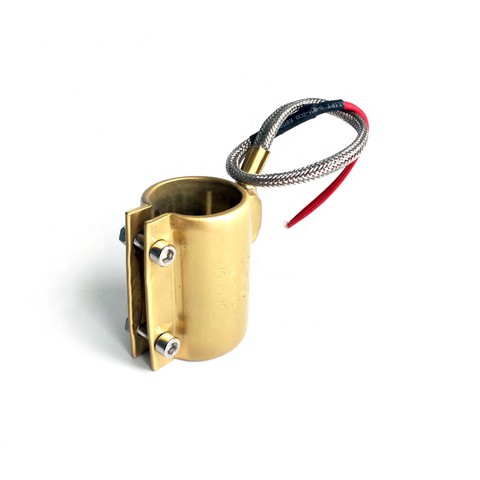

High Grade Brass Band Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of high grade brass band heater in China, also supports custom service. Welcome to wholesale high quality high grade brass band heater at competitive price from our factory.
The nozzle band heater wraps around the nozzle or barrel of machinery, providing uniform heat distribution to maintain optimal melting temperatures for plastics or other materials. Its robust construction and efficient performance make it a preferred choice in various manufacturing processes.
Main Technical Parameters of Nozzle Band Heater
| Parameter | Specifications |
|---|---|
| Material | High-grade brass (C26000 or equivalent) |
| Heating Element | Nickel-chromium (NiCr) resistance wire |
| Insulation | High-purity magnesium oxide (MgO) |
| Max Temperature | Up to 450°C (842°F) |
| Voltage | 110V, 220V, 380V, or custom |
| Power Density | 5-25 W/cm² (adjustable) |
| Band Thickness | 1.5mm - 3.0mm |
| Protection Class | IP54 (standard), higher options available |
Key Features of Brass Nozzle Band Heater
(1) Superior Thermal Conductivity
Brass offers excellent heat transfer, ensuring rapid and even heating.
Reduces energy consumption by maintaining consistent temperatures.
(2) High Durability & Corrosion Resistance
Brass construction resists oxidation and chemical corrosion.
Suitable for harsh industrial environments.
(3) Precise Temperature Control
Compatible with thermocouples and PID controllers for accurate regulation.
Prevents overheating and material degradation.
(4) Customizable Design
Available in various diameters, widths, and wattages to fit different nozzle sizes.
Can be tailored with different terminal types (leads, connectors, etc.).
(5) Fast Installation & Maintenance
Clamp or screw mounting for easy attachment.
Easy to replace or repair without major downtime.
Pricing Factors for Nozzle Band Heater
(1) Size & Dimensions
Larger diameters and widths increase material costs.
Custom shapes may require additional machining.
(2) Power Rating (Wattage)
Higher wattage heaters (e.g., 500W-2000W) are more expensive.
(3) Voltage & Phase Requirements
Single-phase (110V/220V) vs. three-phase (380V) affects pricing.
(4) Additional Features
Integrated thermocouples, ceramic insulation, or explosion-proof designs add cost.
(5) Order Quantity
Bulk orders typically receive discounts.

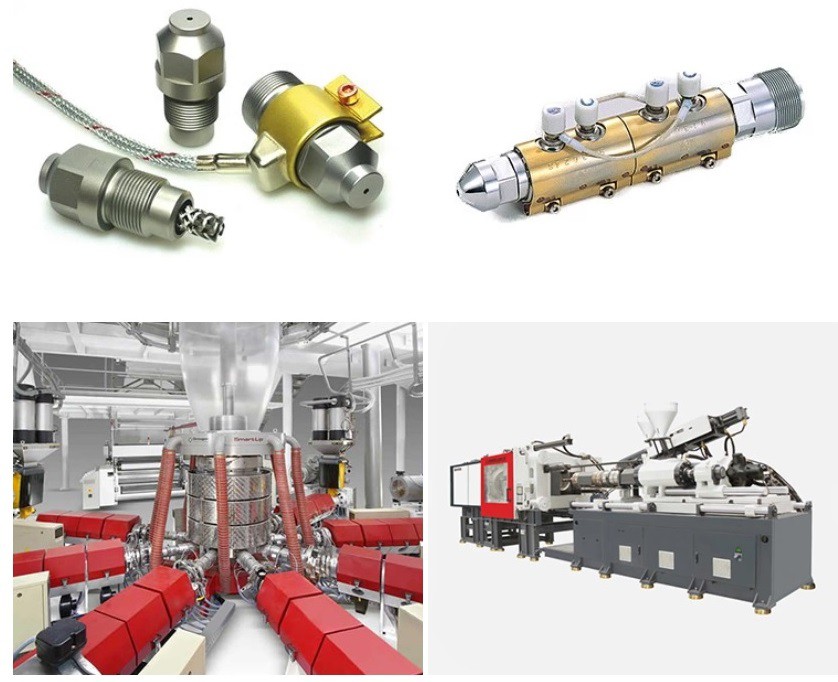

Applications of Nozzle Band Heater
Brass nozzle band heaters are widely used in industries requiring precise heating, including:
(1) Plastic Injection Molding
Ensures uniform melting of plastic pellets in nozzles and barrels.
(2) Extrusion Machines
Maintains optimal temperature for PVC, PE, PP, and other polymers.
(3) 3D Printing & Hot-End Heating
Used in industrial-grade 3D printers for filament control.
(4) Packaging & Blow Molding
Provides consistent heat for plastic bottle and container production.
(5) Rubber & Chemical Processing
Heats rubber extruders and chemical reactors efficiently.
(6) Food Processing Equipment
Sanitary heating for food-grade material handling.
