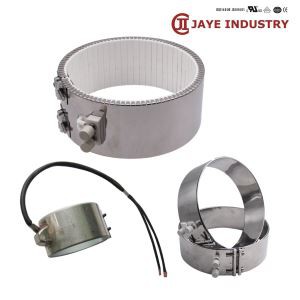

High Temperature Ceramic Band Heater

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of high temperature ceramic band heater in China, also supports custom service. Welcome to wholesale high quality high temperature ceramic band heater at competitive price from our factory.

High Temperature Ceramic Band Heater

Jaye Heater can make this element according to requirements, if you are interested, just contact us and send your requirements.

Parameter specification:

1. Voltage: 12-660V;

2. The inner diameter of the ring: ≥Φ40mm;

3. Power: The surface load can be designed to be 0.1-6W/cm2;

4. Element: nickel-chromium  wire, iron-chromium-aluminum  wire;

5. Appearance: terminal block, lead wire, ceramic terminal block, oil raisin, stainless steel junction box, iron plug.

Advantages:

1. Fast transfer, uniform and stable work.

2. The temperature does not leak out, can save electricity, the outer cover is not hot when touched by hand, and the work is safe.

3. The power of the product is high, and the power of the ceramic rod threading method is 0.5 to 1.5 times higher than that of ordinary ones.

4. The  wire has the characteristics of fast dissipation, uniform heating, stable high temperature, etc., and can be used at 600-800°C for a long time.

5. The product has a long life, because the raw materials age slowly at high temperatures, so the product has a long life

Precautions for use:

1. It is a non-waterproof structure, so do not contact with oil, water, plastic particles when storing and installing to prevent leakage.

2. During installation, it must be closely attached to the heated body, and the surface should be flat and complete without unevenness.

3. If burnt black is found on the surface after use, it indicates that the heat dissipation is unbalanced and should be adjusted in time to prevent burn-through.

4. When using it, avoid hitting hard or colliding with a hard object to cause the porcelain strip to break and the alloy resistance wire to be exposed, which will affect the service life and safety.

5. Before installation, check whether the installation position is consistent with the specifications and whether the voltage used is consistent.
