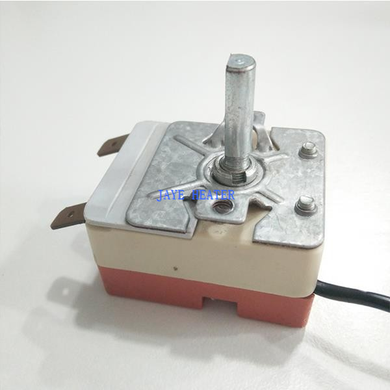

Manual Temperature Adjustment
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of manual temperature adjustment in China, also supports custom service. Welcome to wholesale high quality manual temperature adjustment at competitive price from our factory.
Description of Capillary thermostat
A capillary thermostat is a temperature-regulating device commonly used in various heating and cooling applications. It consists of three main components: a sensing element, a control switch, and a capillary tube.
1.Sensing Element: The sensing element is typically a bulb filled with a temperature-sensitive fluid, such as a gas or liquid. As the temperature around the sensing element changes, the fluid expands or contracts, causing pressure variations within the bulb.
2.Capillary Tube: Connected to the sensing bulb is a long, narrow capillary tube. This tube is often coiled or arranged in a way that allows it to transmit the pressure changes from the sensing bulb to the control switch located elsewhere in the system.
3.Control Switch: The control switch is the mechanism that reacts to the pressure changes in the capillary tube. It consists of a diaphragm or bellows that moves in response to the pressure variations. This movement, in turn, activates or deactivates the electrical contacts within the switch.
specifications of capillary thermostat
| Material of Terminal | Brass |
| Mounting Hole | 2-M4 |
| Center of Mounting Hole | 28mm |
| Min. Capillary Bend Radius | 5mm |
| Temperature's Rate of Change | 1°C/min |
| Diameter of Sensing Bulb | 3mm,4mm,5mm,6mm |
| Life | 100000 cycles |
pictures of capillary thermostat
