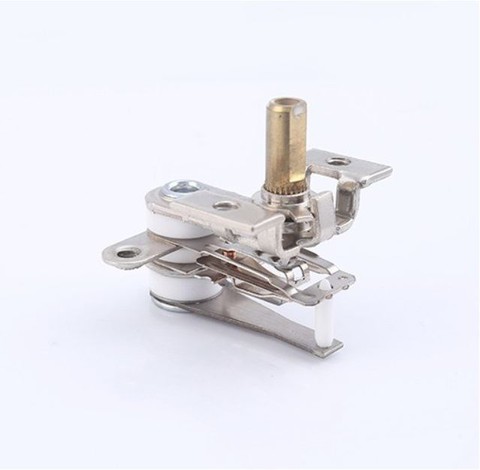

Snap Action KST Thermostats

Snap action KST thermostats are the kind of thermostats that can adjust the temperature. The temperature can be available from 100-230°C. It uses the working principle of bimetallic sheet. Bimetallic sheet is also called thermal bimetallic sheet. Due to the different thermal expansion...
Chat Now

Product Details

Snap action KST thermostats are the kind of thermostats that can adjust the temperature. The temperature can be available from 100-230°C. It uses the working principle of bimetallic sheet. Bimetallic sheet is also called thermal bimetallic sheet. Due to the different thermal expansion coefficients of each component layer, when the temperature changes, the deformation of the active layer is greater than that of the passive layer, so the whole bimetallic sheet will bend to one side of the passive layer, and the curvature of the composite will change, thus resulting in deformation. The Snap action KST thermostats are widely applied for temperature control of electric iron, electric oven, bakeware, waffle maker, etc.

 principle of bimetallic strip

The snap action thermostat has the following advantages:

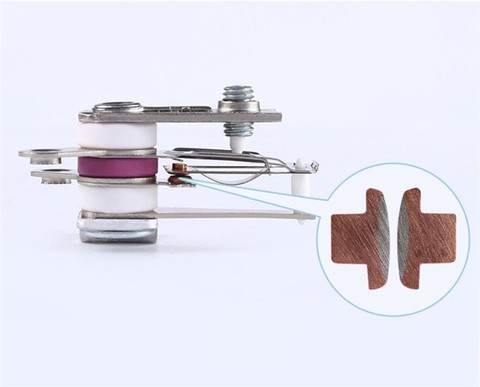

1. Fast connection and disconnection speed of contact, generally no arc is generated;
2. Accurate temperature regulation and control;
3. High pressure and low contact resistance between contacts;
4. Long service life of contact;
5. It has very little interference to radio and audio-visual appliances



The General Specifications of Snap action KST thermostats:

Product Name

 Snap action KST thermostats

Rated current

 5A/10A/16A

Frequency

 50/60Hz

Contact Resistance

 Below 50 Ω

Life Cycle

 100,000times

Diameter of bimetal dis

 12.8mm(1/2)

Theory

 Tepm.control

Available Temp Range

 100-230°C

Base

 Ceramic base

Usage Range

 Oven parts,heating parts

Packing Size

 48X28X23(cm)/carton

Packing Weight

 15~22KG/Carton

Rated Load

 Resistance Load

Application

 Home appliance

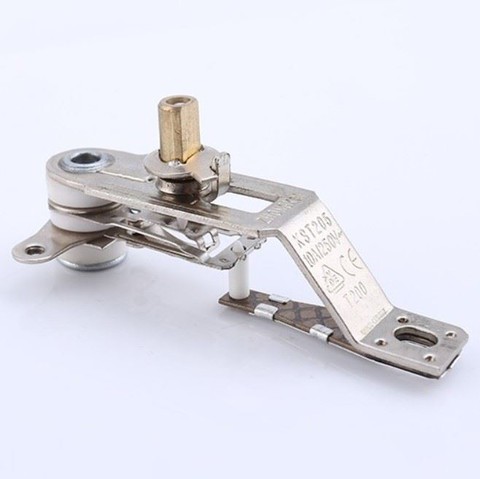

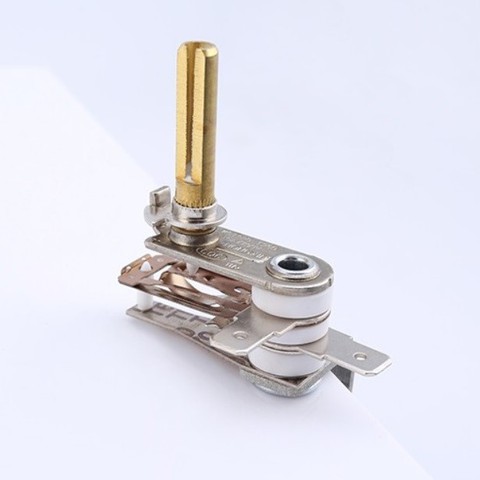

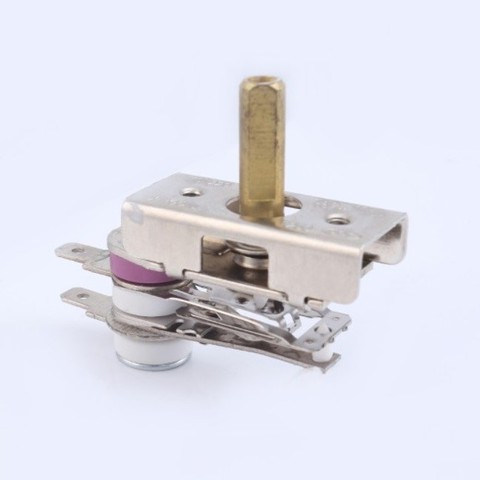

 Different types of Snap Action KST thermostats made by Jaye:

THERMOSTAT



Application-Thermostat
