KST Series Adjustable Thermostats

Working principle of KST Series Adjustable Thermostats: The KST series adjustable thermostats uses bimetal as the temperature sensing element, uses the principle that the temperature sensing element is bent and deformed due to the temperature change, and makes the moving contact move quickly...
Chat Now

Product Details

Working principle of KST Series Adjustable Thermostats:

The KST series adjustable thermostats uses bimetal as the temperature sensing element, uses the principle that the temperature sensing element is bent and deformed due to the temperature change, and makes the moving contact move quickly through the spring piece with energy storage structure, so as to achieve the purpose of breaking or connecting the circuit, so as to control the temperature.

principle of bimetallic strip

This series of temperature control, the use temperature can be adjusted, users can according to their own use habits and requirements, by adjusting the temperature knob to select the appropriate use temperature, in order to achieve satisfactory use effect.

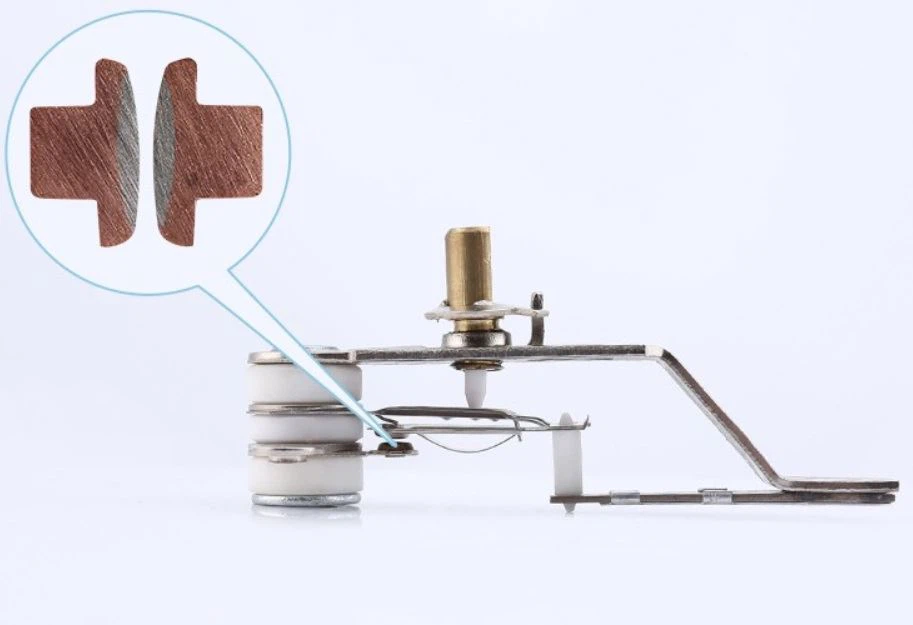

 KST205-108-19

Specifications:

Product Name

 KST Series Bimetal Thermostat

Rated current

 5A/10A/16A

Frequency

 50/60Hz

Contact Resistance

 Below 50 Ω

Life Cycle

 100,000times

Diameter of bimetal dis

 12.8mm(1/2)

Theory

 Tepm.control

Available Temp Range

 100-230°C

Base

 Ceramic base

Usage Range

 Oven parts,heating parts

Packing Size

 48X28X23(cm)/carton

Packing Weight

 15~22KG/Carton

Rated Load

 Resistance Load

Application

 Home appliance




Usage and customization of KST Series Adjustable Thermostats:

  1. KST thermostat with its own heating element, which is called thermal compensation thermostat. This kind of thermostat is mostly used for electric oven appliances;

  2. KST series thermostat, in practical application, can flexibly select the type and terminal angle direction of the thermostat terminal according to the actual assembly situation of the customer's whole machine;

  3. For the temperature controller of straight panel, the fixing method is not only to lock the temperature controller through Φ 4 rivet hole, but also to fix the temperature controller by adding mounting plate if necessary.

    4. Selecting the right mounting plate not only plays a good heat and temperature sensing function, but also has the function of fixing the temperature control conveniently.

    THERMOSTAT

 Various type and specifications of the KST series adjustable thermostats from Jaye industry are available to be made based on customer's requirements according to the actual electric appliance and installing method. Any request and need about this type of thermostats just contact us!
