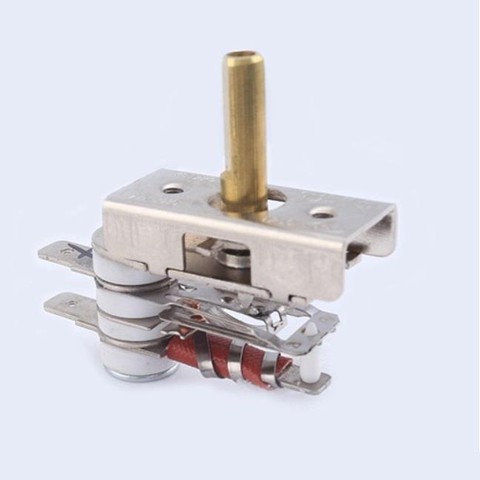

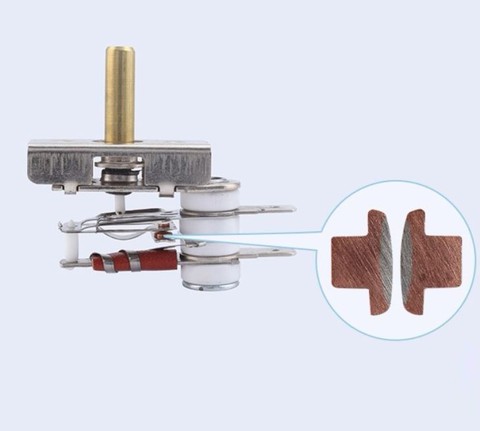

Electric Stove KST Thermostat

Design of KST adjustable thermostat is based on bi-metal action in the principle of expansion and contraction. KST turns on and off within prescribed temperature range. Eletric Stove KST thermostat is one of the most popular thermostat KST thermostat, they are designed based on the installing method and position of the electric stove.
Chat Now

Product Details

Design of KST adjustable thermostat is based on bi-metal action in the principle of expansion and contraction. KST turns on and off within prescribed temperature range. Eletric Stove KST thermostat is one of the most popular thermostat KST thermostat, they are designed based on the installing method and position of the electric stove.


Features of Electric stove KST thermostats

· Adjustable operating temperature

· Good and stable temperature control

· Customized mounting design

· Self-supporting bimetal material

· KST can replace ceramic fixed thermostat when using a screw instead of its axis.

· KST can control temperature and shorten temperature range through detecting current.

· KST can be crimped a block for installation and conducting heat.

· The mounting brackets have several shapes.


Parameters:

Type

Non-thermal conpensation

Rated current & volt

10A/16A 250V

Operating temperature

0~260℃

Max Temperature

300℃

Life time cycles

100,000

Cold resistant temperature

-40℃

Reset type

Auto reset

Max. Operation Angle:

305 degrees (Designed by user's requirements)

Certificate

CQC TUV UL


Main applications of KST adjustable thermostat:

1) Electric Oven, Electric Stove, electrical irons, rice cookers, water boilers, light wave oven

2) Fan heater Barbeque grill and various household appliances.

Order Guide for KST thermostats:

Jaye industry make the KST thermostats with reasonable prices,short production time and satisfactory after-sales service.

1- The type of KST thermostat.

2- Working temperature.

3- Installing position distance.

4- Drawing will be great helpful

5- Order quantity
