Snap Disc Thermostat
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of snap disc thermostat in China, also supports custom service. Welcome to wholesale high quality snap disc thermostat at competitive price from our factory.

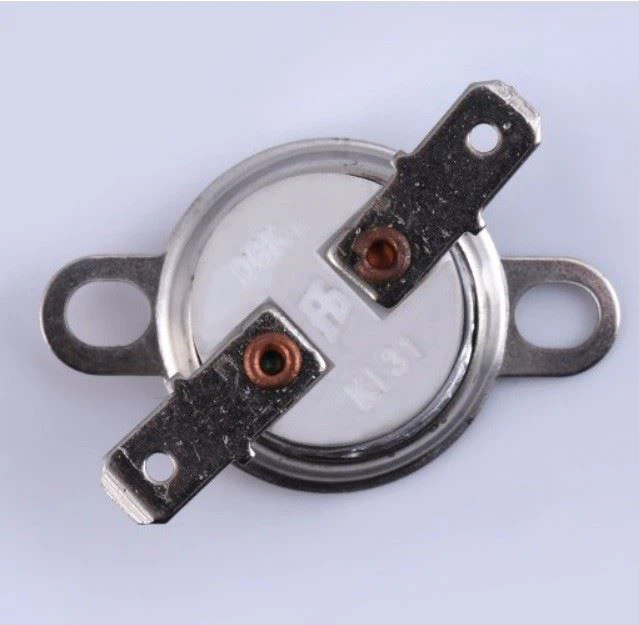

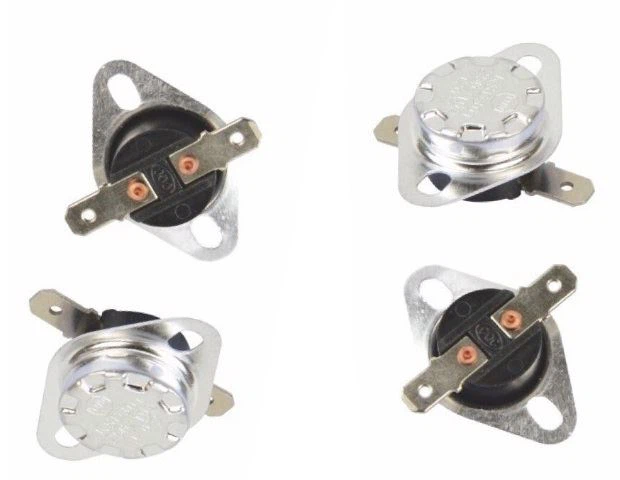

Snap Disc Thermostat
The snap disc thermostat with a fully enclosed shell, according to the principle of thermal expansion and contraction, makes the metal sheet bend, so as to achieve rapid tripping and connection within the preset temperature range, which protects the electrical appliances. The cut-off temperature and reset temperature can be made according to the needs of customers.
Product specifications:
1. Function: temperature protection and overheat protection to prevent dry burning
2. Electrical characteristics: AC250V 16A/25A/45A/63A
3. The highest ambient temperature: 180℃
3. Operating temperature range: 50℃～145℃ (optional). Temperature tolerance: ±3±5 (can be made according to customer requirements)
5. Normal insulation resistance: >300MΩ
6. Normal contact resistance: ≤50mΩ
7. Normal electric strength: AC1500V, no breakdown flashover after 1min
8. Shell protection grade: IP00
9. PII value of insulating material: PII175
10. Service life: >6,000 times
Precautions
1. When using the contact temperature-sensing installation, the metal cover should be close to the installation surface of the controlled appliance.
2. Do not deform the cover surface during installation, so as not to affect performance.
3. In order to prevent leakage of electricity, do not allow liquid to penetrate into the thermostat during use, so as not to affect the electrical reliability.
4. This product is a bipolar connection method. When using it, follow the marked symbols and connect it correctly.
5. The product should be stored in a ventilated, clean, dry and non-corrosive warehouse with a relative humidity of less than 90% and an ambient temperature of 40°C.
