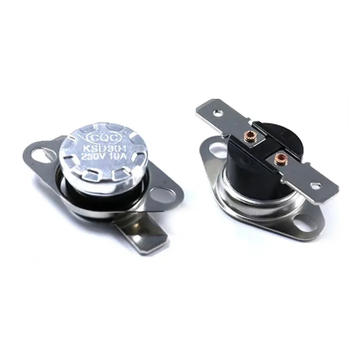

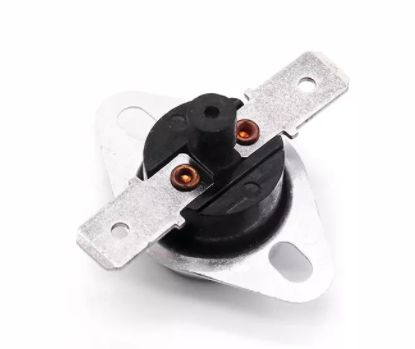

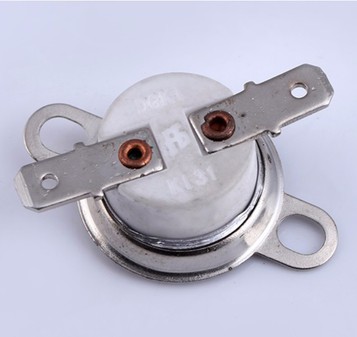

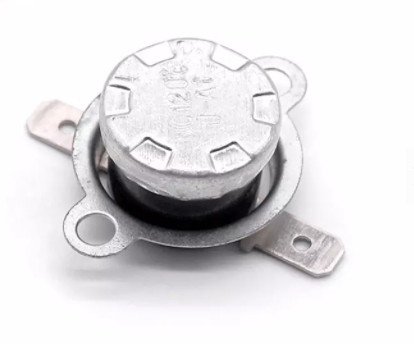

Snap Action Disc Thermostats
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of snap action disc thermostats in China, also supports custom service. Welcome to wholesale high quality snap action disc thermostats at competitive price from our factory.
Snap Action Disc Thermostats are devices that are designed to regulate temperature by opening and closing an electrical circuit. When the temperature reaches a certain level, the disc inside the thermostat snaps, making or breaking the circuit, and turning the heating or cooling system on or off, as required. These thermostats are widely used in a variety of appliances and applications for precise temperature control.

Specification
| Rated Voltage/Current | AC250V 5A 10A 15A max 16A |
| Operating temperature range | 0-300°C |
| Temperature tolerance | ±2℃,±3℃,±5℃ |
| Action Temperature range | 0~280 degree |
| Circuit resistance | ≤50mΩ |
| Insulation resistance | ≥100mΩ |



Feature
-
1- Snap Action Disc Thermostats are easy to install and use, and their compact size makes them suitable for a wide range of applications.
-
2- Snap Action Disc Thermostatsare designed to withstand high temperatures and are made of durable materials, such as stainless steel, copper, or brass.
-
3- Snap Action Disc Thermostats are available in a range of temperature settings and switch types, including normally open and normally closed, with different current and voltage ratings, to suit various requirements.
-
4- Snap Action Disc Thermostats are equipped with quick-connect terminals for easy wiring and maintenance.

Advantage
1- Snap Action Disc Thermostats provide accurate and reliable temperature control, ensuring that the temperature remains within the desired range, without the need for frequent adjustments or monitoring.
2- They are cost-effective and energy-efficient, as they only turn on the heating or cooling system when needed, reducing energy consumption and costs.
3- They are durable and long-lasting, providing years of trouble-free operation, with minimal maintenance required.
4- They are versatile and can be used in a variety of applications, such as HVAC systems, refrigerators, freezers, water heaters, and many more.


Application
Snap Action Disc Thermostats are used in a wide range of industries and applications, including:
- HVAC systems: to control the temperature in heating and cooling systems, such as air conditioners, heat pumps, and furnaces.
- Refrigeration: to regulate the temperature in refrigerators, freezers, and other cooling appliances.
- Water heaters: to turn the heating element on and off, maintaining the desired water temperature.
- Electro-mechanical equipment: to prevent overheating and damage to motors, transformers, and other equipment that generates heat during operation.
Our service and strength
*Professional sales team is responsible for accurate communication.
*The professional technical team is responsible for the development of new products.
*The technical production team is responsible for assembly line production.
*Quality inspection is handled by a professional quality inspection team.
*The experienced after-sales team is suitable for all customers.
