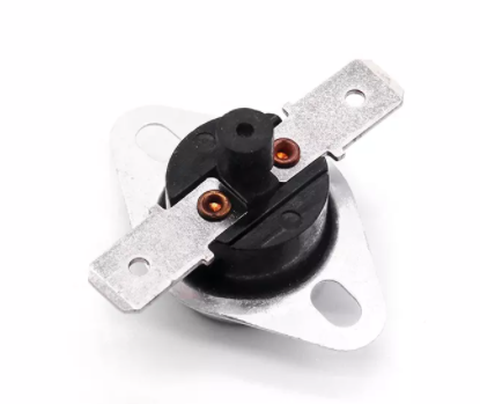

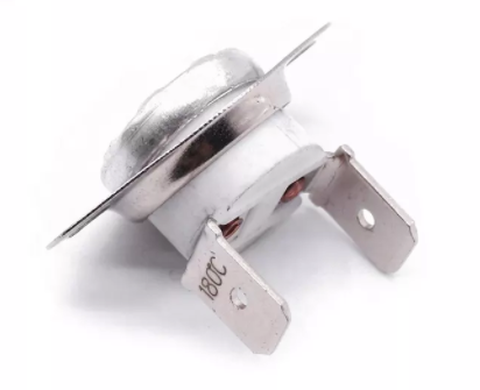

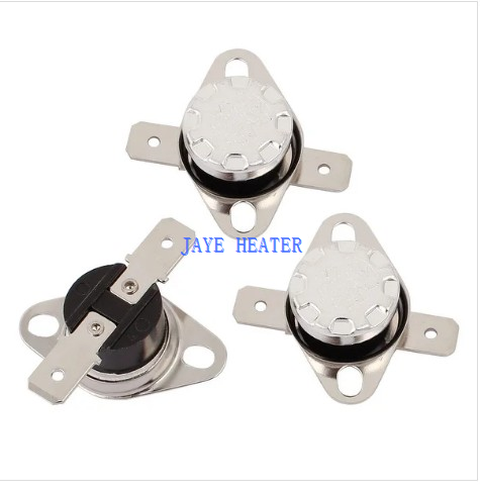

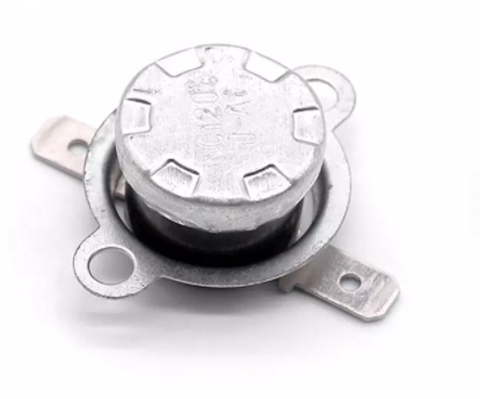

KSD301 Temperature Switch
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of ksd301 temperature switch in China, also supports custom service. Welcome to wholesale high quality ksd301 temperature switch at competitive price from our factory.
KSD301 temperature switch is a type of thermal protector that operates on a snap-action principle. The ksd 301 temperature switch is designed to protect electric motors and other devices from overheating by turning off the power supply when the temperature exceeds a pre-set value. Jaye can customize the ksd301 temperature switch as per your request. There are many types of ksd301 temperature switches for your reference.
Specification of ksd Temperature Switch
| Rated Voltage | AC250V |
| Rated Current | 50 ~ 60Hz 5A / 10A / 16A |
| Life cycle | ≥100000 |
| Reset type | Automatic/Manual |
| Max. Temperature |
Resin:180°C; Ceramic:220 °C |
| Contact material | Silver/ Gold |
Feature of ksd Temperature Switch
-
1. KSD301 temperature switch operates on a snap-action principle with reliable and fast switching action.
-
2. The operating temperature of the temperature switch can be customized according to the specific application requirements.
-
3. The switch is compact in size, light in weight, and easy to install.
-
4. KSD301 temperature switch is available in different housing materials such as ceramics, plastics, and metals.
Advantage
1. KSD301 temperature switches are cost-effective and provide efficient thermal protection.
2. They are designed to prevent damage to equipment due to overheating, which helps to increase the lifespan of the equipment.
3. The switches are easy to install and can be used in a wide range of applications.
4. KSD301 temperature switches are reliable, durable, and have a long service life.
Application
1. KSD301 temperature switches are widely used in electric motors, transformers, and other electrical equipment to prevent overheating.
2. They can also be used in household appliances such as air conditioning units, refrigerators, and water heaters.
3. KSD301 temperature switches are also used in the automotive industry in engines, radiators, and cooling systems to prevent overheating.
4. Other applications include medical equipment, power supplies, and LED lighting.
