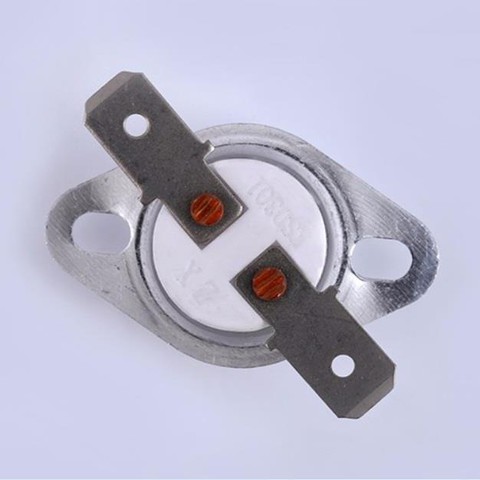

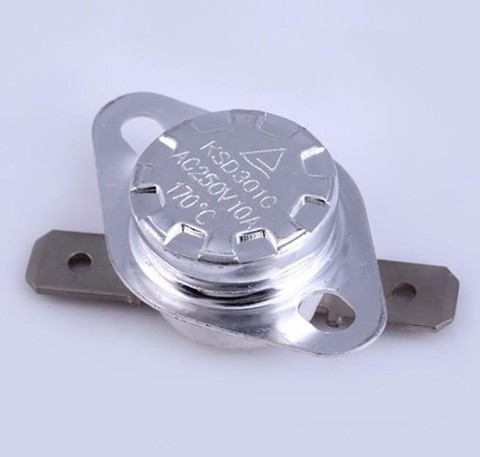

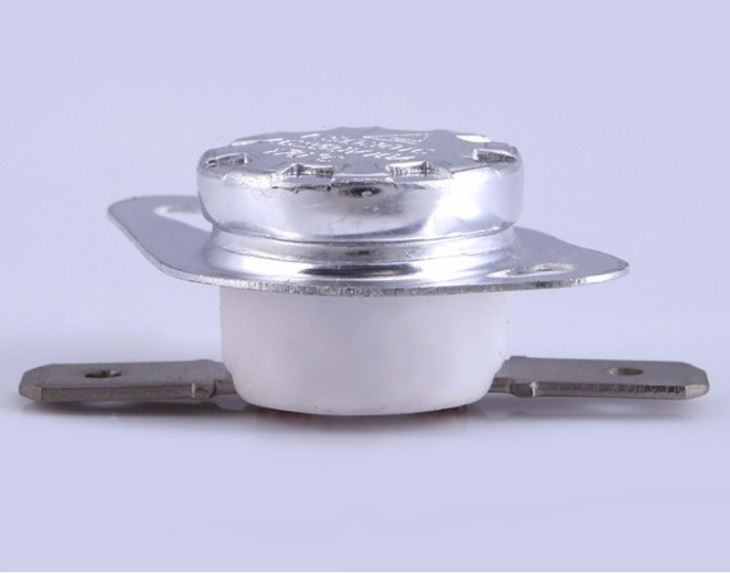

KSD Thermostat Overheat Protector For Household Appliances

The KSD thermostat overheat protector for household appliance made by Jaye Industry have the features of Stable electrical performance, advanced process and production equipment, high precision,accurate temperature, light weight and small in size. Technical Parameters of the KSD thermostat...
Chat Now

Product Details

The KSD thermostat overheat protector for household appliance made by Jaye Industry have the features of Stable electrical performance, advanced process and production equipment, high precision,accurate temperature, light weight and small in size.



Technical Parameters of the KSD thermostat overheat protector:

1. Applications Conditions: With the relative humidity can reach 95% under + 20 ℃;

2. Atmospheric pressure: 86-106Kpa;

3. Working position: any place

4. Heat resistance: ceramic material ≤300 ℃, pps plastic material ≤220 ℃; bakelite material ≤160 ℃

5. Contact form: normally closed or normally open (only for automatic reset operation)

6. Insulation resistance: normal temperature and humidity ≥100MΩ

7. Contact resistance: ≤100100MΩ

8. Dielectric withstand voltage: ≥1500VAC

9.Vibration intensity: 50HZ single 0.35mm

10. Impact strength: 150m / s2

11. Service life: 100,000 times

12. Weight: 10g



Application of the KSD thermostat overheat protector:

⑴ Disinfection cabinet

⑵ Dishwasher

⑶ Dryer

⑷ Microwave oven

⑸ Water dispenser

⑹ Electric kettle

⑺ Office equipment

⑻ Electric coffee pot

⑼ Sandwich toaster

⑽ Car seat heater, car antifreeze, electric cooker, refrigerator, air conditioner, glue machine and other electric heating appliances.



Packing and Storage:

1. The thermostat is marked with the certification mark, voltage, current, temperature and trademark.

2. Product packaging is moisture-proof, shock-proof, and anti-squeezed

3. Clear box markings

4. It is convenient to transport and neither not show any signs of injury.

5. The product is stored in a well-ventilated, dry and non-corrosive gas warehouse.


Application-Thermostat

Hot Tags: ksd thermostat overheat protector for household appliances, China, manufacturers, suppliers, factory, wholesale, customized, electric, high quality
