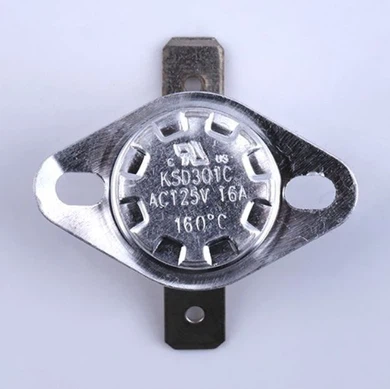

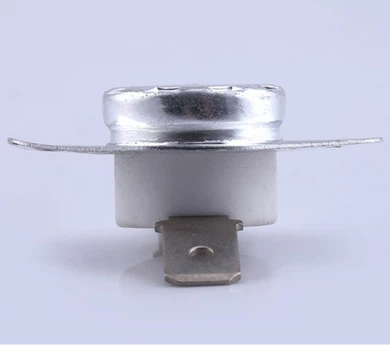

KSD 301 Thermostat Switch

KSD thermostat is a kind of temperature controller which can be classified according to temperature, material, or installation method. According to the nature of the action: it can be divided into normally open action and normally closed action. According to the temperature, it can be divided into: 0 degrees 5 degrees 10 degrees 15 degrees 20 degrees 25 degrees 30 degrees 35 degrees, etc. According to the material, it can be divided into: bakelite body and ceramic body.
Chat Now

Product Details

KSD thermostat is a kind of temperature controller which can be classified according to temperature, material, or installation method. According to the nature of the action: it can be divided into normally open action and normally closed action. According to the temperature, it can be divided into: 0 degrees 5 degrees 10 degrees 15 degrees 20 degrees 25 degrees 30 degrees 35 degrees, etc. According to the material, it can be divided into: bakelite body and ceramic body.



Technical Parameters:

1. Electrical parameters: 10A~16A (resistive load)

2. Operating temperature range: 40~160℃

3. Temperature accuracy: ±2, ±3, ±5

4. Temperature difference between reply and action: -20℃ (optional)

5. Service life: automatic reset ≥ 30,000 times

6. Electrical strength: AC 50HZ 1800V lasts 1min, no flicker, no breakdown

7. Contact resistance: ≤50mΩ

8. Insulation resistance: ≥100mΩ



Benefits:

It has the characteristics of stable performance, high precision, small size, light weight, high reliability, long life and a bit of radio interference.



Common Temperature Specifications:

Operating temp. 30±3℃ Reset temp. ≥15℃

Operating temp. 35±3℃ Reset temp. 20±5℃

Operating temp. 40±3℃ Reset temp. 25±5℃

Operating temp. 45±3℃ Reset temp. 30±5℃

Operating temp. 50±3℃ Reset temp. 35±5℃

etc......

If you need other temperature, please contact us for quotation.

Application-Thermostat
