Oven Capillary Thermostat

Name: China Custom Oven Capillary Thermostat Manufacturers, Suppliers, Factory - High Quality - Jaye Heater Technology
Brand: Jaye Heater
SKU: 149081533

Oven Capillary Thermostat The temperature sensing component of the oven capillary thermostat consists of a temperature bulb, capillary tube, film sheet and expansion medium. When the bulb is heated, the medium is heated and begins to expand. The expansion of the medium increases the pressure in...

Chat Now

Product Details

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of oven capillary thermostat in China, also supports custom service. Welcome to wholesale high quality oven capillary thermostat at competitive price from our factory.

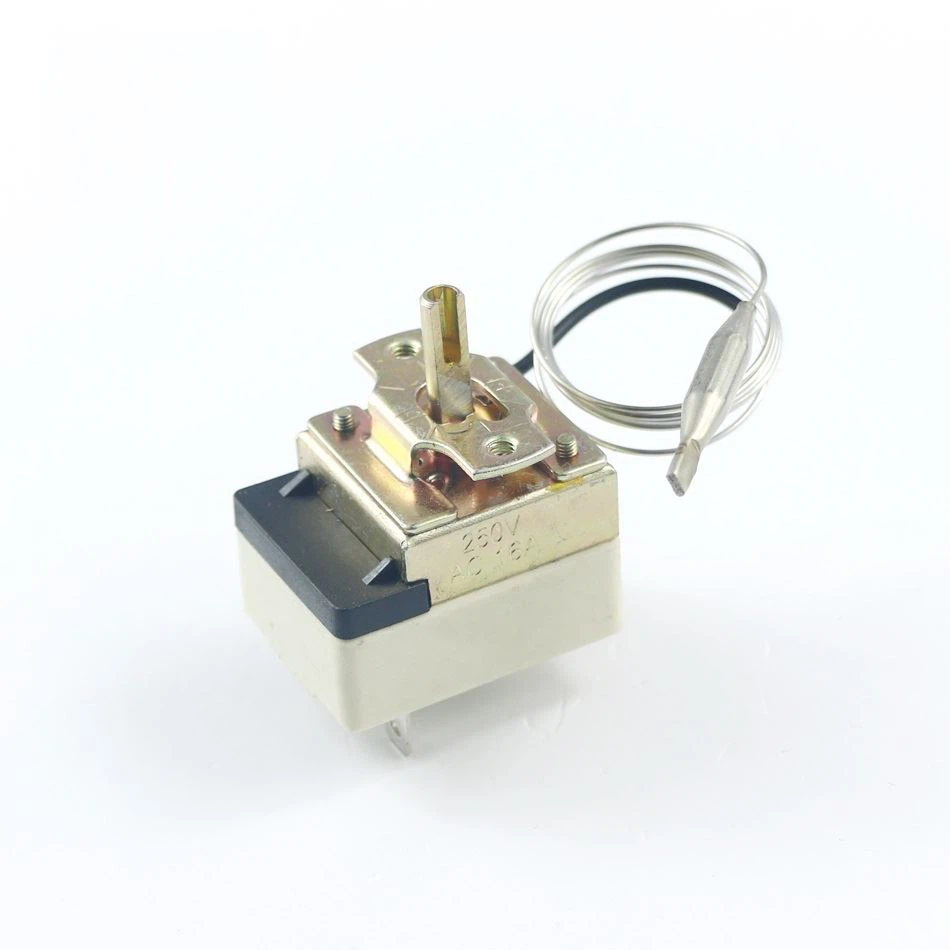

Oven Capillary Thermostat

The temperature sensing component of the oven capillary thermostat consists of a temperature bulb, capillary tube, film sheet and expansion medium. When the bulb is heated, the medium is heated and begins to expand. The expansion of the medium increases the pressure in the closed system of the entire sensing component. The increased pressure is converted into displacement of the diaphragm. This kind of displacement is also called the stroke, which can touch a snap-action switch, which can open or close the circuit. The required positioning displacement variable can be set by adjusting the rotating shaft. A very short displacement can start the thermostat.

H391953f9768641a786dd50987cada0d2i

Specifications of Oven Capillary Thermostat

1.Temperature Range:-35~320℃

2.Voltage: 250V

3.Electrical rating/Standard Load:16A

4.Life of product:100000 times

5.Breaking Capacity:1800V/min

6.Maximum ambient temperature: 150℃

7.Diameter of Sensing Bulb:φ3~φ8

8.Direction of Terminal:Customize

9.Length of Capillary:Customize

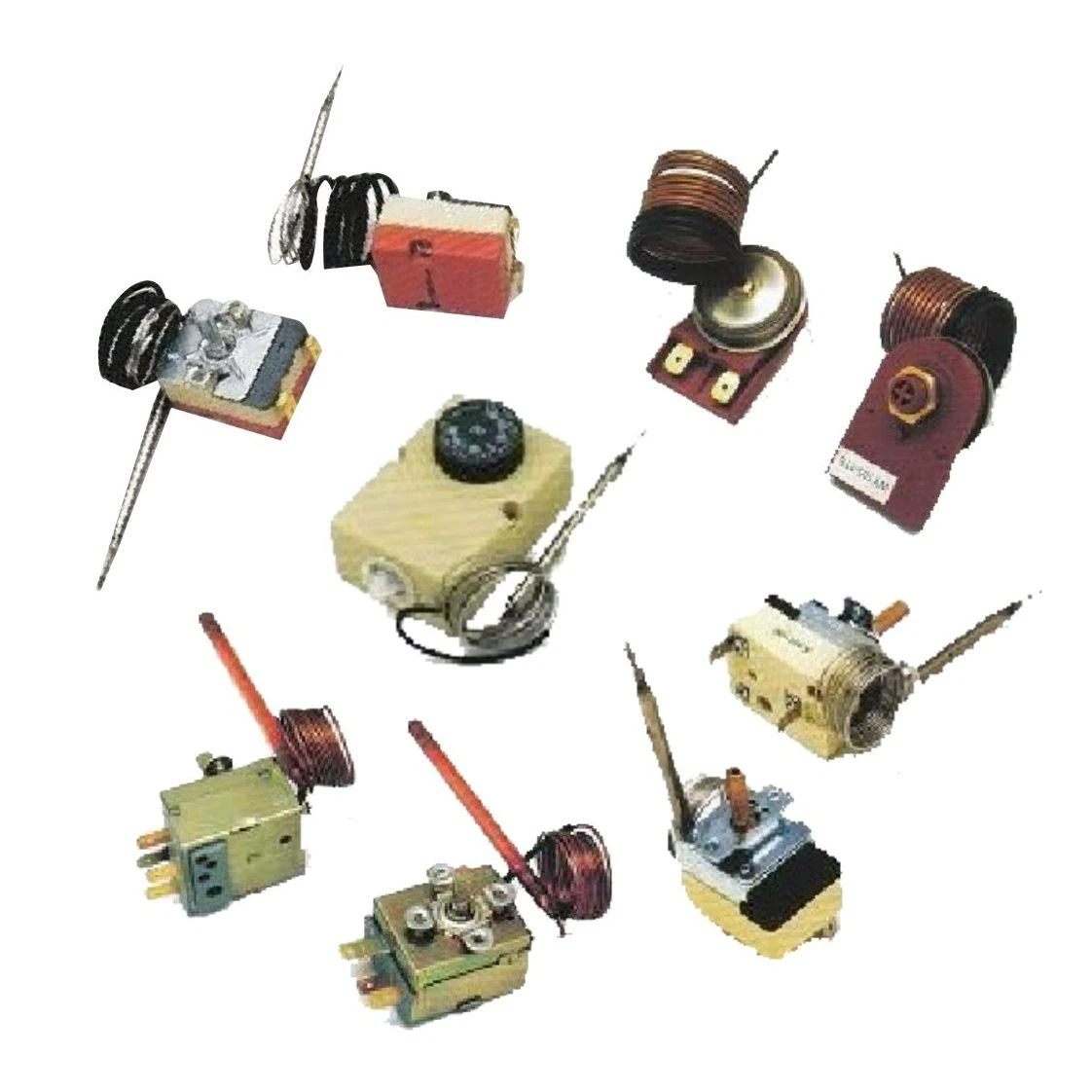

1-006

Advantages of Oven Capillary Thermostat

1.Accurate temperature controlling.

2.Great contact capacity.

3.Wide control range.

4.High reliabilities.

We are a professional supplier of thermostats for ovens, refrigerators, boilers,washing machines and so on. The prices of the products are very competitive and are exported to Europe, the Middle East, South America and other countries all over the world. Enjoying a good reputation among our customers.

Apllication
