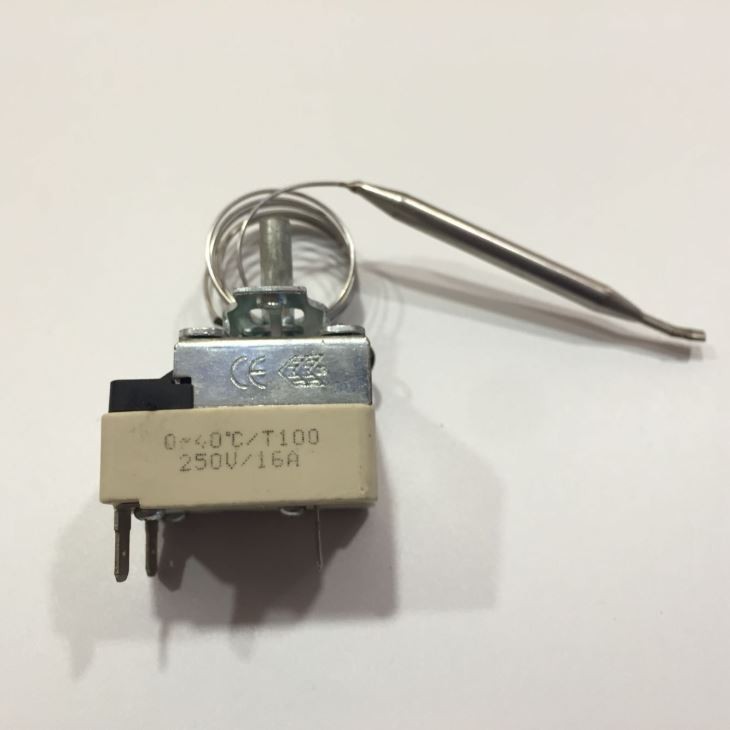

Liquid Expansion Adjustable Capillary Thermostat

When the temperature of the controlled object changes, the working medium in the temperature sensing part of the thermostat will generate the corresponding physical phenomenon of thermal expansion and cold contraction (the change of working medium volume), and the capsule connected with the...
Chat Now

Product Details

When the temperature of the controlled object changes, the working medium in the temperature sensing part of the thermostat will generate the corresponding physical phenomenon of thermal expansion and cold contraction (the change of working medium volume), and the capsule connected with the temperature sensing part will generate expansion or contraction. Through the lever principle, the on-off action of the switch is driven to achieve the goal of constant temperature. Capillary thermostat (liquid expansion temperature controller) has the characteristics of accurate temperature control, stable and reliable, small temperature difference between start and stop, large temperature control range, large overload current and so on.


Technical Parameters of Liquid Expansion Adjustable Capillary Thermostat:

Model: WY85-C

Type: liquid expansion material: Ceramic

Fusing speed: Fast (F)

Volume type: Small

Shape type: Spiral

Standard type: European gauge

Rated voltage type: Safe voltage

Maximum voltage: 250 (V)

Holding current: 16 (A)

Maximum current: 16 (A)

Temperature range:-35°C~350°C

Tube material:Copper

Shell material: composite board / color zinc

Lifetime:100,000 cycles

Certificate: CE,TUV,UL,ROHS,CQC,ISD9001



Application:

It is mainly used for temperature control in home appliance industry (bath machine, drum washing machine, heater), electric heating equipment (stainless steel automatic water heater, electric fryer, grill, electric oven, food machinery, medical equipment), refrigeration industry (kitchen freezer, fresh-keeping cabinet, cold storage, ice maker, fish pond, cold drink machine, heater).
