Capillary Thermostat For Electric Heating Equipment
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of capillary thermostat for electric heating equipment in China, also supports custom service. Welcome to wholesale high quality capillary thermostat for electric heating equipment at competitive price from our factory.

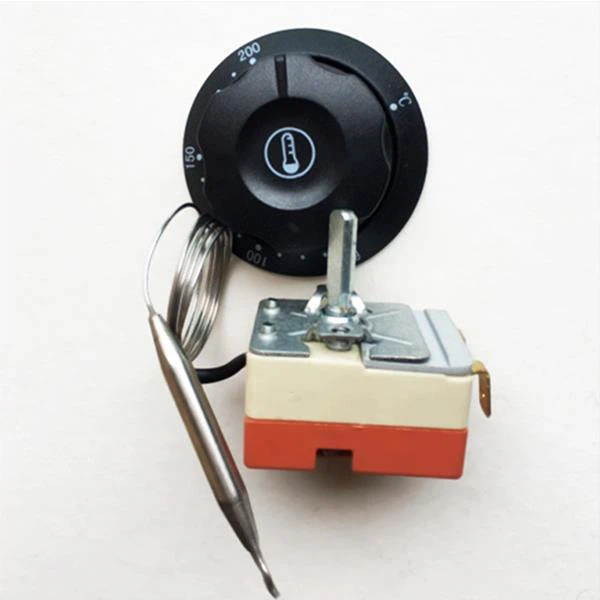

Capillary Thermostat for Electric Heating Equipment
When the temperature of the controlled object changes, the working fluid in the temperature-sensing part of the element will expand and contract accordingly (the volume of the working fluid), and the bellows connected with the part will expand or contract. shrink. Through the principle of lever, the switch can be turned on and off to achieve the purpose of constant temperature. Uses: Mainly used in the home appliance industry (shower, drum washing machine, heater, electric water heater), electric heating equipment (stainless steel automatic water boiler, embedded electric oven, electric fryer, food machinery, medical equipment), refrigeration industry (Kitchen refrigerator, fresh-keeping cabinet, cold storage, ice machine, fish pond, cold drink machine, heater) and other temperature control applications.
Technical Parameters:
Electrical performance: 16(2.5)A-250V～10(1.5)A-400V～
Disconnect temperature: according to user requirements, temperature design range (-35℃～320℃)
Product life: >100,000 times
Electric strength: 2000VAC/1min/0.5mA
Normal insulation resistance: ≥100MΩ
Contact resistance: ≤50mΩ
Moisture insulation resistance: ≥10MΩ
Temperature response rate: ≤1.0℃/min
Small current: 200mA
Precautions:
1. The user must put forward the order model and specifications according to the characteristics of their products
2. When the temperature controller is installed, the temperature sensing tube should be as close as possible to the surface to achieve the purpose of accuration.
3. Do not deform the tube during installation, so as not to affect its performance.
4. Do not allow conductive gases or conductive substances to enter it or contaminate the surface of it to avoid affecting the electrical insulation performance.
5. The M4 wire of the mounting bracket should not be too long, otherwise the performance of it will be damaged.
6. The switch box is a ceramic part of electrical appliances, so handle it with care to avoid damage.
7. The gross bending radius cannot be less than 5mm.
