Capillary Thermal Protector Thermostat Switch
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of capillary thermal protector thermostat switch in China, also supports custom service. Welcome to wholesale high quality capillary thermal protector thermostat switch at competitive price from our factory.

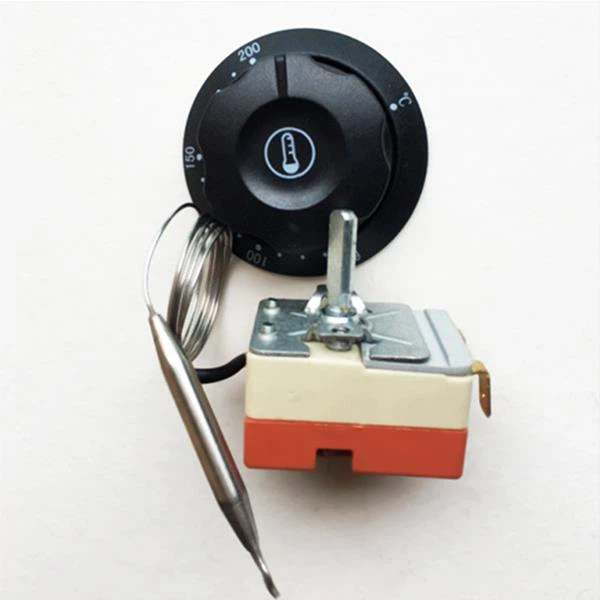

Capillary Thermal Protector Thermostat Switch

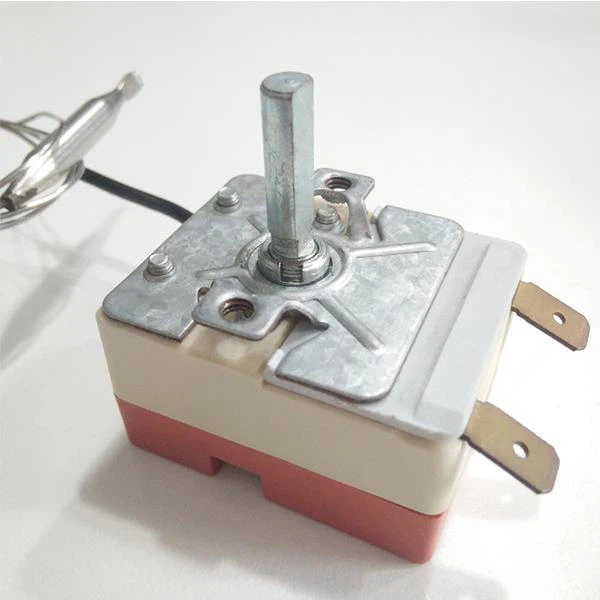

It is composed of temperature sensing rod, capillary tube, diaphragm and expansion conductor. When the temperature sensing rod is heated, the liquid medium in the temperature sensing rod is heated and expands. The expansion of the medium increases the internal pressure of the closed circuit system. The increase in pressure is converted into displacement through the diaphragm. When the displacement reaches a certain position, the relevant switch contacts of the circuit will be triggered. Open or close.
Features:
This model product has the advantages of simple operation and convenient use, and is widely used in various household electric heating appliances temperature control auxiliary parts. In addition, this series of thermostats also have more superior performance than other types of adjustable thermostats. The temperature adjustment range is large. Different on-off temperatures can be obtained by rotating the adjustment shaft to make it at different angles. The on-off temperature difference is small, the adjustment accuracy is high, the switch action is sensitive, and the service life is long.
Type: Liquid expansion type
Working voltage: 125V 250V 110V (V)
Switch type: temperature control switch
Overload current: 10A 12A 16A (A)
Action temperature: 0-250℃ (℃)
Life: 100000 (times)
Custom processing: Yes
Applicable industry:
Cold storage industry-refrigerated refrigerators, ice machines, commercial refrigerators, vending machines for cold and hot drinks, etc.;
Mechanical and electrical industry-wireless communication box (room), electromechanical box, elevator electromechanical room (heat dissipation and dehumidification control), etc.;
Electric appliance industry-water dispensers, water heaters, electric water heaters, washing machines, sauna rooms, incubators, rice steaming boxes, electric heaters, etc.;
Machinery and equipment-injection molding machine, mold temperature controller, oil temperature controller, dryer, soldering furnace, boiler, ultrasonic cleaning machine, packaging and sealing machine, etc.;
Food machinery-deep fryer, hot tea barrel, side dish holding table, electric oven, steaming charter, etc.;
Temperature adjustment-farming cultivation room, orchid room, greenhouse cultivation, etc.;
Others-water bed, cooling fan, electric heating pipe, waste oil burner (car paint room), etc.
