Capillary Temperature Switch
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of capillary temperature switch in China, also supports custom service. Welcome to wholesale high quality capillary temperature switch at competitive price from our factory.

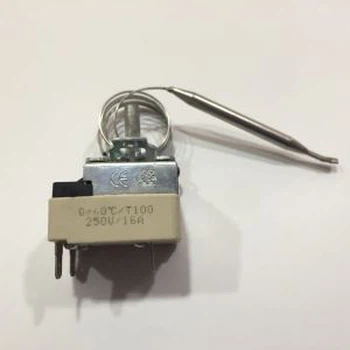

Capillary temperature switch of JAYE HEATER is a pressure response temperzture controller. It is widely used in commercial refrigerator, water heater ,stoves,drying or bake appliance and so on. you can amzing with the high quality and favorable price of the capillary temperature switch.

How to install:
1.The capillary between the sending bulb and the controller should not pass through an area where the temperature is lower than the control point and should avoid contact with other pipes.
2.When you are installing, the bending radius of the capillary is not less than 60mm, and the capillary is clamped with a tape every 300mm.
3.Turn the screw and the button of the adjusting screw (the positioning washer should be closed before turning the positioning washer) to set the temperature and differential temperature according to the value indicated by the scale.

The specification for your reference(we can provide the customized heating element)
Body temperature | Capillary Length
| Contact resistance | Temperature tolerance | Switch contact Capacity(voltage/Current rating) |
T120/T150 | 300-3000mm (can customized ) | </=100m | ±3°C, ±4°C, ±5°C, ±8°C, ±10°C, ±12°C | DC24V/250w AC110V/1000VA AC220V/1000VA AC380V/1000VA |

why you should choose us :
We are the best choice, we have a dedicated factory and senior engineers supervise the production process, as long as you choose us, we will do our best to meet your needs.
