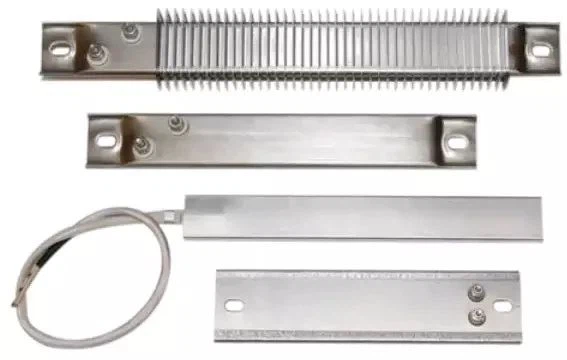

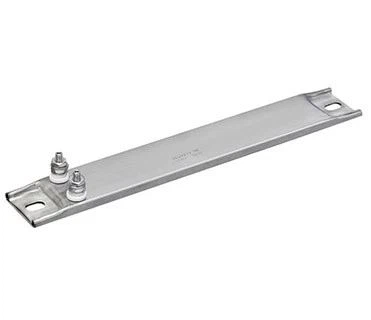

Mica Strip Heaters
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of mica strip heaters in China, also supports custom service. Welcome to wholesale high quality mica strip heaters at competitive price from our factory.

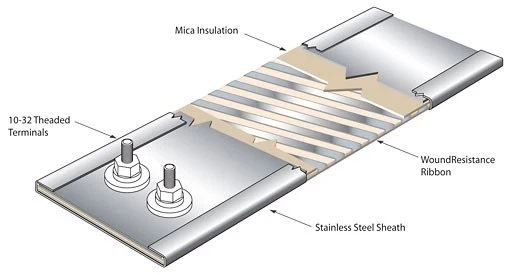

The mica strip heaters produced by Jaye use the good insulation performance of mica board (mica sheet) and its high temperature resistance. Mica board (sheet) as the skeleton and insulation layer, supplemented by galvanized sheet or stainless steel sheet for support and protection, and is equipped with With high-quality heating wire, the entire product has good heating and heat transfer performance.
Specifications (can be customized):
1. Insulation resistance: ≥100 MΩ
2. Withstand voltage: 1500V/1min
3. Temperature resistance: 600℃
4. Power deviation range: ±5%
5. Voltage ≤380V
6. Power 100~1000W
7. Working temperature -20~600℃
Features:
1. High heat transfer efficiency and fast heating
2. Ceramic construction for higher temperatures
3. Long serve life
4. Large selection of lengths, sizes and terminations
5. Low expansion characteristics
6. 3-Phase available
7. Distributed wattage available
