Silicone Rubber Heater For Battery Heating

If you can't start the car in the cold winter, it may be the cause of the battery. The cold climate greatly reduces the efficiency of chemical reactions in the battery and increases the internal resistance of the battery. These two factors are superimposed together, resulting in a decrease...
Chat Now

Product Details

If you can't start the car in the cold winter, it may be the cause of the battery. The cold climate greatly reduces the efficiency of chemical reactions in the battery and increases the internal resistance of the battery. These two factors are superimposed together, resulting in a decrease in the battery's starting power as the temperature decreases. Therefore, it is very important to preheat the battery in advance to realize its full potential.

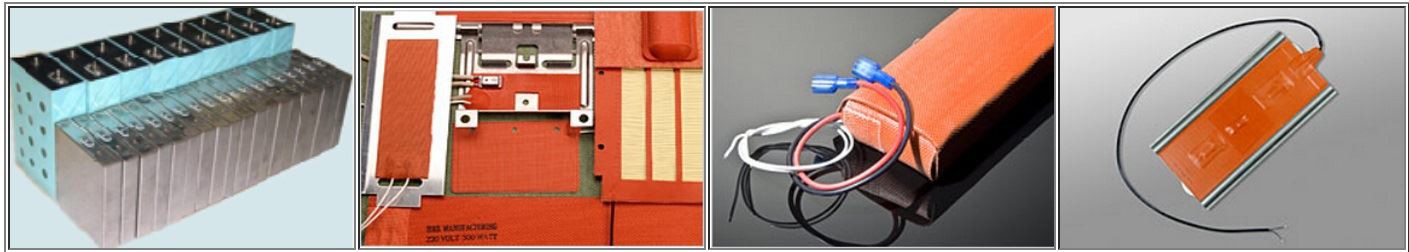

 电池加热器

The silicone rubber heater allows the battery to reach its full potential even in severe cold weather. It is made of etched alloy foil heating elements laminated in acid-proof silicone rubber sheet. It is available in 12V, 24V, 48V and 320V versions with a power plug. It is compact in size, soft and thin, and is suitable for heating batteries of most cars and trucks. Optional insulation layer to reduce heat loss.

Jaye Industry can customize battery heaters of other sizes and powers according to customer requirements. In order to avoid overheating, the power density of the battery heater generally does not exceed 0.2w / cm2. In addition, do not directly heat the battery incubator.

24 - LOGO

Technical specifications:

Rated voltage: 110Vac, 220Vac, 12Vdc

Rated power: 60w

Dimensions: 8.5 "x 5.5" (216mm x 140mm)

Etching type heating element

Acid-resistant silicone rubber

Optional insulation

Various plug specifications are available

For industrial batteries, Jaye also provide aluminum plate composite silicone rubber heaters or pressure sensitive adhesive backing for easy installation. In addition, various temperature control functions can be configured according to customer requirements.



 Application
