Silicone Rubber Heater Blanket

The flexible silicone heating blanket made by Jaye is a charged film with a standard thickness of 1.5mm. It uses nickel-chromium wire or a nickel-chromium foil with a thickness of 0.05mm~0.10mm engraved with a certain shape. Both sides of the heating part are wrapped with thermally conductive...
Chat Now

Product Details

The flexible silicone heating blanket made by Jaye is a charged film with a standard thickness of 1.5mm. It uses nickel-chromium wire or a nickel-chromium foil with a thickness of 0.05mm~0.10mm engraved with a certain shape. Both sides of the heating part are wrapped with thermally conductive and insulating materials, and are completed in high-temperature compression molding and aging heat treatment.

 Production Instruction of silicone heater


Features of silicone rubber heater blanket
1.Maximum temperature resistant of insulant: 300°C
2.Maximum Operating Temperatures: 250 °C
3.Power deviation: 5%
4.Insulating resistance: ≥ 5 MΩ
5.Compressive strength: 1500V/5S
6.Size:any size, by size
7.High strength, Fast heat diffusion, Uniform heat transfer, Directly heat objects on high thermal, efficiency long service life, work safe

 silicon rubber hotplate drawing



Processing technology

The silicone rubber heater blanket made by Jaye consists of high temperature resistant wires wound on a glass fiber core to increase support and flexibility, while still allowing expansion and contraction during heating and cooling. The element is designed to provide maximum heat transfer and temperature uniformity, and is arranged in a computer-designed pattern. After arranging the components, vulcanize them between two pieces of silicone rubber until they become one piece. The silicone rubber heating blanket also has a layer of glass fiber to increase strength and tear resistance. Use the same vulcanization process to connect the power cord and power cord set to the heater winding.

 1111



Product Usage

These multi-functional industrial-strength heaters have flexibility, moisture, chemical resistance and robustness, so they can be used on a variety of surfaces and environments. They are easy to install on all equipment from laboratory containers to large cylinders and tanks, and are ideal for solving viscosity, antifreeze and process control heating applications.

The blanket with control provides more convenience and functionality through its accompanying adjustable thermostat control device. The metal surface model can be adjusted between 50 and 425°F without other controls.

The unique grounded heating element is sandwiched between two layers of super strong 20mil glass fiber reinforced silicone rubber. Due to the power density of 2.5 W/in², the metal surface heater has a faster heating rate.



App

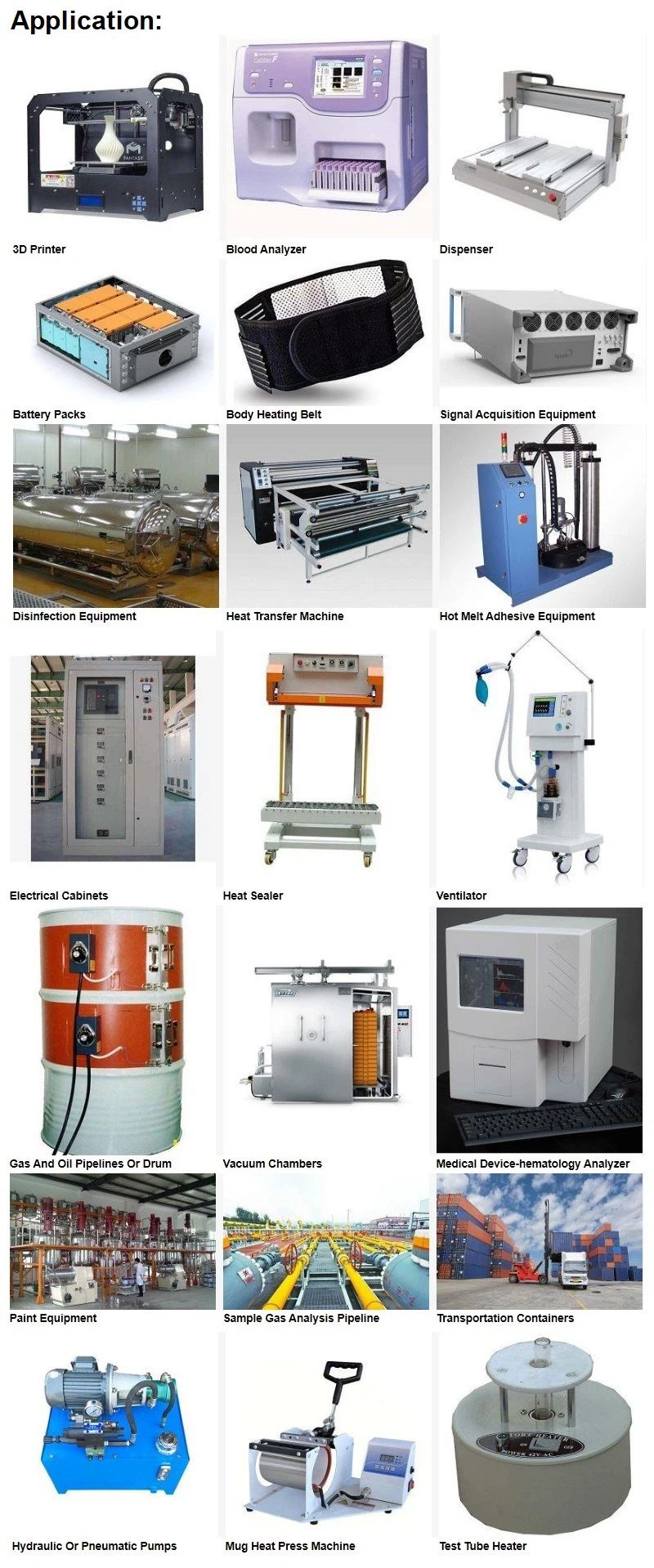

Application-Silicone Rubber Heater

Hot Tags: silicone rubber heater blanket, China, manufacturers, suppliers, factory, wholesale, customized, electric, high quality

Packing & Delivery

Quality-Silicone Rubber Heater
